Specification
Brand : Murphy by Enovation Controls

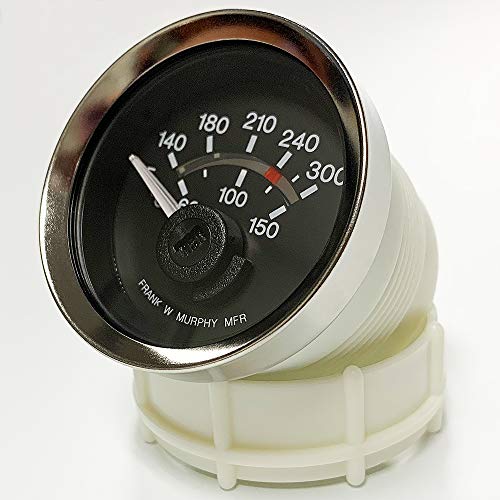

BulletPoint : This 12 Volt 2-1/4" EGS21T-300-12 Electric Temperature Swichgage has a range of 140-300°F., an impact and weather resistant polyester case, a polycarbonate lens and a stainless steel bezel. This gage features a spin-on gage clamp that will accommodate panel mounting up to 3/4" thick. A plug-in wire connector is provided for positive and easy connection.

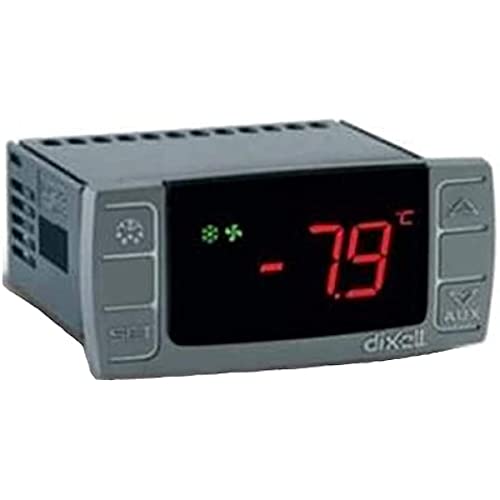

BulletPoint1 : XR06CX is for applications on medium or low temperature ventilated refrigerating units.With FC parameter it can be selected the fans functioning FC=cn will switch ON and OFF with the compressor and not run during defrost FC=on fans will run even if the compressor is off, and not run during defrost After defrost, there is a timed fan delay allowing for drip time, set by means of the Fd parameter.
BulletPoint2 : FC=cy fans will switch ON and OFF with the compressor and run during defrost FC=oY fans will run continuously also during defrost. An additional parameter FS provides the setting of temperature, detected by the evaporator probe, above which the fans are always OFF. This is used to make sure circulation of air only if his temperature is lower than set in FS.
BulletPoint3 : FANS AND DIGITAL INPUT When the digital input is configured as door switch iF=do, fans and compressor status depends on the dC parameter value: dC=no normal regulation; dC=Fn fans OFF; dC=cP compressor OFF; dC=Fc compressor and fans OFF. When rd=y, the regulation restart with door open alarm
BulletPoint4 : SAFETY PRECAUTIONS Check the supply voltage is correct before connecting the instrument. Do not expose to water or moisture: use the controller only within the operating limits avoiding sudden temperature changes with high atmospheric humidity to prevent formation of condensation. Warning: disconnect all electrical connections before any kind of maintenance.
BulletPoint5 : Fit the probe where it is not accessible by the End User. The instrument must not be opened. In case of failure or faulty operation send the instrument back to the distributor or to Dixell S.r.l.(see address) with a detailed description of the fault. Consider the maximum current which can be applied to each relay (see Technical Data).
BulletPoint6 : Model: AW-SYL-2352P (12V SSR output version)
Color : Green
ExternallyAssignedProductIdentifier : 4711635940567
ExternallyAssignedProductIdentifier1 : 0716709827977
ExternallyAssignedProductIdentifier2 : 716709827977
IncludedComponents : Replacement Part
ItemName : Murphy by Enovation Controls EGS21T-300-12 Electric Temperature Swichgage (10701304)
ItemPackageDimensions_Height : 20.3962 centimeters
ItemPackageDimensions_Length : 9.7028 centimeters
ItemPackageDimensions_Width : 9.906 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : temperature-controllers
Manufacturer : Murphy by Enovation Controls
Material : Polyester
ModelNumber : 550005663
NumberOfBoxes : 1
NumberOfItems : 1
PackageLevel : unit
PartNumber : EGS21T-300-12 (10701304)
PowerSourceType : ac/dc
ProductDescription : This 12 Volt 2-1/4" EGS21T-300-12 Electric Temperature Swichgage has a range of 140-300°F., an impact and weather resistant polyester case, a polycarbonate lens and a stainless steel bezel. This Electric Swichgage takes the electric gage to new heights with proven state of the art technology and reliability. Utilizing Murphy's proven EG Air Core movement design, the EGS21T-300-12 offers technological improvements in overall operation, lighting, accuracy in reading, wiring and installation. This rugged gage is environmentally sealed and exceeds the rigid SAE J1810 standard for reliable operation under tough off-road and power unit environments. Corrosion-resistant materials are used throughout, making this instrument highly desirable for marine and other environmentally sensitive applications. Soft, non-glare dial and pointer illumination is provided by a "cold light" LED and when powered the white lettering and clear pointer become soft red. Mirror band eliminates parallax reading error when the pointer and its reflection are aligned. The EGS21T-300-12 Swichgage also has an adjustable set point PowerHall Effect switch output for operating alarms or equipment shutdown. The trip point is adjustable over 90% of the scale and has a set point indicator visible from the gage face. This gage features a spin-on gage clamp that will accommodate panel mounting up to 3/4" thick. A plug-in wire connector is provided for positive and easy connection. Now you can have both the ease of electric gage installation, and the reliable switching of Murphy's famous Swichgage instrument.
ProductSiteLaunchDate : 2020-01-22T23:13:34.003Z
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 0.4233
Voltage : 230 volts
