Specification
Brand : TAITANGEL
BulletPoint1 : proximity switch
BulletPoint2 : 1Set 12V 24V Measuring Gauge 4 Digital Blue/Green/Red LED Tachometer RPM Speed Meter 10-9999RPM Hall Proximity Switch Sensor NPN
BulletPoint3 : Item weight: 0.11 pounds
BulletPoint4 : Material: paper
BulletPoint5 : [Adjustable Laser Gear] Adjustable laser power (high / low), adapting the far / near distance requirement to protect user' s eyes.
Color : B
ExternallyAssignedProductIdentifier : 9485563209892
ExternallyAssignedProductIdentifier1 : 0764946973681
ExternallyAssignedProductIdentifier2 : 764946973681
ItemName : 1Set 12V 24V Measuring Gauge 4 Digital Blue/Green/Red LED Tachometer RPM Speed Meter 10-9999RPM Hall Proximity Switch Sensor NPN (Color : B)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : industrial-tachometers
Manufacturer : TAITANGEL
ModelName : TAITANGEL
ModelNumber : TAITANGEL
NumberOfItems : 1
PartNumber : TAITANGEL
ProductDescription : proximity switch
Feature
.Anti-jamming capability.
.Have good stability, high measurement precision.
.This digital display counter has bright LED light, high accuracy, good stability, and easy installation.
.The meter retains the number automatically when power off,The working power supply: AC/DC 8-24V,30mA.
.Input pulse signal:NPN/PNP collector open circuit,contact switch,contactless switch,level pulse.
.Good product stability, strong anti-interference and is ability suitable for display of various digital instruments
Specification
-Power requirement: DC 8-15v
-Measure range: 10-9999RPM
-Clear zero: Automatic
-Display refresher rate: 3 Times/Sec
-Measure indication: RPM<;5000,±2;RPM>5000,±3
-Display: Blue&Green 056 LED
Response frequency 100HZ
-Tachometer dimension: 72x36x20mm
-Panel cutout Dimension: 68x33mm
-Sensor Dimension: 12x55mm
-Proximity output current: 200mA
-Sensor wiring: brown-Power+;blue-Power-;black-signal
-Operating temperature: 0 to 50°C.
Hall NPN sensor
Appearance: M12mm cylinder
Output: NPN three wire normally open type
The detection distance: 10 mm
Supply voltage: 5-24VDC,6-36VDC
Output current: 200 mA
Objects can be detected: permanent magnets
Switching frequency: 320 KHZ
Wiring:brown-Power+,blue-Power-,black-signal
Note
Please allow 1-2mm errors due to manual measurement.
Due to the difference between different monitors, there are color differences, please take the real product as the standard.
Package Included

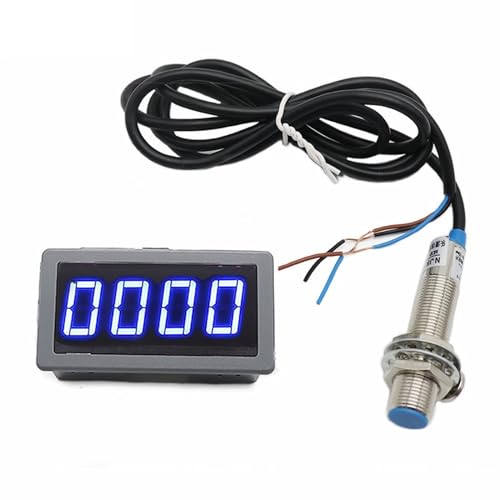

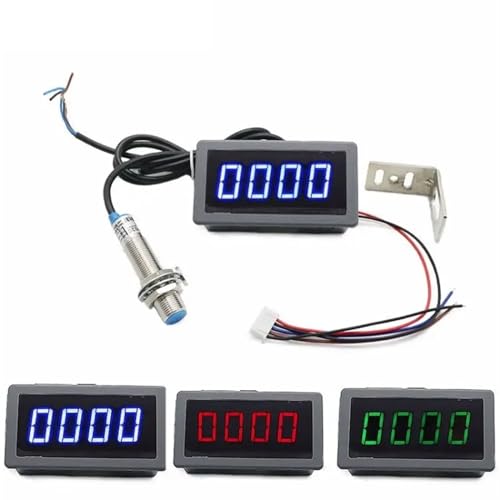

1 x Tachometer RPM Speed Meter
1 x Hall Proximity Switch Sensor NPN
1 x Magnet
ProductSiteLaunchDate : 2024-02-24T06:25:01.962Z
Size : One Size
Style : Portable
UnitCount : 1
