Specification
Brand : QTSEGSEE
BulletPoint1 : Industrial Motors

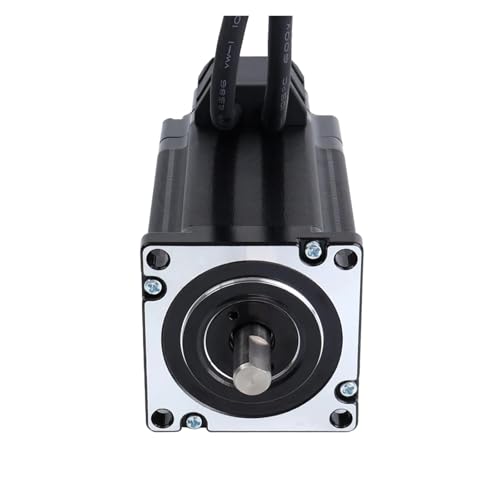

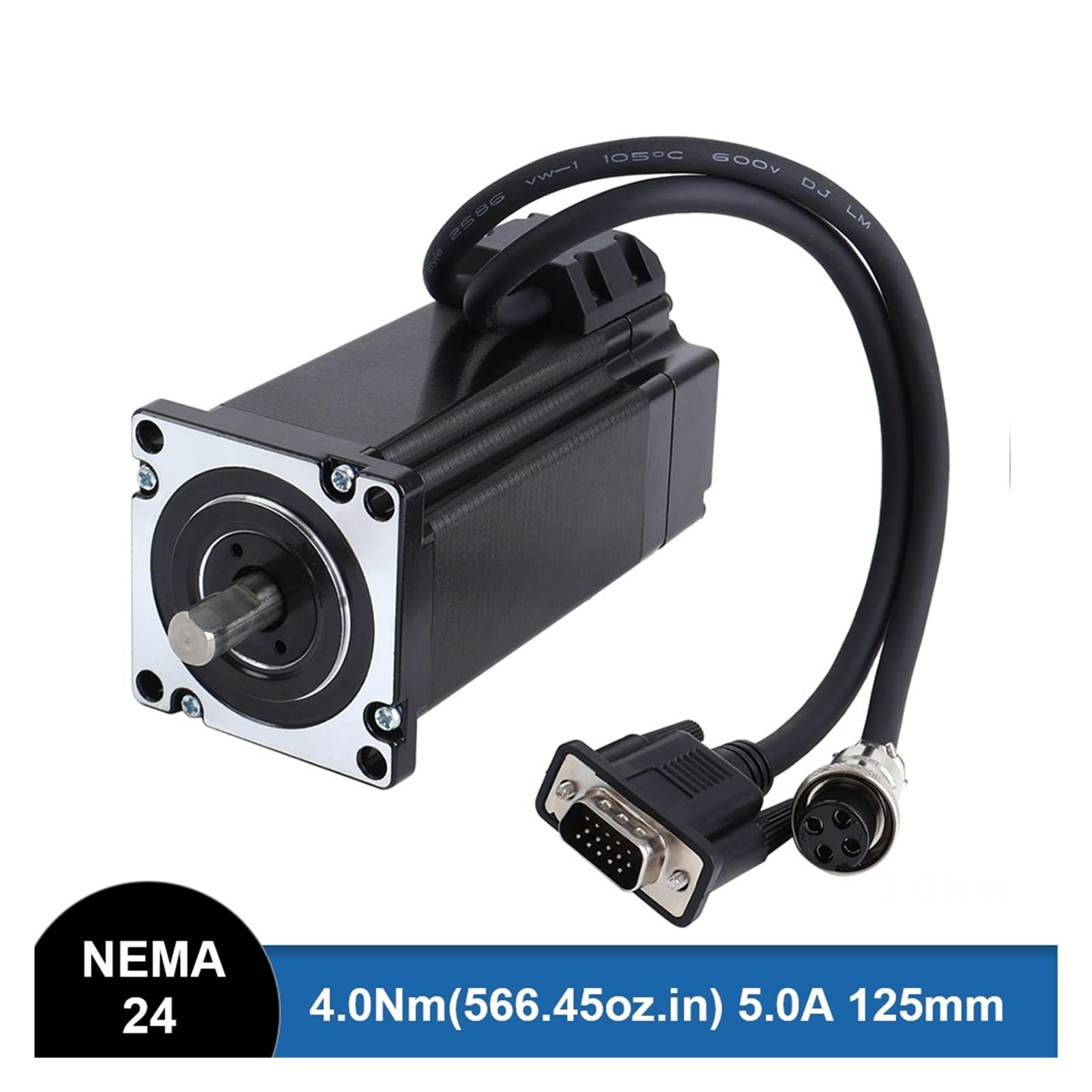

BulletPoint2 : Nema 24 Stepper Motor 4.0Nm Servo Motor Encoder 1000PPR (4000CPR) 5A 2 Phase 4 Leads 10mm Shaft
Color : One Color
Department : Unisex Adult
ExternallyAssignedProductIdentifier : 9010064769714
ItemName : Nema 24 Stepper Motor 4.0Nm Servo Motor Encoder 1000PPR (4000CPR) 5A 2 Phase 4 Leads 10mm Shaft
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : switch-encoders
Manufacturer : QTSEGSEE
ModelName : QTSEGSEE
ModelNumber : QTSEGSEE
NumberOfItems : 1
PartNumber : QTSEGSEE
ProductDescription : Industrial Motors
Manufacturer Part Number: 24HS40-5004D-E1000
Number of phases: 2
Step angle: 1.8 degrees
Holding torque: 4.0 Nm (566.45oz.in)
Rated current/phase: 5.0A
Phase resistance: 0.6 ohms ± 10%
Inductance: 2.6mH±20% (1KHz)
Frame size: 60 x 60mm
Body length: 125mm
Shaft diameter: 10mm
Shaft length: 21mm
Keyway shaft length: 15mm
Lead length: 300mm
Weight: 1.62kg
Output circuit type: differential type
Encoder type: optical incremental
Encoder resolution: 1000PPR (4000CPR)
Output signal channel: 2 channels
Minimum supply voltage: 4V
Maximum power supply voltage: 5V
Output current: 100mA
Output high voltage: 5V
Output low voltage: 4.5V
Maximum output frequency: 60kHZ
pin
1 2 3 4
engine
A+
one-
B+
B-
pin
2 3 1 13
11
12
encoder
voltage control circuit
external power supply
EA+
EA-
EB+
EB-
==========
Current/Phase: 5.0 A
Holding torque: 4.0 Nm (566.45oz.in)
Step angle (degrees): 1.8 degrees
Stage: 2
Model: 24HS40-5004D-E1000
Type: Mixed
Certification: ce, ROHS
Origin: Mainland China
Shaft diameter: 10mm
Shaft length: 21mm
Keyway shaft length: 15 mm
ProductSiteLaunchDate : 2024-10-24T03:40:41.622Z
Size : One Size
UnitCount : 1
UnspscCode : 26101200
