Specification
Brand : MGT
BulletPoint : 1024 PPR
BulletPoint1 : Encoders produce incremental signals
BulletPoint2 : Incremental encoders output type are quadrature
BulletPoint3 : simple structure, and easy installation
BulletPoint4 : 12PPR（signal A,B）；16PPR（signal A,B）；20PPR（signal A,B,Z）
BulletPoint5 : BIDIRECTIONAL
ExternallyAssignedProductIdentifier1 : 0783971927643
ExternallyAssignedProductIdentifier2 : 783971927643

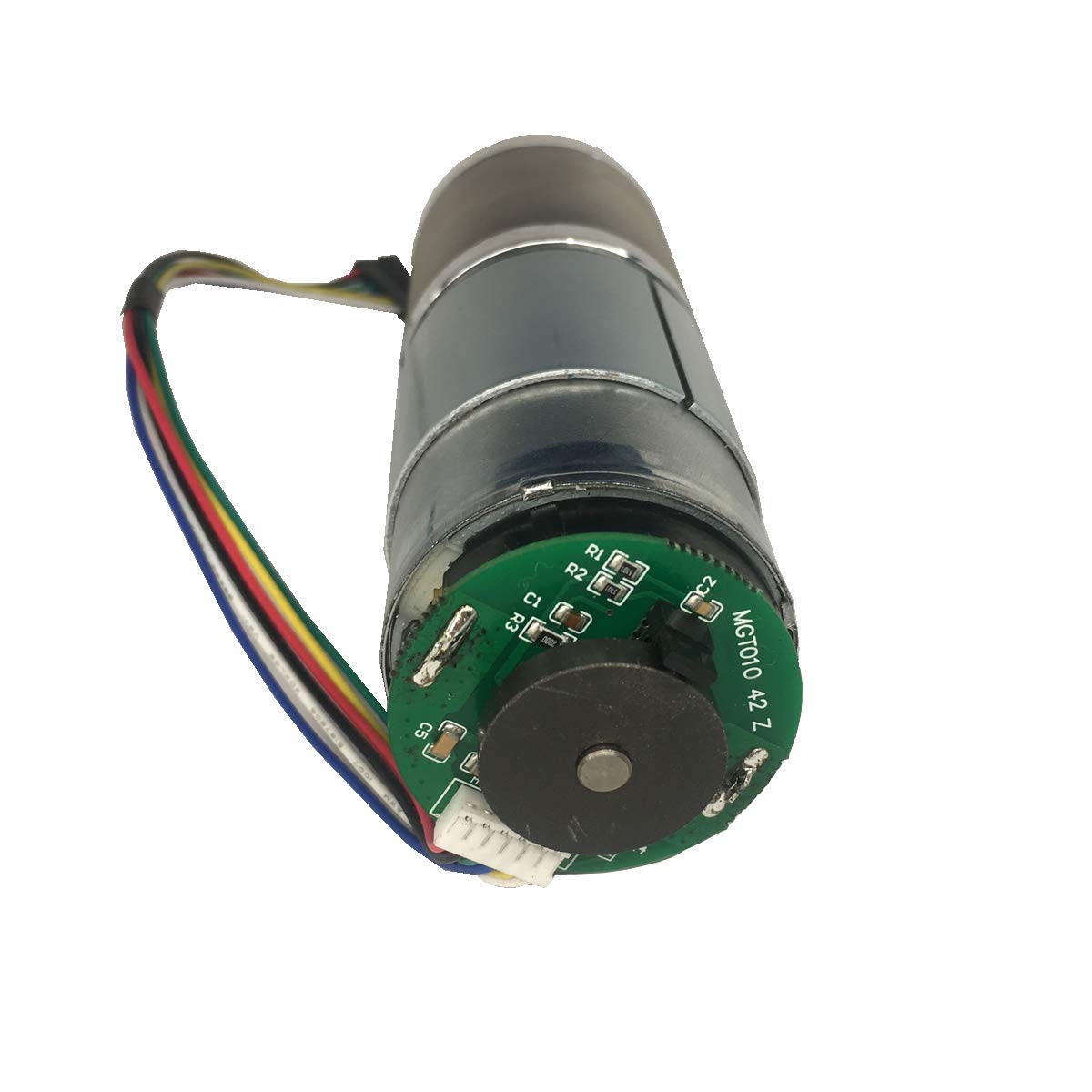

ItemName : MGT010-42Z Motor Encoder Incremental magnetic encoder 12/16/20PPR (20PPR)
ItemPackageQuantity : 1
ItemTypeKeyword : switch-encoders
Manufacturer : HANGZHOU　MAGNET　TECHNOLOGY　CO., LTD.
Material : copper
ModelNumber : E60H20-1024-3-T-24
NumberOfItems : 1
PartNumber : GmbH D-78647
ProductDescription :

Sales information: 12PPR and 16PPR are delivered in theform of welding line,

                               20PPR isdelivered in the form of connector (including line)，with z-phase

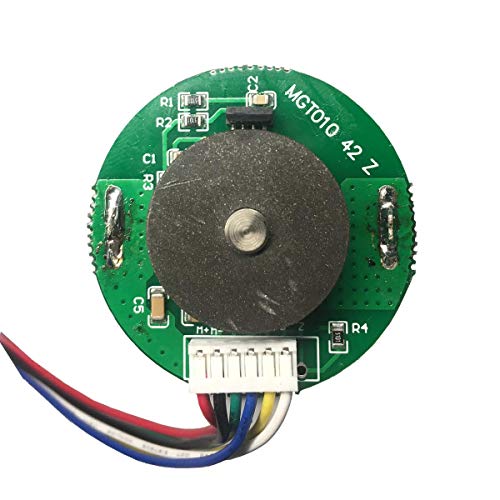

Specification:PCB Outer Diameter Dimension: 40mm; Bore:7mm; Thickness:1mm;

                      Magneticring Diameter:18mm; Bore:5mm ;Thickness:4mm;

                      Pulse Count:12/16/20ppr;OutputType:square wave double phase;

OperatingTemperature Range:-40℃~85℃

 Feature:Simple structure,and easy installation; Dual quadrature outputs; Non-contact, no wear, longservice life;Superior temperature stability;High sensitivitts a wide voltagerange

 Wiring Diagram: Pin1- B signal; Pin2- A signal; Pin3- Encoder power+; Pin4- Encoder power-; Pin5- Motor power+; Pin6- Motor power-; Pin7- Z signal (only 20PPRwith Z phase)

 Tips: For theaccuracy specified the center  line ofthe magnet needs to be square to  thechip within 2° and aligned within the center of the board ±0.1 mm (mid point between the 2 mounting holes).

Quality Guarantee: Allquality problems, pls send us e-mail firstly, we will give you satisfactorysolution, and we're concentrating on our constant improvement of productquality and customer service

ProductSiteLaunchDate : 2020-07-26T08:12:14.101Z
Style : 20PPR
UnspscCode : 39120000
