Specification
Brand : GOWE
BulletPoint : Price For: Pack of 100 Supply Voltage Min: - Supply Voltage Max: - No. of Channels: 2Channels Rotational Speed Max: 60rpm Product Range: PEC11R Series RoHS Phthalates Compliant: To Be Advised
BulletPoint1 : Product Description; Multi-lap dual-output: 4~20mA linear output and RS485digital output ; More flexible multifunctional intelligent absolute encoder;Measuring angle, length and speed; Absolute digital encoder, built-in signal conversion, dual-output of 4~20mA linear and RS485digital output, easy to connect a variety of devices.EasyPro software, multi-purpose, multi-functional, directly corresponding single lap angle, rotate and translational velocity measurement.
BulletPoint2 : 4 mA~20mA corresponding set value and fine-tuning; direction set; external reset line setting the preset positions, easy to install, no need to find zero. Internal absolute code disc, all digital meter, no temperature and mechanical impact signal, minimal zero-point drift signal interference.Characteristic parameters; Operating voltage; 10...30Vdcpolarityprotection; Current consumption; <60mA (24Vdc) no-load; Output signal; 4 ~20mA, RS485,
BulletPoint3 : can be setthelength, angle, speed ofapplicationoutput;Linear resolution; 1/4096FS; Continue lap NO.1~4096 laps; Duplicate precision Repeatability ¡À 2BIT (the actual precision and installation precision shaft concentricity related); EasyPro; Address can be set, communication baud rate setting (9.6K~11.52K), RS485 signal connection PLC; RS485 signal turn RS232 or USB to computers, do EasyPro smart set Signal adjustment;4mA output fine-tuning, 20 mA output fine-tuning;
BulletPoint4 : direction can be set; preset location, external reset (for example: external zero).Operating temperature; -25 to 80 Celsius Programming temperature range: 0Celsius~70Celsius; Storage temperature; -40 to 80 Celsius;Protection degree; housing IP67, shaft IP65; Shock and vibration; 20g, 10 ~ 2000Hz; 100g, 6ms; Allowed speed; 2400 rev / min;Connection cable; 1 m shielded cable radial side (the other forms can be ordered); Shape features; metal sealed housing, sealed double-bearing structure;
BulletPoint5 : widely used in cylinders testing machines
ExternallyAssignedProductIdentifier1 : 0707454296019
ExternallyAssignedProductIdentifier2 : 707454296019

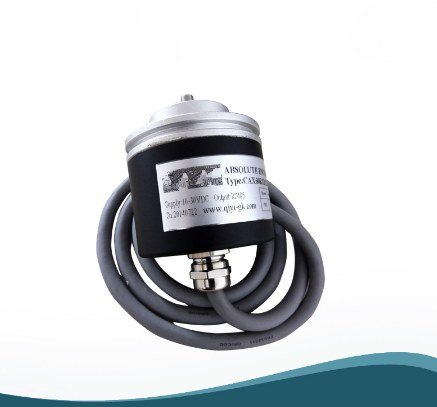

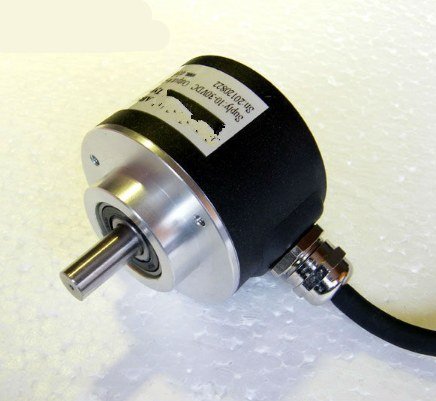

ItemName : GOWE Encoder Belt Hollow Shaft Absolute 4-20mA and RS485 Dual Output Multi-Turn Rotary Encoder
ItemPackageDimensions_Height : 10 centimeters
ItemPackageDimensions_Length : 20 centimeters
ItemPackageDimensions_Width : 8 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : switch-encoders
Manufacturer : Gowegroup
Material : metal
ModelNumber : PEC11R-4115F-S0018
NumberOfItems : 1
PartNumber : GWE-20005523
PowerSourceType : Corded Electric
ProductDescription : Product Description; Multi-lap dual-output: 4~20mA linear output and RS485digital output ; More flexible multifunctional intelligent absolute encoder;Measuring angle, length and speed; Absolute digital encoder, built-in signal conversion, dual-output of 4~20mA linear and RS485digital output, easy to connect a variety of devices.EasyPro software, multi-purpose, multi-functional, directly corresponding single lap angle, rotate and translational velocity measurement.
ProductSiteLaunchDate : 2017-09-24T02:10:02.802Z
Style : Digital
UnspscCode : 41113600
