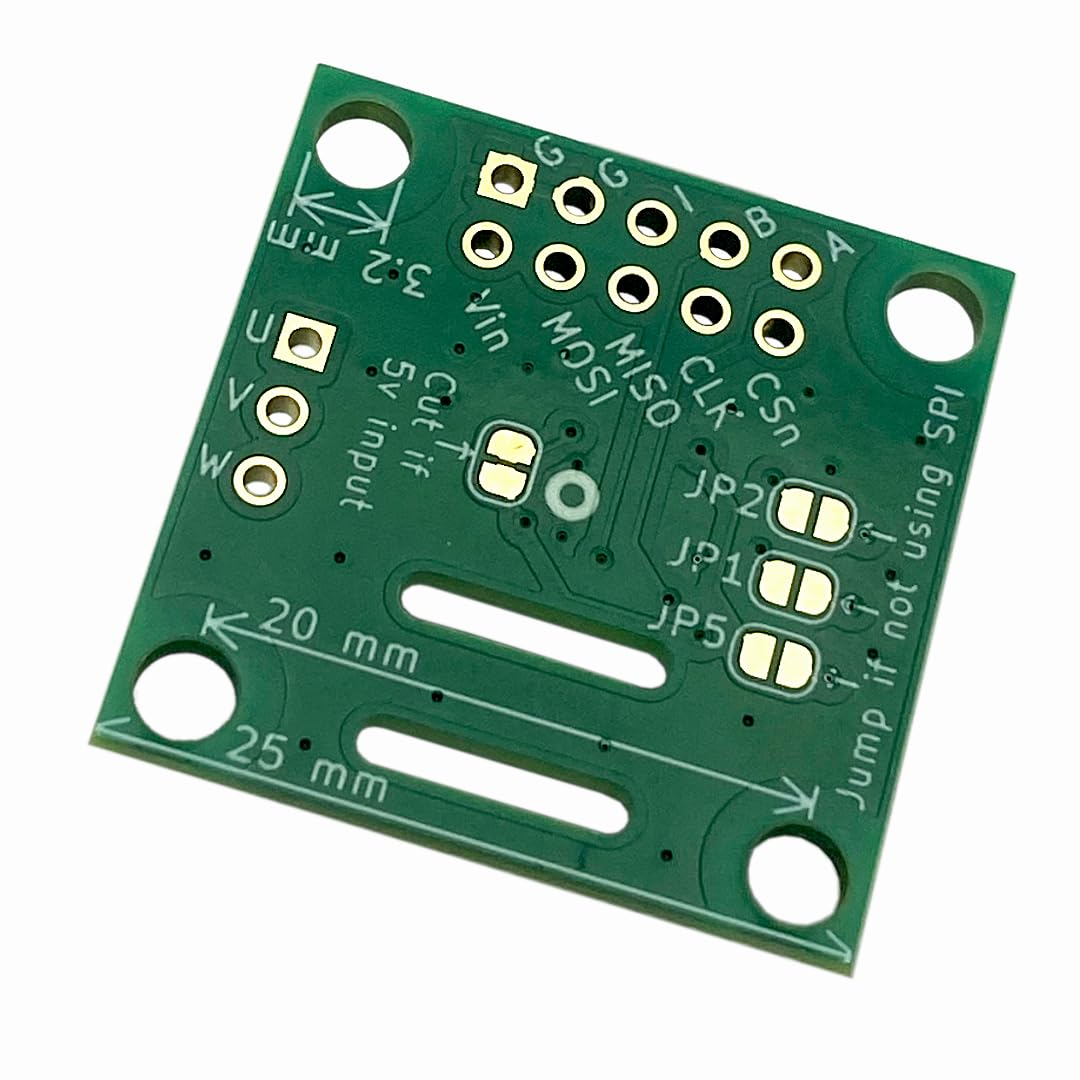

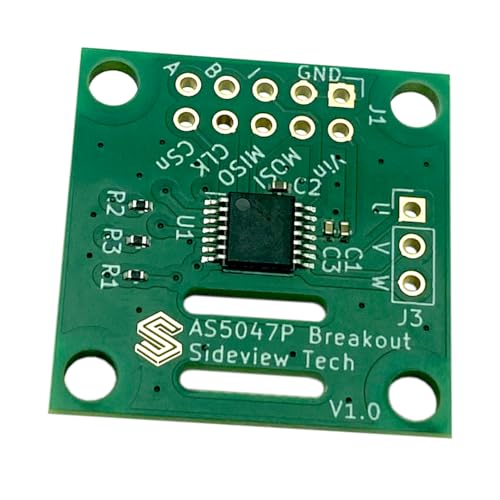

AS5047P Magnetic Rotary Position Sensor/Encoder Breakout Board Module, SPI/ABI/UVW Outputs, 3.3V 5V Arduino Compatible

AS5047P Magnetic Rotary Position Sensor/Encoder Breakout Board Module, SPI/ABI/UVW Outputs, 3.3V 5V Arduino Compatible

Imported from USA | Ships in 10 working days

5% instant discount on non COD

1

₹ 6200/-

The price at cart2india.com is inclusive of custom duties, GST, freight forwarding and other charges.

Proceed to Pay

Free Shipping across India. Powered by BlueDart

Product Information


Specification
Brand : Sideview Tech
BulletPoint1 : High-Precision Encoder: AS5047P IC for accurate 14-bit rotary sensing.
BulletPoint2 : Contactless Measurement: Magnetic sensing for wear-free operation with included magnet.
BulletPoint3 : Supports SPI, ABI, UVW, and PWM outputs.
BulletPoint4 : Compatible with Arduino as well as VESC & ODrive motor controllers. Compatible 3.3V and 5V systems.
BulletPoint5 : Resource repository with datasheets, code, and CAD models for the board and mounting brackets. Search "sideview-as5047p" on Github.
BulletPoint6 : High quality PCB with lead-free solder and ENIG (gold-plated) pads.
Color : Green
IncludedComponents : AS5047P module, sensor magnet, right-angle header pins
ItemName : AS5047P Magnetic Rotary Position Sensor/Encoder Breakout Board Module, SPI/ABI/UVW Outputs, 3.3V 5V Arduino Compatible
ItemPackageDimensions_Height : 9.7028 centimeters
ItemPackageDimensions_Length : 3.4036 centimeters
ItemPackageDimensions_Width : 5.6896 centimeters
ItemShape : Square
ItemTypeKeyword : switch-encoders
Manufacturer : Sideview Tech
Material : FR-4
MaximumSupplyVoltage : 5 volts
ModelNumber : AS5047P
OutputType : SPI, ABI, UVW, PWM
PartNumber : AS5047P
ProductDescription : This breakout board features the AS5047P, a high-resolution magnetic rotary position sensor for precise angle measurement. It comes complete with the required sensor magnet, making setup easy and straightforward. Ideal for applications requiring accuracy and high-speed data output, this board includes accessible pin headers for simple connection to various microcontroller platforms. Perfect for hobbyists, developers, and engineers seeking reliable rotational tracking in robotics, automation, and more. Easily compatible with brushless motor controller platforms like VESC and ODrive.
ProductSiteLaunchDate : 2024-10-31T00:03:44.524Z
SpecificUsesForProduct1 : motor control
SpecificUsesForProduct2 : robotics
SpecificUsesForProduct3 : precision angle sensing
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 41111900
UpperTemperatureRating : 125 degrees_celsius
