Specification
AgeRangeDescription : adult
Brand : Sonew
BulletPoint1 : AS5048 provides PWM output and SPI or I2C interface to provide absolute angle measurement for the microcontroller. In the mechanical designing, there is no need to consider the exact pairing of the initial 0 position of the chip and the magnetic poles of the magnets it uses. Instead, the solution is: the 0 position can be programmed into the assembly through simple SPI or I2C commands (no special programming equipment). Memory inside AS5048.
BulletPoint2 : AS5048 also has a very high operating tolerance, including the deviation of the center position between the chip and the paired magnet, the deviation of the air between the chip and the paired magnet, and the temperature change between -40°C and +150°C.
BulletPoint3 : The product is featured with 14-Bit position sensor digital angle (interface) and pulse width modulation output.
BulletPoint4 : The device is suitable for shaft applications where a simple two-pole magnet rotates the sensor IC or below and the 0 position can be programmed into the device with simple SPI commands. The absolute magnetic angular position resolution is 14 bits = 16384 for position measurement, and each revolution is a serial interface (SPI) with digital values.
BulletPoint5 : as5048a is a 14-bit position sensor (formerly called encoder) for absolute angle measurement and PWM (= pulse width modulation) at 360 degree based on non- magnetic sensor technology full-rotation output
Color : A
ExternallyAssignedProductIdentifier : 7551505521987

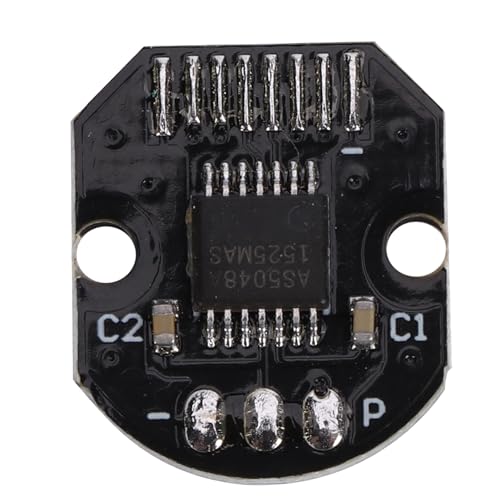

ItemName : Accurate PWM Controller, Electric Components, Shaft Applications PWM for Absolute Angle Measurement Microcontroller
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 12 centimeters
ItemPackageDimensions_Width : 7 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : switch-encoders
Manufacturer : Sonew
ModelName : Sonew29kua0gf4s
ModelNumber : Sonew29kua0gf4s
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : Sonew29kua0gf4s
ProductDescription : 1. The product is featured with 14-Bit position sensor digital angle (interface) and pulse width modulation output.
2. as5048a is a 14-bit position sensor (formerly called encoder) for absolute angle measurement and PWM (= pulse width modulation) at 360 degree based on non- magnetic sensor technology full-rotation output
3. The device is suitable for shaft applications where a simple two-pole magnet rotates the sensor IC or below and the 0 position can be programmed into the device with simple SPI commands. The absolute magnetic angular position resolution is 14 bits = 16384 for position measurement, and each revolution is a serial interface (SPI) with digital values.
4. AS5048 provides PWM output and SPI or I2C interface to provide absolute angle measurement for the microcontroller. In the mechanical designing, there is no need to consider the exact pairing of the initial 0 position of the chip and the magnetic poles of the magnets it uses. Instead, the solution is: the 0 position can be programmed into the assembly through simple SPI or I2C commands (no special programming equipment). Memory inside AS5048.
5. AS5048 also has a very high operating tolerance, including the deviation of the center position between the chip and the paired magnet, the deviation of the air between the chip and the paired magnet, and the temperature change between -40°C and +150°C.
6. The AS5048 magnetic encoder can provide more accurate measurement than the previous Austrian microelectronics magnetic encoder products. Its 14-bit measurement analog front end provides measurement resolution as low as 0.0219 degrees. Through the linearization and averaging processing of the microcontroller, the angle measurement can be accurate to 0.05 degrees.

Spec:
Item Type: Magnetic encoderResolution: 14-Bit full-scale resolution
Angle Accuracy: 0.05°
Power Supply Voltage: 5V DC
Material: Synthetic paperboard


ProductSiteLaunchDate : 2024-09-26T13:49:12.832Z
Size : One Size
UnitCount : 1
UnspscCode : 26111700
WarrantyDescription : Manufacturer warranty for 90 day
