Specification
Brand : WENGART
BulletPoint : Belkin 1-socket Wall Mount Surge Suppressor - Receptacles: 1 X Nema 5-15r - 885j
BulletPoint1 : This device surge protector is made of high-quality flame-retardant material, which can withstand long-term use and provide reliable protection, use this surge protector to protect your DC power system from lightning strikes and overvoltage.
BulletPoint2 : Simple wiring anyone can do to connect the arrester to your circuit in minutes. The standard 35MM rail and the circuit breaker in the distribution box can be installed quickly and easily, and the detachable components make it easy to install and replace at work.
BulletPoint3 : Our indoor surge protection low voltage arresters are ideal for protecting your electrical system and load electrical equipment from lightning and transient overvoltages.
BulletPoint4 : Our DC surge arresters are equipped with advanced short circuit technology to ensure protection against overcurrent, overheating and temperature regulation issues, putting safety first
BulletPoint5 : Our DC surge arresters have a response time of less than 25ns(T2) for fast and effective surge protection with low residual voltage and reliable performance
BulletPoint6 : With 20kA nominal discharge current In and 40kA maximum discharge current Imax, this lightning surge protector is durable.
Color : 1000V_2P20KA
CompatibleDevices : High-Power Electrical Devices
ExternallyAssignedProductIdentifier1 : 077348560886
ExternallyAssignedProductIdentifier2 : 043180140890
ExternallyAssignedProductIdentifier3 : 0077348560886
ExternallyAssignedProductIdentifier4 : 0043180140890
ExternallyAssignedProductIdentifier5 : 00043180140890
ItemDisplayDimensions_Height : 3 inches
ItemDisplayDimensions_Length : 8 inches
ItemDisplayDimensions_Width : 6 inches
ItemDisplayWeight : 0.45 pounds

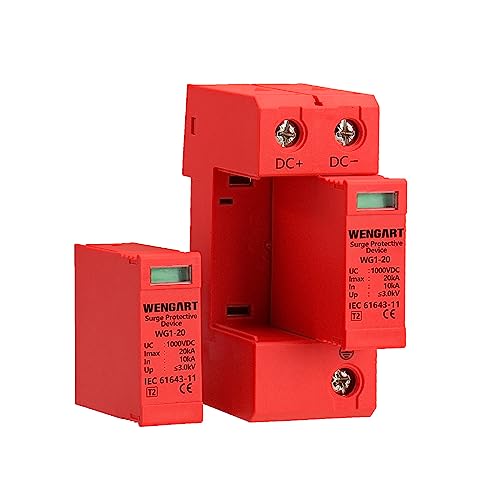

ItemName : Wengart Surge Protective Arrester Device,DC1000V 2Pole 10~20kA 36mm DIN Rail Mount,Low Voltage Arrester Device for Lightning Protection Power Distribution and Control Appliances
ItemPackageDimensions_Height : 9.906 centimeters
ItemPackageDimensions_Length : 4.2926 centimeters
ItemPackageDimensions_Width : 7.2898 centimeters
ItemPackageQuantity : 1
ItemShape : Rectangle
ItemTypeKeyword : electronic-surge-protectors
Manufacturer : WENGART ELECTRIC CO.,LTD
Material : Plastic
MaximumCurrent : 40000 amps
MaximumSurgeRating : 40 kiloamps
ModelNumber : F9H100-CW
NumberOfItems : 1
PackageLevel : unit
PartNumber : F9H100-CW
PowerPlugType : type_b_3pin_na
ProductDescription : Surge arrester is a comprehensive arrester, which integrates the functions of arrester and surge protector in one device, and is used to protect electrical systems from lightning and various overvoltages. When the system is exposed to lightning overvoltage, the arrester part will work first to suppress the overvoltage as much as possible and lead it to the ground; if the arrester fails to completely consume the overvoltage, the part of the overvoltage exceeding the system protection level will be conducted to the surge protector. The surge protector releases the overvoltage to the ground after dropping the overvoltage to a safe range through its own protection characteristics, so as to protect the system from damage. Surge protection arrester is an efficient and economical overvoltage protection device, suitable for occasions that need to protect both lightning and non-lightning overvoltage, especially for the protection of new energy systems such as photovoltaics. Specification:

Uc (V DC):500/1000V

In(8/20)us (kA):10/20/40

Imax(8/20)us (kA):20/40/60

Up (kV):3.8

Pole:2P/3P

Hard wiring capacity(mm²):4~25

Flexible wiring capacity(mm²):4~16

Stripping length(mm):10

Protection class:IP40

Working Temperature:-40~+70

ProductSiteLaunchDate : 2023-05-03T06:35:57.667Z
RecommendedUsesForProduct : Apartment
RecommendedUsesForProduct1 : Apartment
RecommendedUsesForProduct2 : TV
RecommendedUsesForProduct3 : Office
RecommendedUsesForProduct4 : Hotel
RecommendedUsesForProduct5 : Restaurant
Size : 3 ft
StreetDate : 2018-08-30T00:00:01Z
Style : 6 Outlet
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
TotalPowerOutlets : 2
UnspscCode : 26121629
Voltage : 1000 volts_of_direct_current
WarrantyDescription : Quality warranty period of 24 months
