Specification
Brand : Walfront
BulletPoint1 : ✔【STVP Series Automatic Reset】STVP series automatic reset over‑voltage under‑voltage multi‑function protector is a monitoring and auxiliary device instrument, suitable for three‑phase four‑wire power system or electrical equipment.
BulletPoint2 : ✔【Auto-adjust】When the line has overvoltage, undervoltage, or overcurrent status, the product can instantly cut off the power supply to the electrical equipment from being damaged; when the line voltage returns to normal, the protector can automatically turn on the power supply normally.
BulletPoint3 : ✔【Multifunctional Protector】Integrate over‑voltage , under‑voltage , over‑current , three‑phase current (voltage) unbalance , phase sequence (phase dislocation ), and phase‑break in one.
BulletPoint4 : ✔【Troubleshooting Self‑Resetting】The product possess the function of fault inquiry, voltmeter and ammeter, and the function of restoring factory settings.
BulletPoint5 : ✔【LCD Screen】LCD voltage protector come with complete functions, and easy
CompatibleDevices : Modem
ConnectorGender : Male-to-Female
ConnectorType : RJ45
ExternallyAssignedProductIdentifier1 : 050616007702
ExternallyAssignedProductIdentifier2 : 0050616007702
ExternallyAssignedProductIdentifier3 : 00050616007702
IncludedComponents : inc
IndoorOutdoorUsage1 : outdoor
IndoorOutdoorUsage2 : indoor

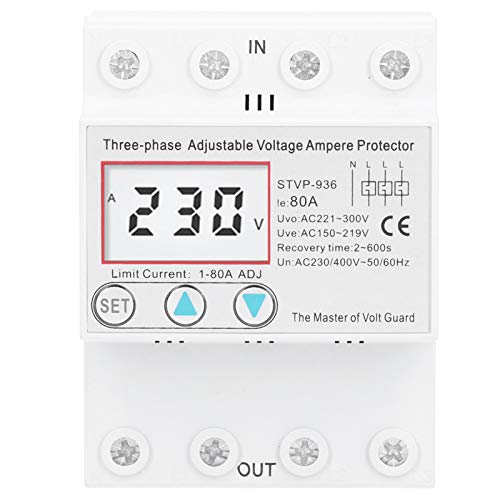

ItemName : STVP‑936 LCD Adjustable Voltage Protector 3‑Phase LCD Multifunctional Self‑Resetting Voltage Protector 230V/400V AC((80A))
ItemPackageDimensions_Height : 10.8 centimeters
ItemPackageDimensions_Length : 7.3 centimeters
ItemPackageDimensions_Width : 7.5 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : surge-protectors
Manufacturer : Walfront
Material : plastic
MaximumVoltage : 260 volts
ModelNumber : Walfrontm160hrd9ey6020-13
NumberOfItems : 1
NumberOfPins : 24
PartNumber : Walfrontm160hrd9ey6020-13
ProductDescription : Specification:
Item Type: Adjustable Voltage Protector
Material: Plastic
Model: STVP-936
Rated Voltage Three-Phase Four-Wire: 230V/400VAC 50/60Hz
Current Rating: 1-80A adjustable(default 80A) / 1-63A adjustable(default 63A) / 1-50A adjustable(default 50A)
Overvoltage Value Range: 221V-300V-OFF (default value 280V)
Overvoltage Recovery Value Range: 220V-299V (default value 250V)
Overvoltage Action Time is Adjustable: 0.1 Seconds-10 seconds (default value is 0.2 seconds)
Undervoltage Value Range: 219V-150V-OFF (default value 160V)
Undervoltage Recovery Value Range: 220V-151V (default value 180V)
Under Voltage Action Time is Adjustable: 0.1 Seconds-10 seconds (default value 0.2 seconds)
Overcurrent Action Time: 1 Second - 512 seconds (default value is 5 seconds)
Three-Phase Voltage Unbalance Value Range: 5%-90%-OFF(default value is 25%)
Phase Voltage Unbalance Action Time: 0.1 seconds-10 seconds (default value 2.0 second)
Power-On Delay Time: 2-255 Seconds (default value is 2 seconds)
Failure Recovery Delay Time: 2-512 Seconds (default value is 60 seconds)
Power Consumption: ≤3VA
Display Mode: LCD
Electrical Isolation Strength: >2000VAC, pulse 2.5KV 1.2/50μS
Working Environment: Temperature -20℃~50℃, Humidity＜85%, Altitude: No more than 2000meter

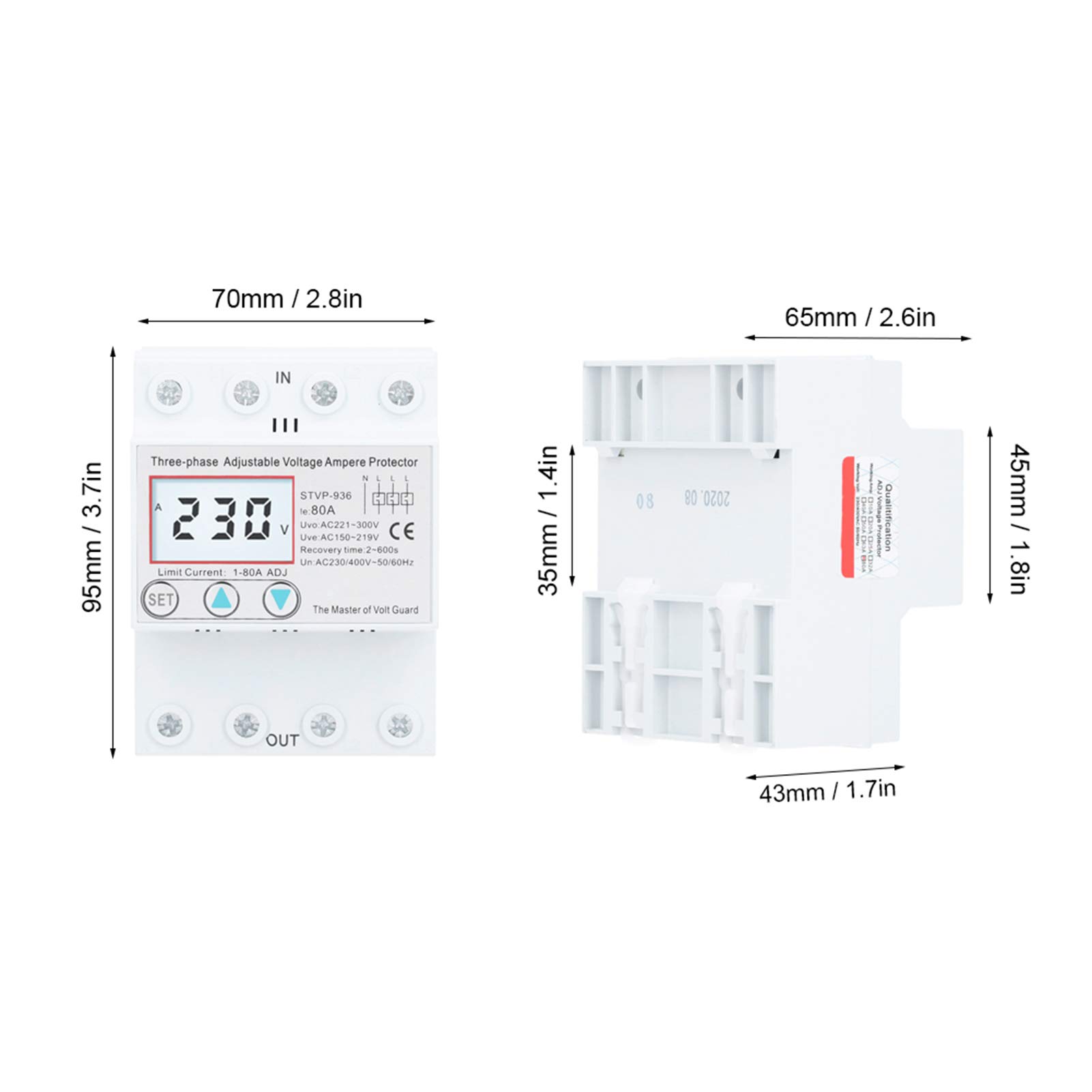

Size: Approx. 70 x 95mm / 2.8 x 3.7in, 65mm / 2.6in, 43mm / 1.7in, 45mm / 1.8in, 35mm / 1.4in

Package List:
1 x Adjustable Voltage Protector
1 x User Manual

ProductSiteLaunchDate : 2021-06-11T02:57:02.247Z
RecommendedUsesForProduct : Protect and connect analog phone lines and DSL modems
Size : (80A )
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 46000000
Voltage : 1 volts
