Specification
Brand : WORLDPEAK
BulletPoint1 : Reliable Wide-band Performance (DC ~ 3GHz) ,Lightning arrestor 50 Ohm ,Bi-Directional Protection (RPTNC-Male / RPTNC-Female Square Connectors) Mountable - High Quality Construction
BulletPoint2 : Lightning arrester protects HAM Radio Equipment and GPS Receivers.Protects 900MHz, 2.4GHz & 5GHz WiFi Outdoor Antennas,Protects 50 Ohm 3G, 4G, LTE Cellular Boosters and Amplifiers
BulletPoint3 : Lightning surge protector TNC male to TNC female square is very Low RF Insertion Loss (Signal Attenuation) - 50 Ohm Impedance - DC Pass-Through
BulletPoint4 : Pack two piece Ethernet lightning arrestor, replaceable 90V Gas Discharge Tube with Multi-Strike Capability Shunts Damaging Surges,Transients,and Lightning Strikes to Ground
BulletPoint5 : TNC connector lightning arrestor Connect to Antenna Coax Feedline and Earth Ground
Color : Orange,White
CompatibleDevices : Radio

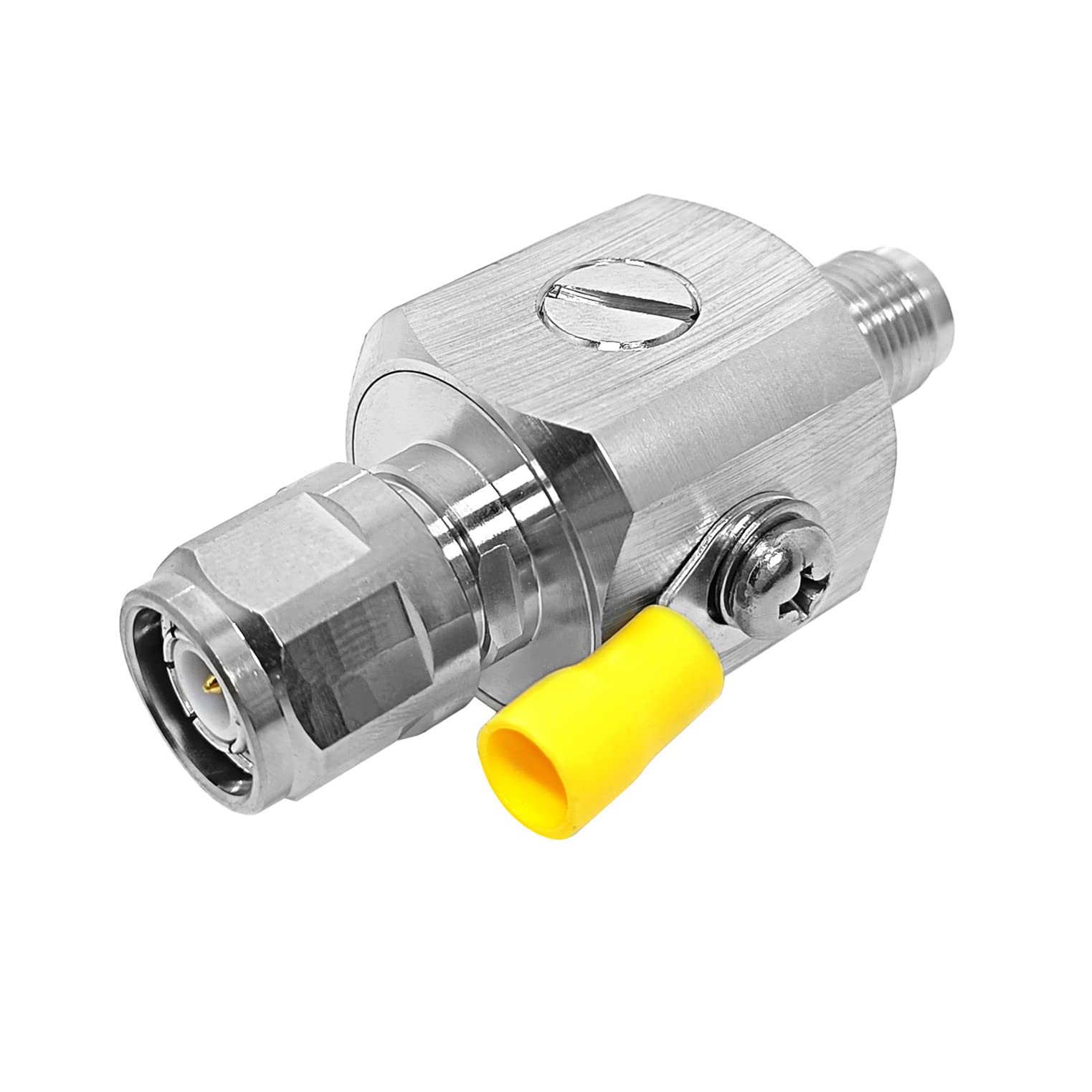

ItemName : Lightning Protector TNC Male to TNC Female Square DC-3GHZ Square 90V Gas Tube Discharge Surge Arrester type2
ItemPackageDimensions_Height : 70 millimeters
ItemPackageDimensions_Length : 90 millimeters
ItemPackageDimensions_Width : 36 millimeters
ItemPackageQuantity : 1
ItemShape : Square
ItemTypeKeyword : electronic-surge-protectors
Manufacturer : WORLDPEAK
Material : Metal
Material1 : Brass
Material2 : Ptfe
MaximumCurrent : 15 amps
MaximumSurgeRating : 40 kiloamps
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : 527
PowerPlugType : type_b_3pin_na
ProductDescription : Coaxial Lightning Arrester Surge Protector TNC Male to TNC Female Square 50 Ohm DC-3Ghz.

It is a coaxial TNC to TNC Surge Protector that operates over the frequency range of 0-3GHz.

It uses a gas discharge tube to protect connected equipment against transients and surges caused by lightning strikes.

It features standard 50 Ohm TNC-Male to TNC-Female Square coaxial connectors.

Protects cell phone signal boosters/amplifiers from power surges typically caused by lightning strikes to antennas mounted outdoors.

Designed to be placed between amplifier and outside antenna cable connection, need to be grounded.

Electrical Specifications:

Input Impedance: 50Ω
Frequency Range: DC - 3GHz
Durability: ≥ 500 cycles
VSWR: <1.3:1
Insertion Loss: <0.4dB
DC Breakdown Voltage: 90 V

Mechanical & Environmental:
Connector Types: TNC-Male to TNC-Female Square Connector
Body Material: Brass nickel plated
Pin：Body brass gold plated
Insulator Material: PTFE( Teflon)
Temperature Range: （-55℃ to +155℃）

Package: 1 x TNC Coax Lightning Arrestor Surge Protector TNC-Male to TNC-Female Square 50 Ohm DC-3Ghz( with 90V gas discharge element )
ProductSiteLaunchDate : 2021-01-13T08:56:04.573Z
RecommendedUsesForProduct : Indoor, Office, College Dorm Room, Hotel, School, Restaurant, TV Cabinet
Style : Automatic Pop Up Outlet Surge Protector & 120mm Hole Sa
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
TotalPowerOutlets : 4
UnspscCode : 39121400
Voltage : 125 volts
