Applications:

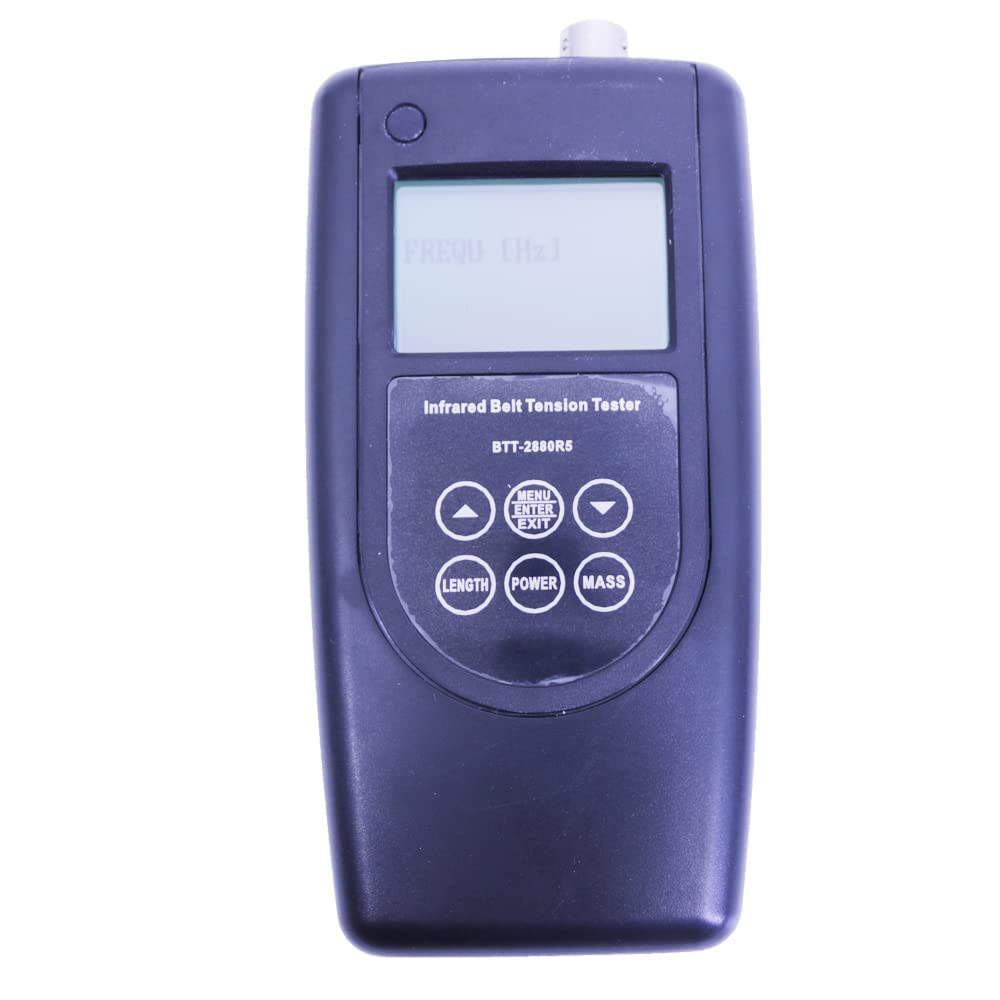

The Infrared Belt Tension Meter can measure the belt tension of motor and other machines
quickly.
Principle:
This tensiometer can measure the natural vibration frequency of the belt through the
emission and reception of the laser, and then calculate the tension value of the belt by
combining the input belt mass and the free belt length.
Details:
Measurement Range:10~500Hz
Input Range:Free Belt Length Max 99.99m
Belt Mass Max 9.999kg/m
Digital Sampling Error:<1%
Display Error:±1Hz
Total Error:<5%
Operating Temperature Range:+10~50°C
Transportation Temperature Range:-5~70°C
Unit of Measurement:Metric: m, kg/m, N
Imperial: Inch, lbs/foot, lbf
Optical Path Measurement Distance:3~20mm
Depth of Split Sensor:About 66mm
Power Supply:4x1.5V AAA (UM-4) Battery
Main Unit Size: 178x72x34mm
Sensor Size: 124x21x12mm
Weight:180g (Not Including Battery)
Standard Accessories:
Main Unit
Split Sensor
Carrying Case (B04)
Operation Manual
