Specification
Brand : MeterTo
BulletPoint1 : Using laser sensor, direct measurement, more convenient than mechanical sensor;
BulletPoint2 : The size of the split sensor is small, which is suitable for measuring in a narrow space;
BulletPoint3 : Two kinds of sensors selectable, the integrated sensor and the split sensor;
BulletPoint4 : Metric or imperial units can be used to display readings;
BulletPoint5 : With automatic power off function.
ExternallyAssignedProductIdentifier : 9369147950137
IncludedComponents : inc

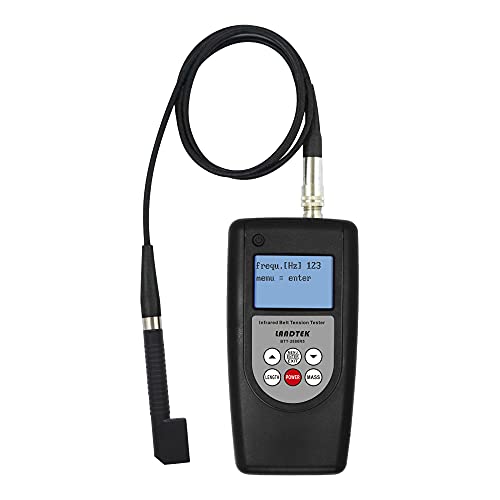

ItemName : MeterTo Infrared Belt Tension Tester BTT-2880R8 Tensiometer, Range 10~800Hz
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 12 centimeters
ItemPackageDimensions_Width : 7 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-surface-tension-measuring-devices
Manufacturer : MeterTo
Material : ABS
NumberOfItems : 1
PartNumber : BTT-2880R8
ProductDescription : MeterTo
MeterTo mainly offers instruments and tools. Please confirm the product is offered by our store MeterTo when purchasing,
otherwise we can't ensure the quality and after-sale service.

Introduction
The Infrared Belt Tension Meter can measure the belt tension of motor and other machines quickly.

Measuring Principle
This tensiometer can measure the natural vibration frequency of the belt through the emission and reception of the laser,
and then calculate the tension value of the belt by combining the input belt mass and the free belt length.

Specifications
Measurement Range 10~800Hz
Input RangeFree Belt Length Max 99.99m; Belt Mass Max 9.999kg/m
Digital Sampling Error <1%
Display Error ±1Hz
Total Error <5%
Operating Temperature Range +10~50°C
Transportation Temperature Range -5~70°C
Unit of Measurement Metric: m, kg/m, N; Imperial: Inch, lbs/foot, lbf
Optical Path Measurement Distance 3~20mm
Depth of Split Sensor About 66mm
Power Supply 4x1.5V AAA (UM-4) Battery
Size
Main Unit: 178x72x34mm
Sensor: 124x21x12mm
Weight 180g (Not Including Battery)

Standard Accessories
Main Unit
Split Sensor
Carrying Case (B04)
Operation Manual
ProductSiteLaunchDate : 2021-06-08T03:18:30.079Z
