Specification
Brand : SHYSKY
BulletPoint : Piston Pumps
BulletPoint1 : [Speed Adjustable] SHYSKY DC60D-24120A-1 Water pump, With external diameter 20mm (Not threaded), Max static lift 12 m; Max horizontal flow rate 3800 LPH (63L/Min). Typical feature is with good lift and flow rate, suitable for some micro/ medium circulation/ pressure/ cooling sys. Speed/Flow Adjustable: User can adjust working power/ flow of pump at work through rotating potentiometer knob of pump, flexible at use.
BulletPoint2 : [BLDC design] Brushless DC motor, also known as EC motor; Magnetic Driven (NO DIRECT AC 100-240V POWER CONNECTION, PROHIBITED); Small size but strong; Low consumption & High Efficiency; Long time continuous working with low noise;Safety - no spark, Explosion - proof; Low noise about 40dB.
BulletPoint3 : [Wide applications] Low-voltage safety, high power-efficiency, low noise at normal work and supporting long-time continuous reliable running. This pump is widely applied for fountain landscape, medical equipment cooling circulation, air compressor cooling circulation, PC server water cooling, yacht/ vehicle water cooling, or other industrial, medical and household water processing systems. Pump cannot be self-priming, and it is important to make sure that there exists no dry run (especially for long time). Avoid impurities in the pumping systems.
BulletPoint4 : [Variety Power] 24V DC electric source, Battery, Solar Panel, etc; Soft Start with Low in-rush current, Especially suitable for Solar SYS who can not provide instant startup impulse current; Constant power level when powering vol. is over 24VDC yet under 28VDC, quite useful feature in some cases.
BulletPoint5 : [Dry Run Protection] DRY-RUN PROTECTION feature is integrated on the pump design now in default. Pump works at rated voltage: When there exists insufficient in-flow or no in-flow (or significant air bubble within), pump's DRY-RUN protection will be triggered: Pump will access stop-run-stop-run-stop-run--- cycle, greatly reducing rotation in this context. When in-flow comes sufficiently again, pump will then re-access normal run performance. This DRY-RUN protection is aimed to significantly reduce physical damage of pump from long time DRY RUN in some scenarios. Otherwise, pump could be conveniently dead due to long-time DRY RUN.
Color : Black
ExternallyAssignedProductIdentifier : 6190080201993
ExternallyAssignedProductIdentifier1 : 746608818745
ExternallyAssignedProductIdentifier2 : 0746608818745
IncludedComponents : DC60D-24120A-1 Micro brushless dc pump

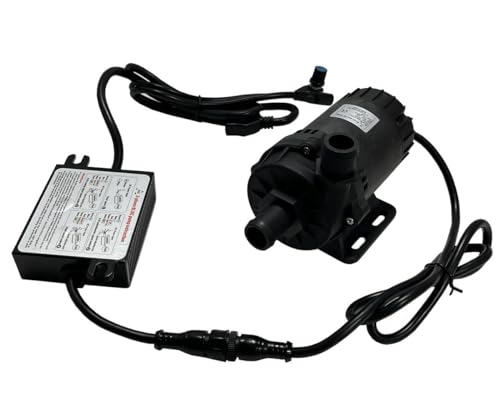

ItemName : SHYSKY High Powerful 24V 120W Small Brushless DC Water Pump DC60D-24120A-1 12m 39ft Lift 1003GPH, Submersible, Speed Adjustable, For Cooling Circulation Pressure Sys
ItemPackageDimensions_Height : 175 millimeters
ItemPackageDimensions_Length : 140 millimeters
ItemPackageDimensions_Width : 205 millimeters
ItemPackageQuantity : 1
ItemTypeKeyword : sump-pumps
Manufacturer : SHYSKY
Material : Plastic
MaximumFlowRate : 3800 liters_per_hour
ModelName : DC60D-24120A-1 Water pump
ModelNumber : DC60D-24120A-1
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : SY-DC60D-24120A-1
PowerSourceType : Battery Powered, Corded Electric, Solar Powered
ProductDescription : Specifications
Dimension and weight: 152 x88 x110 mm (6 x 3.5 x 4.3 inch); appr. 1.5Kg (3.3lbs)
With external diameter: 20mm (Not threaded)
Driving mechanism: Brush-less, magnetic isolated design
Material of pump shell: ABS,PES/SPS/PPS/PA66+30%GF (Optional when customization at MOQ)
Condition of use: Support continuously work, submersible or land use (note that pump cannot be not self-priming)
Suitable medium: Water, oil, etc (corrosive or special fluids shall be tested in advance.)(Pre-test needed for special liquid)
Max working temperature: 100 ~ 120℃(for S/A sub-series)
Power consumption: 120W @ 24VDC
Rated voltage: 24Vdc
Working voltage range: 12Vdc ~ 26Vdc
Max load current: 5A @ 24VDC
Max horizontal flow rate: 3800L/H @ 24VDC
Max static lift: 12M @ 24VDC (for S/A sub-series)
Noise class: <40dB, at 1m distance
Waterproof class: IP68
Life span: Can be more than 20,000hrs, installed at ideal environment.
Power supply: Can be suitable solar panel, batteries, adapter or other power source
Power regulation function: IP68(suitable for submersible installation)

Feature:
small size with high efficiency,maintenance-free;
Use ceramics shaft and carbon fiber sleeve;
Completely water proof (IP68);
Brush-less dc control without pollution, long life span;
OEM and ODM service accept;
Offer Pump related control system design

Package includes:
1 x DC60D-24120A-1 Powerful 24VDC Micro DC Pump (No power supply is included)

ProductSiteLaunchDate : 2024-03-28T11:45:14.690Z
Size : 200Mesh
Style : submersible pump
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 40151500
Voltage : 24 volts_of_direct_current
Wattage : 120 watts
