SpecificationBrand : HNZXIB
BulletPoint1 : Working principle: Under constant temperature conditions, in the closed glass reactor, stirring reaction can be carried out under normal pressure or negative pressure according to the requirements of use, and the reaction liquid can be reflow. With distillation, the reaction is completed, the material can be discharged from the discharge port at the bottom of the kettle, and the operation is extremely convenient. It is an ideal pilot test and production equipment for modern fine chemical plants, biopharmaceuticals and new material synthesis.
BulletPoint2 : Double-Layer Glass Reactor is designed as double-layer glass, and the inner layer is placed in the reaction medium for stirring reaction, and the interlayer can be heated or cooled by using different cold and heat sources (refrigerant, hot water, or hot oil).
BulletPoint3 : Gear Motor: International copper wire, high efficiency, long operation time, good stability and noise free, standard gears, no gap and abrasion resistance, CE approved.
BulletPoint4 : Constant Pressure Funnel: Temp range -100°C - 400°C, strong acid and alkali resistant high temperature resistant high strength and hardness, feed rapidly, no residual and easy clean
BulletPoint5 : Big Mouth discharge valve: Large diameter discharge valve: PTFE discharge valve adopts 180mm large bottle mouth design, easy to clean, easy to disassemble, no dead corner. Solid/liquid material can be easily released from the bottom.
Color : Blue, White
ExternallyAssignedProductIdentifier1 : 0091646335458
ExternallyAssignedProductIdentifier2 : 091646335458
IncludedComponents : Glass kettle body, gear motor, control box, stirring shaft ...

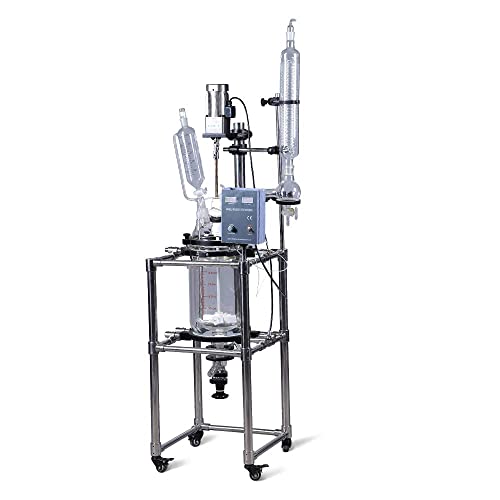

ItemName : HNZXIB Double-Layer Cylindrical,High and Low Temperature Reaction Equipment,Glass Jacket Type Reactor Chemical Reaction Unit,The Reaction is Stirred Under Atmospheric or Negative Pressure Conditions.
ItemPackageDimensions_Height : 6.69 inches
ItemPackageDimensions_Length : 11.81 inches
ItemPackageDimensions_Width : 6.69 inches
ItemTypeKeyword : science-lab-stirrers
Manufacturer : HNZXIB
Material1 : Aluminum Silicate Cotton
Material2 : PBT
Material3 : Silicone
ModelNumber : A047
NumberOfItems : 1
PartNumber : S-10
ProductDescription :
Double-Layer Glass Reactor is designed as double-layer glass, and the inner layer is placed in the reaction medium for stirring reaction, and the interlayer can be heated or cooled by using different cold and heat sources (refrigerant, hot water, or hot oil).
The working principle and application range of the double-layer glass reactor: under the constant temperature condition, in the closed glass reactor, the stirring reaction can be carried out under normal pressure or negative pressure according to the use requirements, and the reaction solution can be refluxed. With distillation, the reaction is completed, the material can be discharged from the discharge port of the bottom of the kettle, and the operation is extremely convenient. It is an ideal pilot and production equipment for the synthesis of modern fine chemical plants, bio-pharmaceuticals, and new materials.
Double-Layer Glass Reactor
The evaporation and back-flow of reaction material can be controlled.
The heat of the reaction could be taken away quickly through the water, cycling in the jacketed glass.
The design of large bottle mouth, easier to clean.
It can be used as a distillation synthesis device.
The sealing performance is 0.098 Mpa.
LCD display, easier and more convenient to measure temperature.
Double-Layer Glass Reactor
1. All the PTFE material valve, no put pleural effusion, no leakage
2. Multi-functional swig and corrosion resistance
3. The design of the large bottom mouth easier to clean
4.With brake Casters, convenient and reliable for moving
Double-Layer Glass Reactor
1. All the PTFE material valve, no put pleural effusion, no leakage
2. Multi-functional swig and corrosion resistance
3. The design of the large bottom mouth easier to clean
ProductSiteLaunchDate : 2024-11-15T08:24:25.977Z
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 41000000
