Cart 2 india

Specification
Brand : SÜA
BulletPoint : CONTACT US IF YOU HAVE DOUBTS ABOUT THE COMPATIBILITY OF THE PART BEFORE ORDERING! DO NOT ORDER ON PICTURE ALONE!
BulletPoint1 : All position, machineable nickel-iron electrode for general maintenance welding of heavy or thick sections of cast iron where maximum strength and ductility are required
BulletPoint2 : Excellent choice for welding cast iron, malleable iron, and ductile iron to itself or joining these irons to mild or carbon steel, to certain copper alloys, to stainless steel, wrought alloys, and even some higher nickel alloys.
BulletPoint3 : High strength weld deposits are machineable, dense, smooth, crack-free, and steel gray color
BulletPoint4 : Ideal for joining “Meehanite,” “Ni-Resist,” ductile iron to steel; more common applications include motor and machine bases, cylinder blocks and heads, gears and pulleys, transmission and differential casings, compressor blocks, cast iron wheels, and cast boiler sections
BulletPoint5 : Select your Electrode Diameter and Package Quantity from the Options - Check Pictures #2 and #3 and Product Description for Welding Parameters.
ExternallyAssignedProductIdentifier1 : 0840338563613
ExternallyAssignedProductIdentifier2 : 00840338563613
ExternallyAssignedProductIdentifier3 : 840338563613
IncludedComponents : Electrode
ItemDisplayWeight : 1 pounds

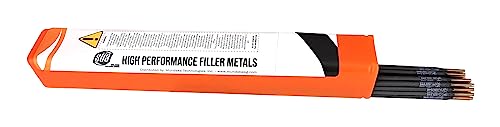

ItemName : SÜA® - ENiFeCl - 55% Nickel/Cast Iron Welding Electrode - 12" x 3/32" (1 LB)
ItemPackageDimensions_Height : 1 inches
ItemPackageDimensions_Length : 3 inches
ItemPackageDimensions_Width : 2 inches
ItemPackageQuantity : 1
ItemTypeKeyword : arc-welding-stick-electrodes
Manufacturer : Mundaka Technologies Inc
Material : nickel
ModelName : WB13K18
ModelNumber : WB13K18
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : SWT-NiFeClE12x332x1
PowerSourceType : ac_dc
ProductDescription : Instructions: Bevel thick sections or use Chamfer Rod to form a “U” shaped groove. Drill or use Cut Rod to create stop holes at each end of the part to be welded in order to prevent the spread of cracking during welding. Clean the work area as thoroughly as possible. Preheating is not required; however, it is useful in relieving stresses and to increase machineability of the weld deposit in parts greater than ½” thick. 200°F is an acceptable preheat temperature. Using AC or DC+ (reverse polarity), hold the electrode 15° off vertical tilted into the direction of travel. Maintain a short arc length of about 1/8”. Use stringer beads or narrow weave beads in order to prevent excessive heat build-up. Holding the arc over the molten weld metal, follow the pool but do not let the arc get ahead of the pool. Weld only one to four inches at a time, depending on the thickness of the part. If the part is ¼” thick, use a 1” bead, ¼” to ½” thick use a 2” bead, ½” and thicker, use a 3” to 4” bead. Extinguish the arc by whipping it back over the deposited metal. Peen the weld deposit with a chipping hammer to remove any slag and to relieve weld metal stress and prevent cracking. Restrike the arc on previously deposited weld metal and not on the base metal. Do not let the part become too hot during welding and remove slag often. Always choose an electrode diameter that is small enough to permit at least two passes. Gradual cooling of the deposit is strongly recommended.
ProductSiteLaunchDate : 2023-07-07T20:58:22.909Z
Size : 3/32" - 1 Lb
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
WarrantyDescription : 1 year
WebsiteShippingWeight : 2 ounces
