Specification
Brand : JCZX
BulletPoint1 : Fiber Tool Electrodes for S175 S176 S177 S177A S960 Fusion Splicer
BulletPoint2 : Use life for splice 3000-5000 times
BulletPoint3 : Made in China
BulletPoint4 : 1 pair of Fiber Fusion Splicer Electrode Rod for S175 S176 S177 S177A S960
BulletPoint5 : Note:Do not touch the tip of the electrode during the replacement process to prevent damage, and avoid the electrode falling inside the machine. The electrode position must be calibrated after the electrode is replaced
ExternallyAssignedProductIdentifier : 8011474057874

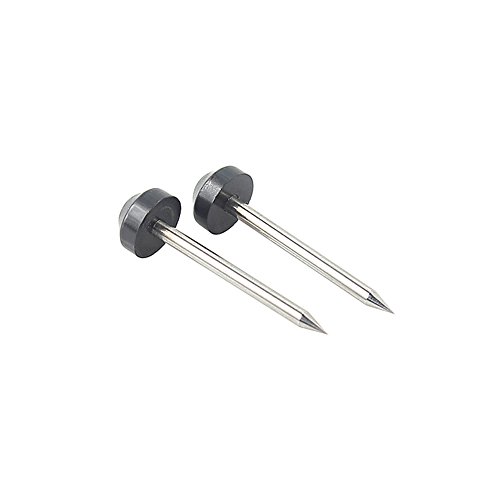

ItemName : Fiber Fusion Splicer Electrode Rod Fiber Optic Tools for S175 S176 S177 S177A S960
ItemTypeKeyword : arc-welding-stick-electrodes
Manufacturer : JCZX
Material : Aluminum
ModelNumber : JCZX-S175
PartNumber : JCZX-S175
ProductDescription :
Electrode cleaning and arc calibration:
1. After the electrode installation is completed, turn on the fusion splicer power switch
2. After the fusion splicer enters the initial screen, press the menu button to enter the first level menu.
3. Find the machine maintenance by moving the cursor and enter the cleaning electrode item. After confirmation, the machine will automatically discharge the cleaning and aging electrode.
4. Install the cut left/right fiber, find the arc position item by the movement of the cursor, and keep the end face of the fiber and the tip of the two electrodes at the position of three points and one line by operation. The machine will perform the discharge test and adjust according to the actual situation.
5. Finally, press the menu button to launch in sequence.


Note:
Do not touch the tip of the electrode during the replacement process to prevent damage, and avoid the electrode falling inside the machine. The electrode position must be calibrated after the electrode is replaced.

Package:
1x 1pair of fiber Fusion Splicer Electrode Rod for S175 S176 S177 S177A S960
ProductSiteLaunchDate : 2018-07-10T07:00:00.000Z
