Specification
Brand : KOPPACE
BulletPoint1 : 1. This product does not contain a monitor.
BulletPoint2 : 2. This product is HDMI/LAN LAN/USB3.0 output, Connect directly to the monitor through an HDMI cable,or connect to a computer through a network cable/USB 3.0 interface for use,Provide professional imaging software.
BulletPoint3 : 3. This product has two USB ports, one for connecting to a mouse and the other USB 3.0 for connecting to a computer. (USB3.0 to connect the computer need to open the lower button, not open can only connect the mouse).
BulletPoint4 : 4. Photography,video recording, and measurement can be achieved on both the monitor and computer.
BulletPoint5 : 5. If measurement is required, it needs to be done in manual focusing mode. Calibration is required before measurement.

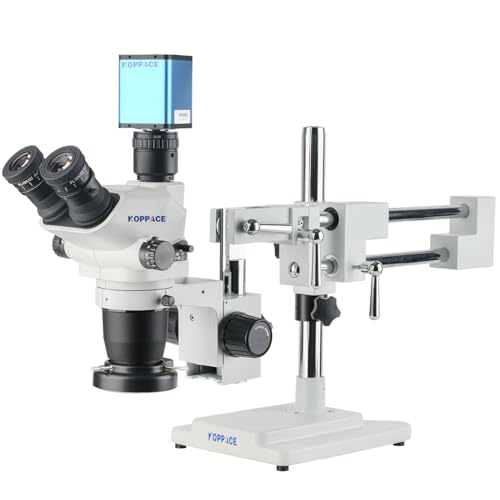

ItemName : KOPPACE 28X-190X Trinocular Electron Microscope,2MP HD Autofocus Camera,USB Connected to Computer
ItemPackageDimensions_Height : 50 centimeters
ItemPackageDimensions_Length : 40 centimeters
ItemPackageDimensions_Width : 40 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-stereo-microscopes
MagnificationMaximum : 1
Manufacturer : KOPPACE
NumberOfItems : 1
PartNumber : KP-AF7600-L2
ProductDescription :

Model：KP-AF7600-L2
Optical Enlargement：3.35X-45X
Electronic Amplification：28X-190X
Eyepiece：High Eye Point Large Field Plan Eyepiece PL10X/22mm,Diopter Adjustable
Objective Lens：0.67X-4.5X
Auxiliary Lens：0.5X/WD165mm,1X Oil Proof Mirror
Viewing Head：45 ° Tilting Trinocular Observation Head,Interpupillary Distance Adjustment:52mm-76mm,Fixed Eyepiece Tube,With Fixed Frame Fixed Magnification and Magnification Locking Function
Working Distance：100mm-165mm
Focusing Bracket：Focusing Handwheel Tightness is Adjustable,lifting Range 50mm
Dual Arm Bracket：Lifting Range:275mm,Base 210X260X51mm,Column Diameter 32mm,
Lens Aperture 76mm,Vertical Height 348mm,Horizontal Movement 235mm
LED Light Source：72 LED Lamp Beads,the Inner Diameter is 71.5mm, the Outer Diameter is 110mm, Input Voltage AC90—240V, Maximum Output Power 6W,Voltage 12V/700MA
Trinocular Interface：0.5XCTV
Sensor：2 Million Pixels Autofocus Microscope Camera
Focusing Method：Auto Focus,Manual Focus,One-click Focus
Output Method：HDMI/LAN/USB3.0
Sensor Size：1/2.8
HDMI Resolution Ratio：1920 X 1080 60 Frames
Digital Amplification：6X Digital Amplification
Photo/Video：1920 X 1080 (Can be manually named and automatically named)
White Balance Automatic/One Click
Image Adjustment：Exposure Value,Saturation,Brightness,Contrast,Definition,Anti Reflective,Black and White,Flip,Crosshair,Support Horizontal/Vertical Flip,Picture Playback,Support Image Freezing,Comparison of static and moving images
Storage Mode U Disk Storage,Photo Taking,Video Recording and Measurement
Cross Hair：Support 100 Groups Cross Line,The Color Position is Adjustable
Color Adjustment：R、G、B
LAN/USB3.0：We provide professional image measurement software by connecting to a computer through a network port or USB 3.0 interface.
Camera Interface：C Interface
Input Voltage：AC100V—240V 12V
Measuring Function：Point to point distance,point to line distance,line to line distance,angle,parallel line,rectangle,circle,line to center distance,Polygon,arc,circle margin,circle center distance,Dim sum distance,automatic edge searching,annotation and other functions.
Language：Chinese,English,Traditional Chinese

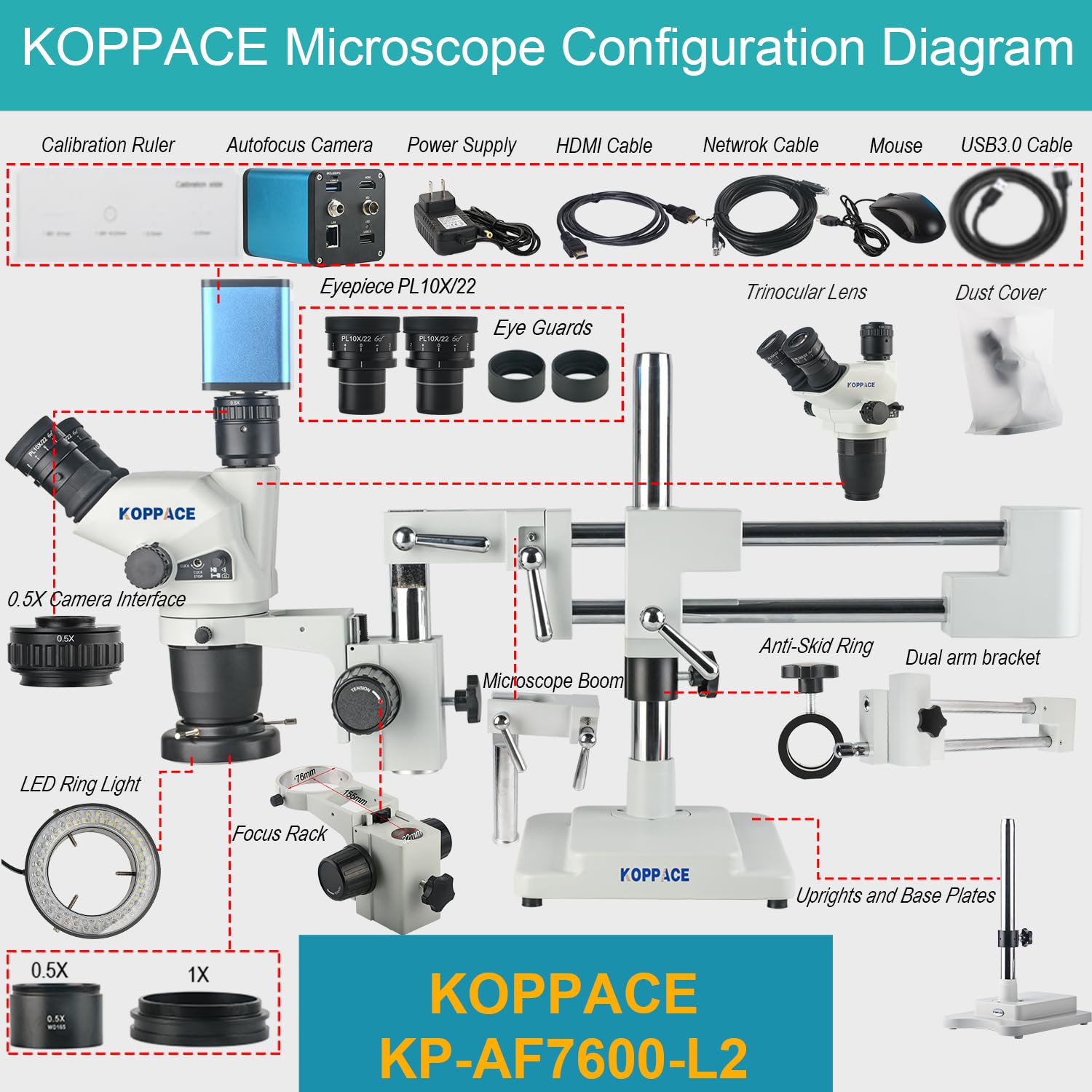

Packing List：
1、Eyepiece PL10X/22 One Pair
2、Focus Rack *1
3、Eye Guards One Pair
4、Trinocular Zoom Lens *1
5、LED Ring Light *1
6、Pillar Stand and Base Plate *1
7、Dust Cover *1
8、Dual Arm Bracket *1
9、Anti-Skid Ring *1
10、Bracket Rod *1
11、Trinocular Interface 0.5X *1
12、0.5X Auxiliary Lens *1
13、1X Oil Proof Mirror *1
14、Autofocus Camera *1
15、HDMI Line *1
16、The Camera Power Adapter *1
17、Calibrating Ruler *1
18、USB 3.0 cable *1
19、Mouse *1

ProductSiteLaunchDate : 2025-04-26T01:39:59.559Z
RealAngleOfView : 1
SupplierDeclaredDgHzRegulation : unknown
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 41111700
WarrantyDescription : 1 Year
