Specification
Brand : KOPPACE
BulletPoint1 : This product does not contain a monitor.
BulletPoint2 : This product is HDMI/LAN LAN/USB3.0 output, Connect directly to the monitor through an HDMI cable,or connect to a computer through a network cable/USB 3.0 interface for use,Provide professional imaging software.
BulletPoint3 : This product has two USB ports, one for connecting to a mouse and the other USB 3.0 for connecting to a computer. (USB3.0 to connect the computer need to open the lower button, not open can only connect the mouse).
BulletPoint4 : Photography,video recording, and measurement can be achieved on both the monitor and computer.
BulletPoint5 : If measurement is required, it needs to be done in manual focusing mode. Calibration is required before measurement.
ItemName : KOPPACE 23X-169X Auto Focus 3D Electron Microscope 2 MP HDMI/USB/LAN Output
ItemPackageDimensions_Height : 29 centimeters
ItemPackageDimensions_Length : 50 centimeters
ItemPackageDimensions_Width : 49 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-stereo-microscopes
MagnificationMaximum : 169 multiplier_x
Manufacturer : KOPPACE
NumberOfItems : 1
PartNumber : KP-AF1600
ProductDescription :

Model：KP-AF1600
Optical Enlargement：0.28X-2X
Electronic Amplification：23X-169X
Eyepiece：0.4X
Objective Lens：0.7X-5X
Field of Vision：3.23mm-23.07mm
Working Distance：100mm
Focusing Bracket：lifting Range 50mm
Lens Aperture：50mm
Column Height：350mm
Bottom Size：320X260X16mm
LED Light Source：60 Lamp Beads,Inner Diameter 61mm,Input Voltage,AC100,240V,Maximum Output Power 4.5W,Voltage 12V
2D/3D Manual Switch：360°Free Choice,Objective Lens Angle 45°
Sensor：2 Million Pixels Autofocus Microscope Camera
Output Method：HDMI/LAN/USB3.0
Focusing Method：Manual Focusing,One Click Focus,Auto Focus
Digital Amplification 6X Digital Amplification
Sensor Size：1/2.8
Pixel Size：2.2X2.2μm
HDMI Resolution Ratio：1920X1080@60FPS
Photo/Video：1920 X 1080 (Can be manually named and automatically named)
Storage Mode：U Disk Storage,Photo Taking,Video Recording and Measurement
Cross Hair：Support 100 Groups Cross Line,The Color Position is Adjustable
White Balance：Auto/Manual
Image Adjustment：Exposure Value,Saturation,Brightness,Contrast,Definition,Anti Reflective,Black and White,Flip,Crosshair,Support Horizontal/Vertical Flip,Picture Playback,Support Image Freezing
Color Adjustment：R、G、B
Image Comparison：Comparison of static and moving images
Camera Interface：C-Mount
Language：Chinese,English,Traditional Chinese
Input Voltage：AC100V—240V 12V
LAN/USB3.0：We provide professional image measurement software by connecting to a computer through a network port or USB 3.0 interface.
Measuring Function：Point to point distance,point to line distance,line to line distance,angle,parallel line,rectangle,circle,line to center distance,Polygon,arc,circle margin,circle center distance,Dim sum distance,automatic edge searching,annotation and other functions

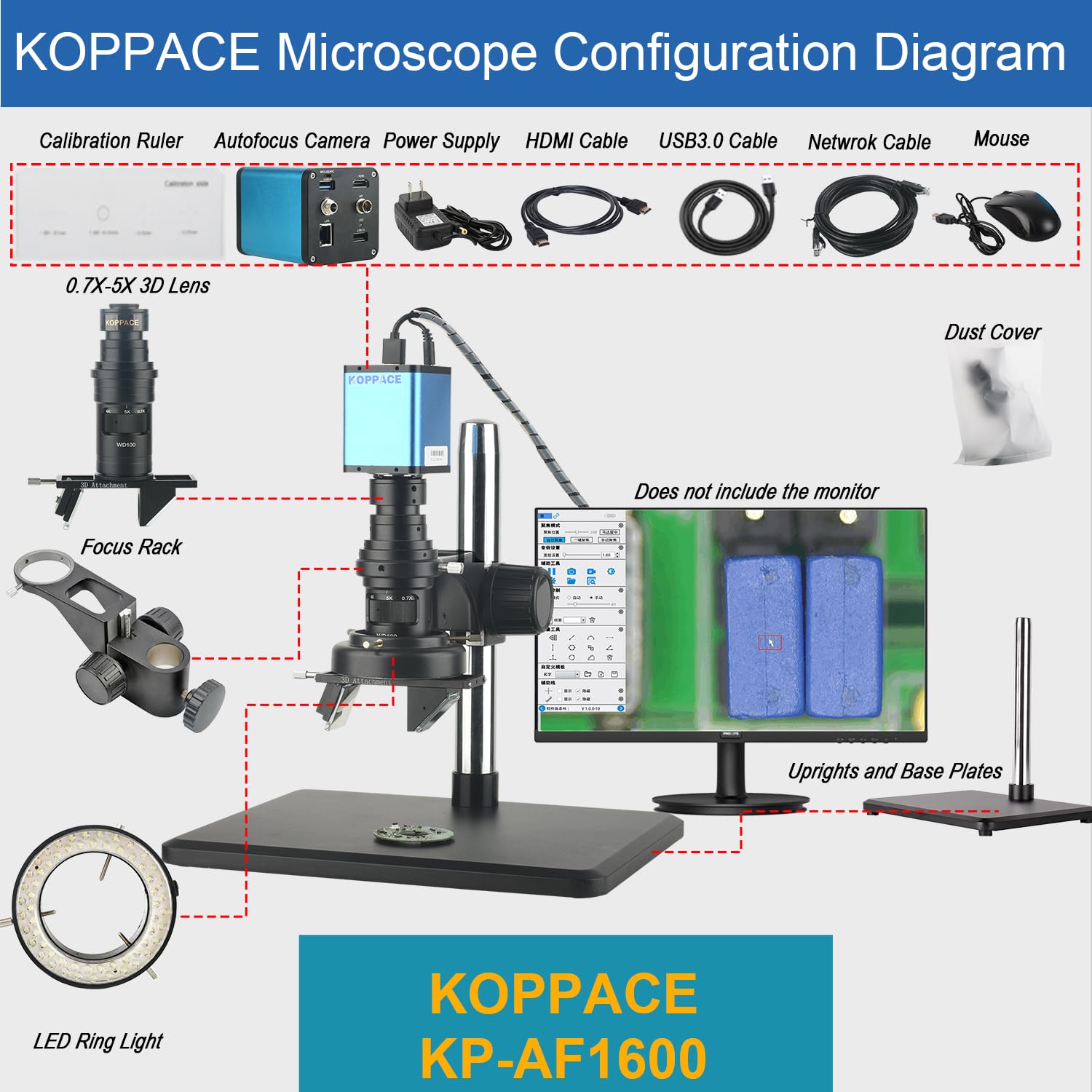

Packing List：
1、Zoom Lens *1
2、3D Rotating Body
3、LED Light Source *1
4、Focus Rack *1
5、Pillar Stand and Base Plate *1
6、Dust Cover *1
7、Autofocus Camera *1
8、HDMI High Definition Line *1
9、The Camera Power Adapter *1
10、Calibrating Ruler *1
11、USB 3.0 cable *1
12、Mouse *1

ProductSiteLaunchDate : 2025-04-26T03:55:28.416Z
RealAngleOfView : 1
SupplierDeclaredDgHzRegulation : unknown
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 41111700
WarrantyDescription : 1 year
