Specification
AgeRangeDescription : adult
Brand : KACOME
BulletPoint1 : Operation:Simple and convenient operation
BulletPoint2 : Volume: Compact, sturdy structure, easy to install
BulletPoint3 : Savings: Cost-effective and cost-saving for customers.
BulletPoint4 : Protection: Displacement sensors also play an important role in safety protection.
BulletPoint5 : Equipment status: Displacement sensors can check the operating status of the equipment.
BulletPoint6 : Inner Dimensions:35.4" X 27.6" X 19.7" (L X W X h)
BulletPoint7 : Mesh Size:3.9" X 2" (L X W)
BulletPoint8 : Built Standard: Built with high standard and care to meet industry standards for quality control, ensuring reliable and consistent performance
BulletPoint9 : Weight:13.7 kg
Color : One Color
ExternallyAssignedProductIdentifier : 7664569496372

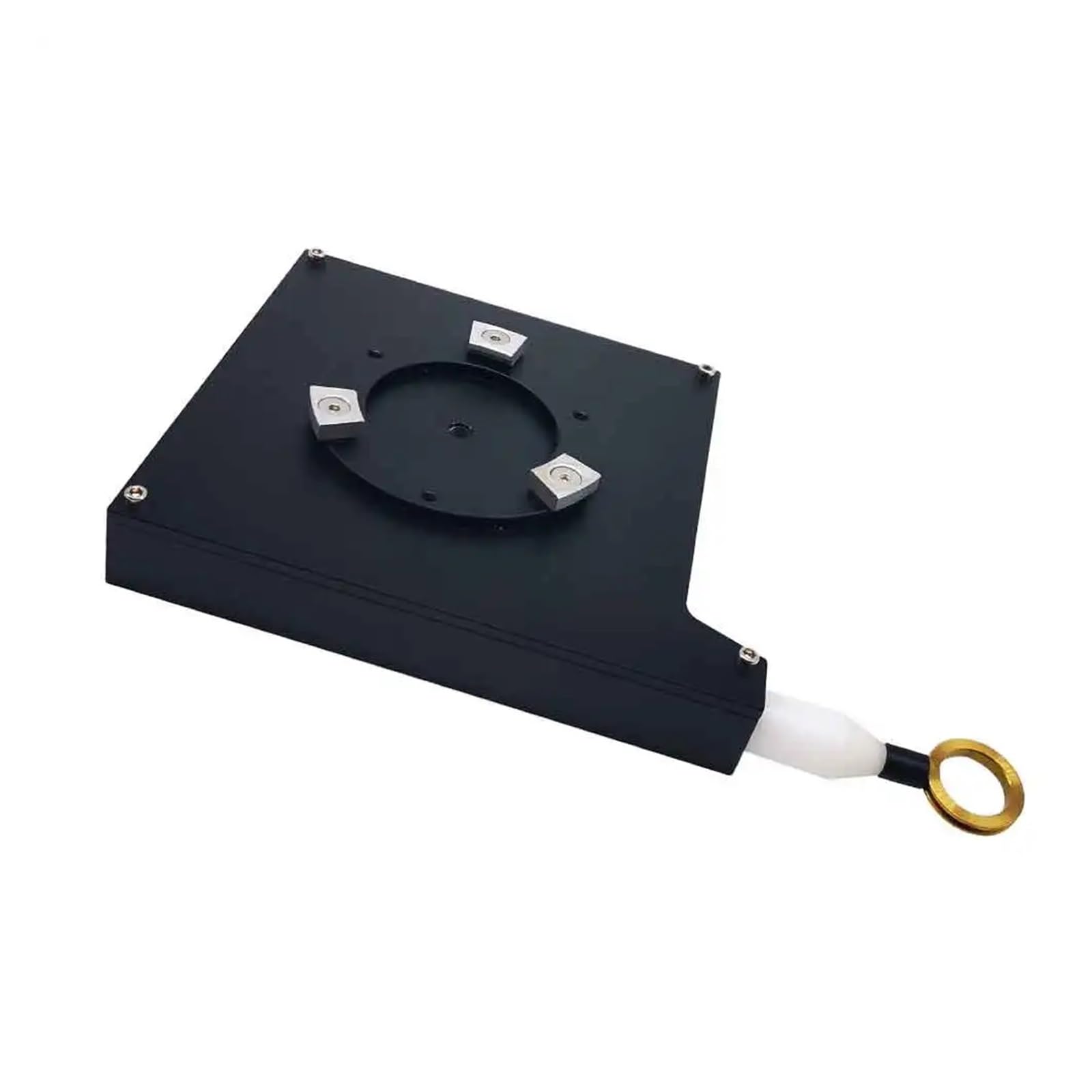

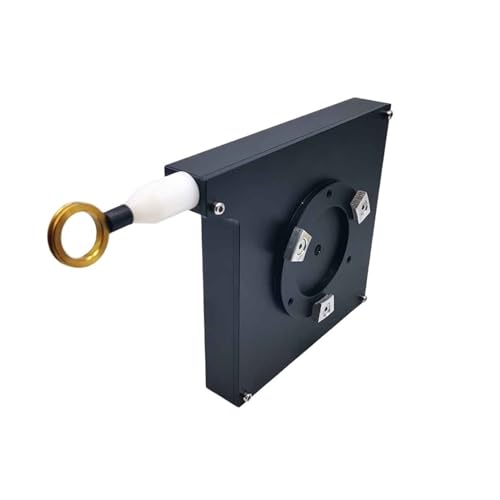

ItemName : KACOME Steel Rope Displacement Sensor Accessories BSL-GA130 5 Meters Draw-Wire Mechanism
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : steel-wire
Manufacturer : KACOME
Material : Zinc-iron alloy
ModelName : KACOME
ModelNumber : KACOME
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfLithiumMetalCells : 1
PartNumber : KACOME
ProductDescription : Steel Rope Displacement Sensor Accessories BSL-GA130 5 Meters Draw-Wire Mechanism
Economic version BSL-GA130
Technical data:
Product
Draw-wire mechanism
Profile
Draw- mechanism for servo flange with
6 mm shaft, measuring range0 m ...5 m
Note
Encoders need to be purchased
separately
Measuring length up to
0 m ... 5 m
Repeatability
0.3 mm
Linearity
± 2 mm
Hysteresis
1.2 mm
Weight
800 g (without encoder)
Material(rope)
Highly flexible 316 stainless steel
rope
Casing material
Aluminum alloy
Circumference of drum
385 mm
Force of retractile spring
3.3 N ... 4.4 N1)
Diameter(rope)
0.6mm
Acceleration
10 m/s²
Resolution
To determine the system resolution,
use the following :
Pull-out length of cable per circle /
Steps per circle = Resolution of draw-wire encoder combination
Working temperature
30 °C ... +70 °C
IP code of casing
IP50
life
Typ. 5000,000 cycle2)3)
1)This
value is measured at an ambient temperature of 25 °C. When the temperature
changes, the value may deviate..
2)The
average value depends on the load pattern.
3)The
service life depends on the type of load. Influencing factors include:
environmental conditions, installation conditions, measuring range used,
moving speed and acceleration.
Dimension(mm/inch):
Application example: Draw-mechanism for servo flange encoder with 6 mm shaft, measuring range 0 m ...5 m
Kindly note: this product does not contain an encoder
==========
Model Number : BSL-GA130
Certification : none
Origin : Mainland China
Measuring length up to : 0 m ... 5m
Circumference of drum : 385mm
ProductSiteLaunchDate : 2024-10-17T07:55:10.068Z
Size : One Size
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 31152200
