Specification
Brand : HANGKAI
BulletPoint1 : Max30mm Spreading Stroke,8T Pressure -- this product can meet different working requirements and allow for fast and efficient separation work, saving time and effort.
BulletPoint2 : 10mm Thick Tip -- As long as the width of the socket is greater than 10mm, it can be inserted for separation. The ZG3/8" quick couplings allow you to simply connect the flange spreader to the hydraulic pump, and then you can start to use it.
BulletPoint3 : Oil Return Switch -- When the separation is complete, you can quickly return the oil to the pump through the oil return switch. Its ON and OFF marks help avoid wrong operations.
BulletPoint4 : Split Design -- The flange spreader and manual hydraulic pump can be freely dismantled according to your needs. The manual hydraulic pump can also be used for other equipment, which is very economical and convenient.
BulletPoint5 : Application -- It can be widely used for pipeline maintenance/repair/inspection, flange/valve replacement, cylinder head opening, power plant, jacking work, maintenance gasket, pressure vessel, bearing disassembly, oil and electric drilling, motor rotor disassembly, offshore platform, shipbuilding, fire breaking, industrial equipment, power maintenance, construction work, fire safety, horizontal movement of workpieces and other industry fields.
IncludedComponents1 : 1* Flange Spreader
IncludedComponents2 : 1* Hydraulic Pump
ItemName : 8T Split Hydraulic Spreader 30mm Spreading Stroke,Manual Flange Splitter 10mm Thick Tip,Hydraulic Pliers Flange Spreader w/Hydraulic Pump
ItemTypeKeyword : spreader-clamps
Manufacturer : Amobink
Material : Cr45 Steel, Plastic
ModelName : 8T Split Hydraulic Spreader 30mm Spreading Stroke
ModelNumber : JZONT3X8WDWMT
ProductDescription :

Specification

Material: Cr45 Steel, Plastic

Process: Heat Treament

Assembly Required: Yes

Working Type: Hydraulic Pressure

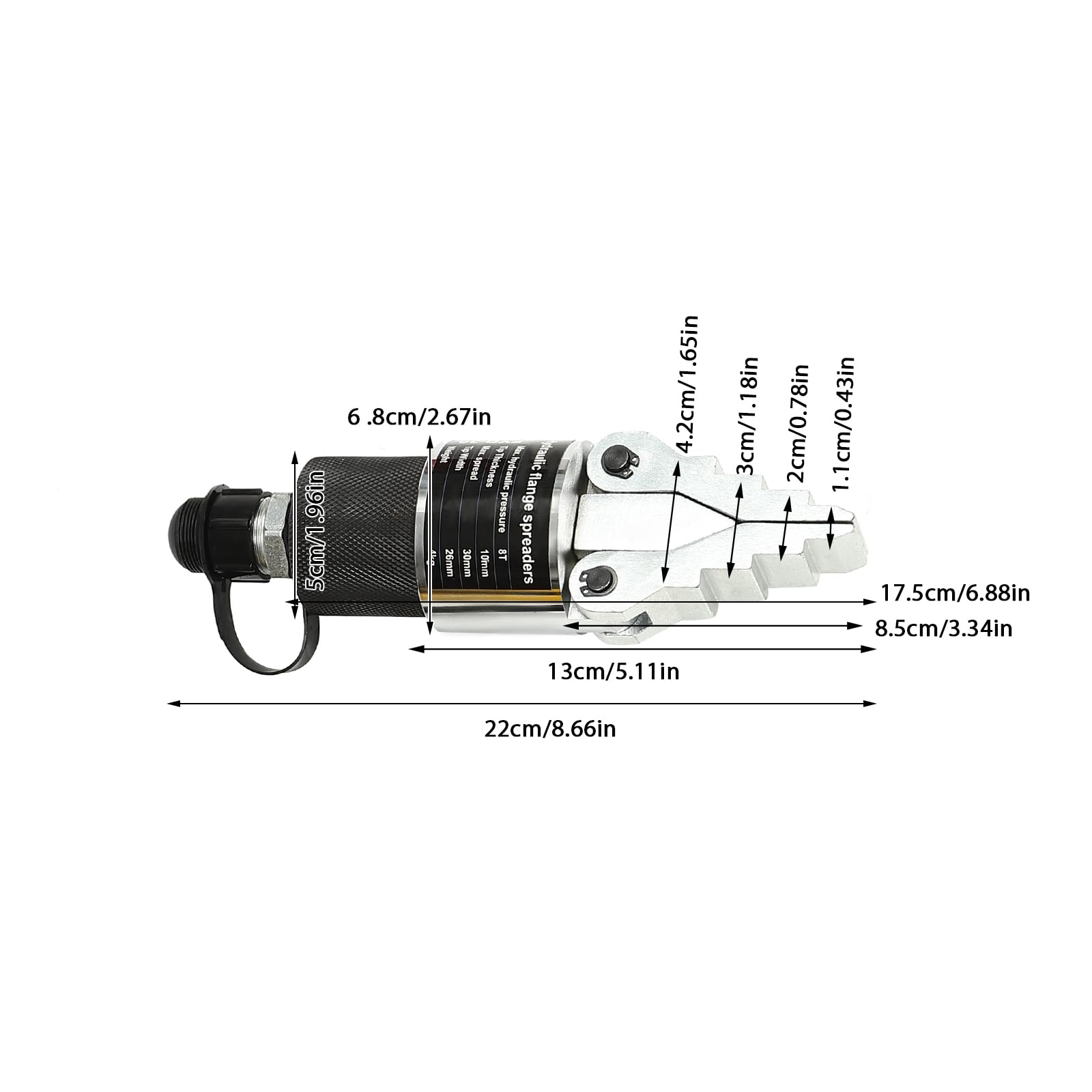

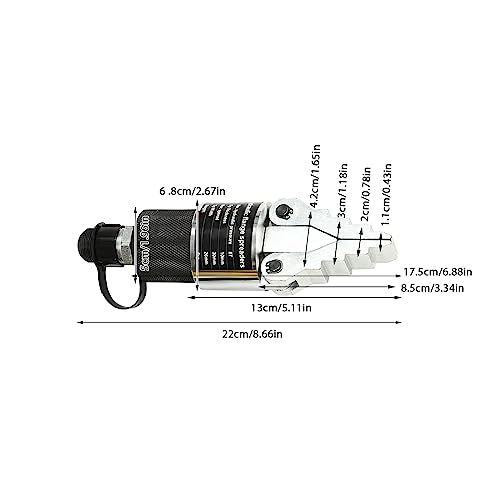

Flange Spreader Model: FYQ-30

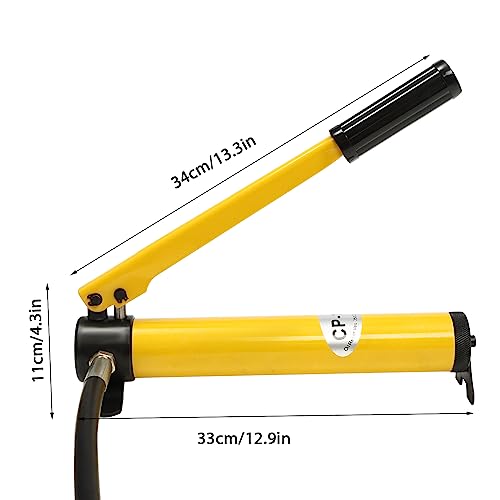

Hydraulic Pump Model: CP-180

Oil Storage Capacity: About 1L/33.8oz

Threaded Connector Specification: ZG3/8

Max. Hydraulic Output: 8T/17637 1bs

The Thickness of the Tip: 10mm/0.39in

Max. Separation Distant of Tip: 30mm/1.18in

The Width of the Tip: 26mm/1.02in

Hydraulic Pump Size: 33*34*11cm/13*13.4*4.3inch

Hydraulic Pump Hose Length: About 1m/3.28ft

Package Size: 37.5*22.5*16.5cm/14.76*8.86*6.5in

Gross Weight: 7kg/15.43 1bs

Package Included

1* Flange Spreader

1* Hydraulic Pump

Notes

1.Please do not use it overpressure. Please timely replace the O-ring oil seal if it is broken.

Please do not lengthen the handle yourself, otherwise, it may easily cause pump overpressure and damage to oil seal accessories.
