SpecificationBrand : FTUREPAC

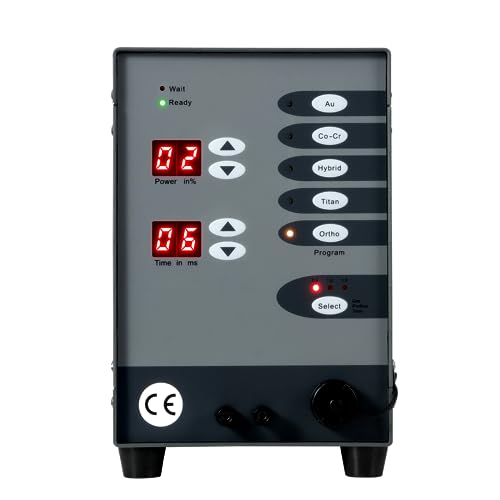

BulletPoint1 : [5 in 1 welding machine] Gold welding, cobalt chrome alloy welding, hybrid welding, pure titanium welding and orthodontic mode can be found on this automatic spot welder to meet your various needs at once.
BulletPoint2 : [Powerful] The current can be increased from 50A to 600A, and the advanced MCU control system and IGBT inverter technology digitally control the welding process, combined with the high-frequency magnetic ring transformer, provide reliable, high-quality arc starting and smooth and stable arc.
BulletPoint3 : [Safety in use] If not operated within 5 minutes, it will automatically adjust to orthogonal mode to avoid accidental injury to people or objects. The protective cover of the handle socket can effectively prevent foreign objects or liquids from entering the machine. Automatic voltage compensation, over-current protection, overload protection and over-temperature protection maximize your safety.
BulletPoint4 : [Easy to operate] After selecting the welding mode, the current and voltage can be matched automatically, which is ideal for beginners to learn to weld; the current and welding duration can also be adjusted according to the needs, which is very suitable for professionals.
BulletPoint5 : [Welding principle] Clamp the welding circuit clamp on the workpiece, grasp the welded workpiece so that the weld touches the tip of the tungsten electrode. Do not use too much force in the left space of the automatic retraction, the spot welder will weld naturally.
Color : Black
IncludedComponents1 : 1*Pulse Argon Arc Welding Machine
IncludedComponents2 : 1*Pedestal with a Handle
IncludedComponents3 : 1*Welding Loop Clamp
IncludedComponents4 : 10*Tungsten Needles
IncludedComponents5 : 1*English Manual; All Accessories for Assembly
ItemName : Jewelry Automatic Spot Welding Machine 110V 60HZ Pulse Argon arc Welding Machine Jewelry Welding Machine, 50-600A Automatic Spot Welder for DIY Jewelry Repair Tools
ItemTypeKeyword : spot-welding-equipment
Manufacturer : FTUREPAC
Material : Iron, Copper, PC Circuit Board, PE
ModelName : welding machine
ModelNumber : pulse argon arc welding machine
PartNumber : K22137UHXBCA93
PowerSourceType : AC
ProductDescription :
Application
It can be used for pure gold welding, cobalt-chromium alloy welding, titanium welding and orthodontics, hardware workpiece welding, jewelry repair welding, dental welding, jewelry DIY, outdoor maintenance, and home DIY with material thickness ranging from 0.8 to 3.5mm.
Specifications
Material: Iron, Copper, PC Circuit Board, PE
Color: Grey
Surface Treatment: Spray-paint
Power Source: Electric Corded
Assembly Required: Yes
IP Grade: IP21
Input Power: 100W
Voltage: 110V, 60Hz
Welding Voltage: 40V
Welding Time: 3ms-30ms
Welding Current: 50A-600A
Protective Tube: 250V, 2.0A
Gas Supply Pressure: 0.1Mpa
Maximum Welding Frequency: 1Hz
Max Argon Consumption: 5L/1.32gal/min
Handle Length: 19cm/7.48in
Power Cord Length: 1.2m/3.93ft
Handle Connection Wire Length: 86cm/33.85in
Handle Bracket Size(L*W*H): 15*11.5*2cm/5.9*4.52*0.78in
Applicable Material Thickness: 0.8-3.5mm/0.031-0.137in
Gross Weight: 7.35kg/16.2lbs
Net Weight: 6.7kg/14.77lbs
Product Size: 15*28*22cm/5.9*11*8.66in
Package Size: 32.5*28*32cm/12.8*11*12.6in
Package Included
1*Pulse Argon Arc Welding Machine
1*Pedestal with a Handle
1*Welding Loop Clamp
10*Tungsten Needles
1*English Manual
All Accessories for Assembly
Notes
1. Please carefully read the manual and strictly follow the precautions to have a better experience.
2. Please note that this product does not include argon cylinders.
3. Please ensure that children stay away from this product.
4. Please cover the dust cover of the handle socket when not in operation to prevent foreign objects or liquids from entering the interior of this product.
5. If there is an electroplated layer on the metal surface, it is recommended to polish off the electroplated layer to facilitate better tight welding.
6. Please use this product in a well-lit and ventilated environment, and keep it away from heat sources, oil stains, and other sharp tools.
7. This product will emit dazzling arc light during operation, please be careful to avoid eye damage.
ProductSiteLaunchDate : 2024-08-20T09:46:09.953Z
Size : ENLISH
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 23270000
Voltage : 110 volts
Wattage : 100 watts
