Specification Brand : Reland Sun BulletPoint1 : The spot welder control module is developed for DIY or simple battery welder. It is mainly used for single battery or battery group nickel plated sheet welding BulletPoint2 : This module includes main board and display board, optional 40A/100A bidirectional silicon control tectifier, does not include welding transformers, welding pen and other matching tools BulletPoint3 : Scope of use: 1. DIY or simple battery welder development welding; 2. Welding of a single battery or battery pack BulletPoint4 : With the grid voltage compensation function, the compensation output can be automatically adjusted according to the change of the power supply, and the electric voltage and compensation value of about 1 second can be displayed when triggered, so that the effective heat of welding is consistent with the welding parameters, and the solder joint is uniform. BulletPoint5 : This is double pulse trigger BulletPoint6 : Needs To Be Connected To Electric Welding Machine Color : As Shown ExternallyAssignedProductIdentifier : 7842007426604 ExternallyAssignedProductIdentifier1 : 0756552865238 ExternallyAssignedProductIdentifier2 : 756552865238 FinishType : Finish FinishType1 : Finish FinishType2 : Finish FinishType3 : Finish FinishType4 : Finish FinishType5 : Finish IncludedComponents : 1Set X Spot Welder Plier+Wire IncludedComponents1 : inc IncludedComponents2 : inc IncludedComponents3 : inc IncludedComponents4 : inc IncludedComponents5 : inc ItemName : 40A 100A Digital Double Pulse Encoder Spot Welder Welding Transformer Controller Board with LCD Display (100A) ItemPackageDimensions_Height : 9 centimeters ItemPackageDimensions_Length : 18 centimeters ItemPackageDimensions_Width : 12 centimeters ItemPackageQuantity : 1 ItemTypeKeyword : spot-welding-equipment Manufacturer : Reland Sun Material : Epoxy Board+Aluminum Material1 : Material Material2 : Material Material3 : Material Material4 : Material Material5 : Material Material6 : Material Material7 : Material Material8 : Material Material9 : Material NumberOfItems : 1 PartNumber : 756552865221 PowerSourceType : PowerSource ProductDescription : 40A/100A Digital Double Pulse Encoder Spot Welder Welding Transformer Controller Board with LCD Display

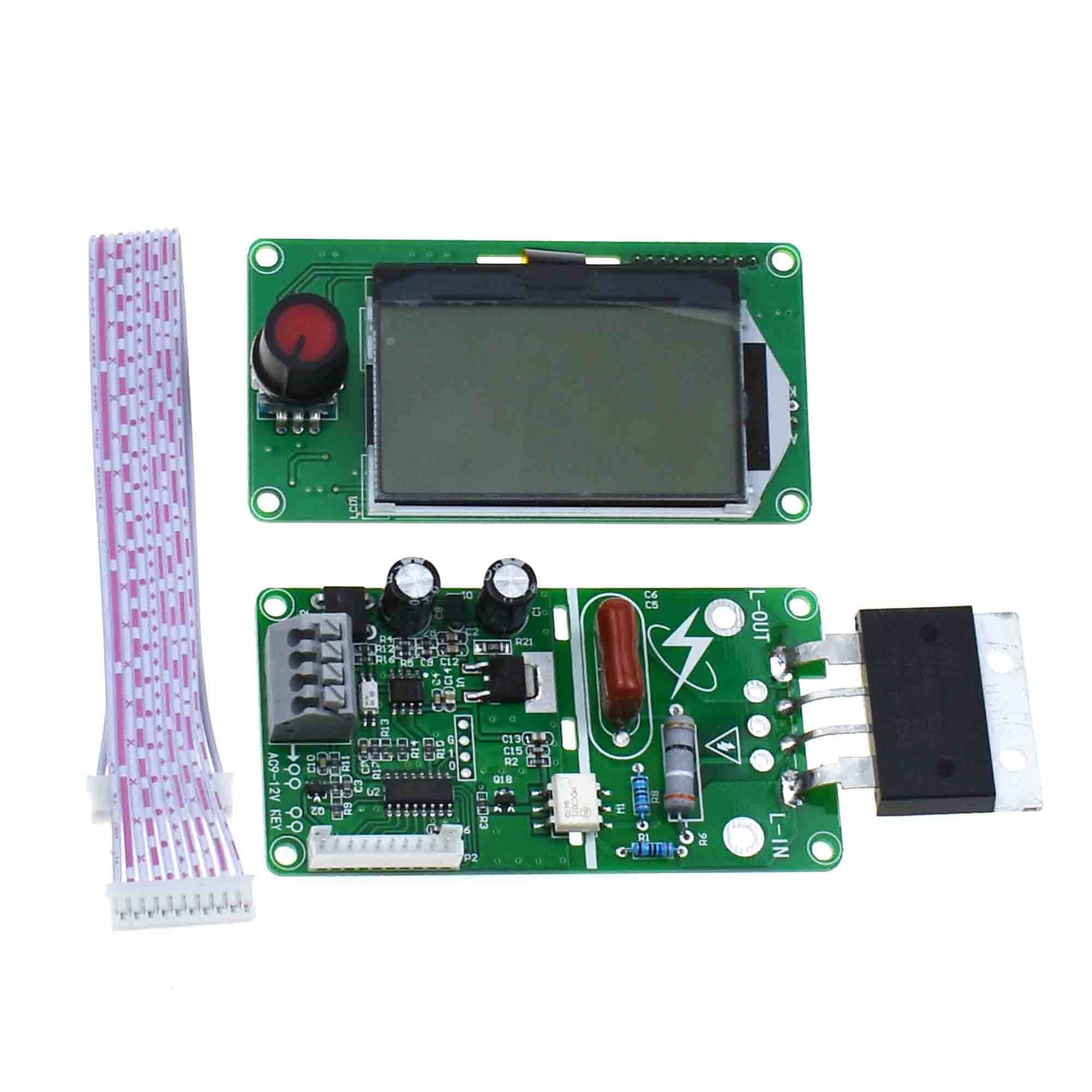

Description: The spot welder control module is developed for DIY or simple battery welder. It is mainly used for single battery or battery group nickel plated sheet welding, such as18650 lithium battery nickel plating 0.15 and 0.2mm steel sheets, transformer above500W can be welded directly. It is intended to weld other battery materials and different thickness, such as polymer battery electrode without nickel plating, must be combined with sufficient power transformer to weld.
Functional overview: 1. Can be set to save the last operation, this module single pulse trigger 2. The main board and the display operation panel are separated, and the outer casing can be flexibly assembled. 3. The power input and external trigger adopt convenient and quick welding free terminal, the external trigger can be diversified, such as normal switch, foot switch, external signal source input, etc., the software has anti-lock state, triggering to the end of welding, for one round. For example, the pedal switch has been trampled all the time, can only trigger one round 4. With the grid voltage compensation function, the compensation output can be automatically adjusted according to the change of the power supply, and the electric voltage and compensation value of about 1 second can be displayed when triggered, so that the effective heat of welding is consistent with the welding parameters, and the solder joint is uniform. 5. With 0-999 welding counting function,can be stored even the electricity power is off, the number of wleding could be seen just by a glance. To clear the count number, just press and hold the encoder for 3 seconds.
