Specification
Brand : WAAZVXS
BulletPoint1 : Model: GDL150-40-12Z/12; Diameter (mm): 150mm; Cooling method: water cooling
BulletPoint2 : Speed regulation mode: The three-phase output inverter can change the spindle speed by changing the frequency of the inverter.
BulletPoint3 : Power: 12kw; Voltage: 380V; Current: 25A; Torque: 9.55Nm; Frequency:400HZ; Speed: 12000RPM
BulletPoint4 : Number of poles: 4P; Phase: 3 phase asynchronous driver; Bearing: 2*SM6011C/P4,2*7008C/P4
BulletPoint5 : Rotation: Seen from the shaft end, it rotates counterclockwise; Tool handle: BT40; Pull stud: BT40-45°
Color : 12.0kw 380V
CoolingMethod : Air
ExternallyAssignedProductIdentifier : 7807792538574

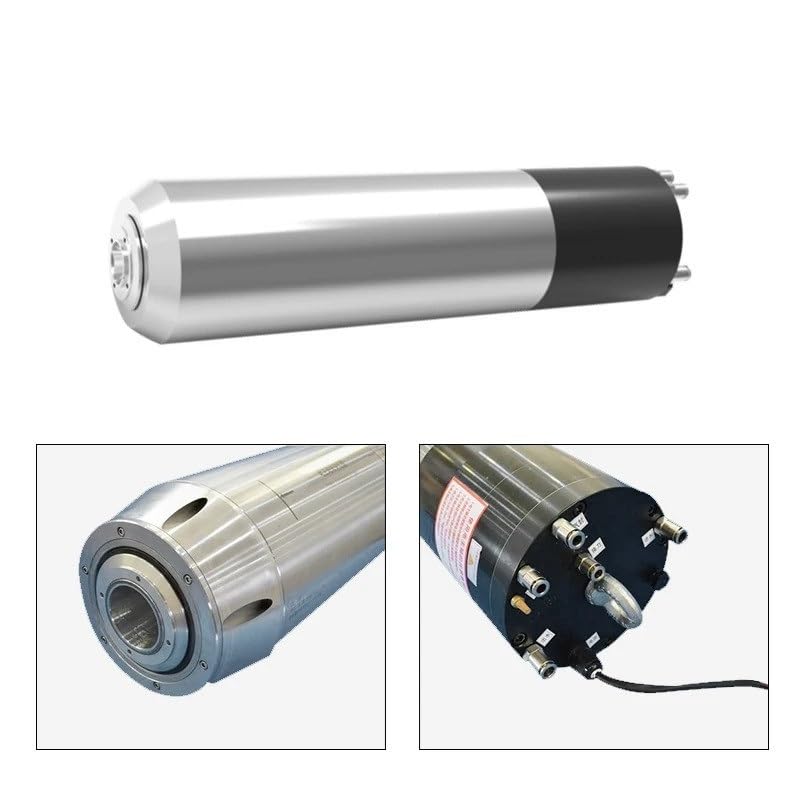

ItemName : WAAZVXS GDL150-40-12Z/12kw 380V Water Cooling Spindle Motor BT40 Automatic Tool Changer Spindle 150mm for Metal Cutting
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : power-spindle-sanders
Manufacturer : WEIWEIBEIER
Material : metal
MaximumRotationalSpeed : 24000 rpm
MetalType : other
ModelName : WWBR
ModelNumber : WWBR
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : WWBR
ProductDescription : Grease lubricationMain use: Carving wood, PCB, PVC, PM-MA, plastic, two-color board (ABS) and other non-metals.1.Double sealing and air sealing structuredouble sealing air seal structure greatly improves the waterproof performance, widely used in copper, aluminum, steel and other gold is a carving and cutting and stone and CNC fine carving processing center field2.Equipped with standard BT40 taper holesThe shaft ends are connected with standard BT40 taper holes. The spindle adopts 4 imported high-precision P4 bearings, which effectively ensures the operation and machining accuracy of the spindleThe working environment temperature of the spindle is usually -1040.Before installing the first electric spindle to rotate the spindle head by hand, you should feel flexibility and no blockage.P4 fully sealed angular contact ceramic bearings can extend the service life of the spindle.The longer the length, the greater the torque and the greater the power.Careful assembly makes the spindle more precise.The accuracy is 0.01mm, and the coaxial cable is less than 0.0025mm1. Our main shaft uses 4 bearings.2. Bearings are resistant to high temperature and low heat3. Ceramic ball bearings have low friction, low noise and long service life.The water-cooled spindle must be used together with the water pump. Otherwise, the spindle will quickly break.The AC spindle motor must be used together with the inverter. The power of the inverter needs to be equal to or greater than the power of the spindle. Before use, please set the inverter parameters suitable for the spindle. Otherwise, the spindle and inverter will break immediately.When using the spindle, the noise is different from before, so please stop the spindle immediately. You need to replace the spindle bearing.1. The electric spindle must be installed in the clamping position, otherwise it is easy to cause damage to the bearing!2. The sp
ProductSiteLaunchDate : 2024-05-17T08:36:33.385Z
Size : One Size
Style : Modern
UnitCount : 1
UnspscCode : 23240000
Voltage : 220 volts
Wattage : 1.5 kilowatts
