Specification
Brand : pizarra
BulletPoint1 : The 50535-300MHz frequency range of the si5351 direct output provides 70dB dynamic. The extended 300M-600MHz band provides 60dB of dynamics, and the 600M-900M band is 50dB of dynamics.
BulletPoint2 : This is a DIY product that provides perfect vector network measurement capabilities in the size of a credit card. It includes a 2.8-inch touch screen and 450mAh battery, which can be used offline for 2 hours. For longer measurement, please connect external power supply or contact me to make a larger battery version. The TX/RX can measure the complete S11 and S21 parameters.
BulletPoint3 : Simple and practical PC control software, you can export Touchstone (snp) files for various radio design and simulation software through PC software. The improved frequency algorithm can use the odd harmonic extension of si5351 to support the measurement frequency up to 900MHz. The metal shield is designed to reduce the external interference and improve the measurement accuracy.
BulletPoint4 : If you need to obtain S12 and S22, you need to manually replace the transceiver port wiring.
BulletPoint5 : Stable Structure and Excellent Performance: The vector network analyzer possesses a stable structure, which helps maintain its accuracy and reliability during measurements. It is designed to deliver excellent performance, providing practical and accurate analysis results.
Color : As Shown
ExternallyAssignedProductIdentifier : 4712121011686

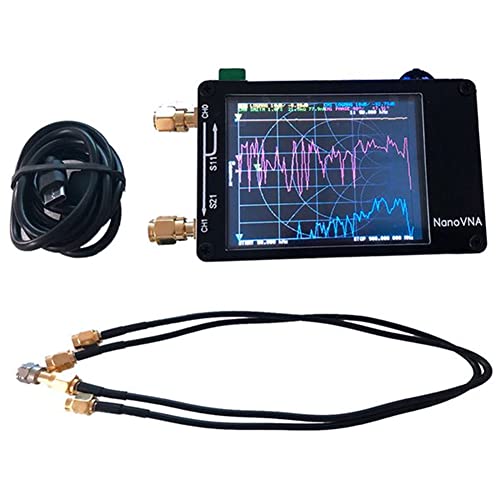

ItemName : pizarra VNA 2.8 Inch Network Analyzer Antenna Analyzer 50KHz - 900MHz Antenna Analyzer Built-in Battery
ItemPackageDimensions_Height : 4 centimeters
ItemPackageDimensions_Length : 13 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : spectrum-analyzers
Manufacturer : pizarra
ModelNumber : 9G male three-piece set
NumberOfItems : 1
PartNumber : 500353234
Pattern : 9G male three-piece set
ProductDescription : pizarra Basic performance:
PCB: 54mm x 85.5mm x 11mm (without connectors, switches)
Measurement frequency: 50KHz ~ 300MHz (50KHz -900MHz, enable extended firmware)
RF output: -13dbm (maximum -9dbm)
Measurement range: 70dB (50kHz-300MHz), 60dB (300M-600MHz), 50dB (600M-900MHz) enable extended firmware);
Port SWR: Less than 1.1
Display: 2.8 inch TFT (320 x240)

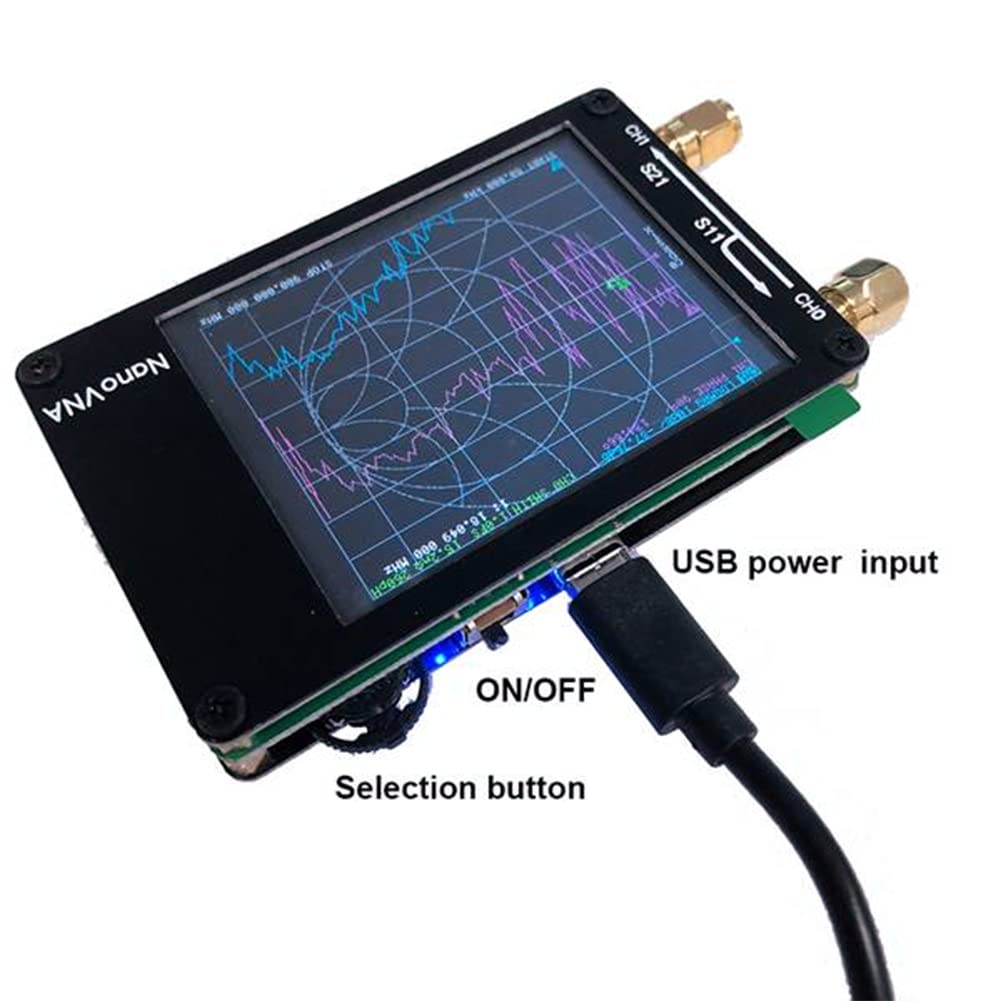

USB interface: USB type-C communication mode: CDC (serial)
Power: USB 5V 120mA, built-in 450mAh battery, maximum charging current 0.8A
Number of scanning points: 101 (fixed)
Display Tracking: 4, Marking: 4, Setting Save: 5
Measuring S parameters, voltage standing wave ratio, phase, delay, chart...
Material: plastic+metal
Color: as shown

Package Contents:
1 x host (with 450mAh battery)
1 x USB Type-C data cable
2 x 30mm SMA male to male RG174 RF cable
1 x SMA female to female connector

Only the above package content, other products are not included.
