Specification
Brand : Asixxsix
BulletPoint1 : Horizontal Design: The portable spectrophotometer features a low center horizontal design, ensuring a stable measurement on the surfaces being tested. This design minimizes the risk of tipping or movement during the measurement process, resulting in more stable data. The integrated observation window also allows users to monitoring the measurement position easily, preventing errors in positioning.
BulletPoint10 : Handheld Light Spectrometer GB 40070-2021, JJG_245-2018, GB55016-2021, GB∕T 5702-2019, GB∕T 5702-2019, GB∕T 5699 -2017, GBT 5700-2008, GBT 24824-2009, GB30734-2014, GBT 9473-2017 and other lighting standards. Single test, continuous test, timed test, multi-point test, timed save. CIE1931, CIE1960, CIE1976, color rendering index, spectral similarity index, spectral fit
BulletPoint2 : High Accuracy: The repeatability accuracy of a digital lab spectrophotometer is a crucial performance indicator, and this model excels with a nano spectroscopic device. Its repeatability accuracy is unparalleled in its category, achieving a dExab value of ≤0.02. This means users can consistently obtain accurate measurements, which is essential for quality control and research applications.
BulletPoint3 : Comprehensive Measurement Capabilities: This portable color difference meter provides over 30 different measurement indicators, including spectrum reflectance, CIE-Lab, CIE-LCh, ΔExab, opacity, whiteness, and yellowness. Such comprehensive capabilities allow it to meet a broad range of measurement needs, making it an ideal choice for industries that require detailed color analysis.
BulletPoint4 : Versatile Lighting Options: With nearly 40 selectable evaluation light sources, including A, B, C, D50, D55, and D65, this digital spectrophotometer can accommodate almost all industry standard color measurement parameters and lighting conditions. This versatility enables users to conduct color assessments under various lighting scenarios, enhancing the instrument's usability across different applications.
BulletPoint5 : Good Performance: Given its exceptional accuracy, extensive measurement capabilities, and adaptability, this color spectrometer is an indispensable tool for quality control in manufacturing, research in materials and coatings, and any application where accurate color measurement is useful.
BulletPoint6 : Digital Spectral color illuminance meter Measurable items:1) Correlated color temperature Tc2) Illuminance lx3) Irradiance Ee(W/m²)4) Color coordinates (x,y), (u,v), (u ′,v ′)5) Relative spectral power distribution P(λ)6) Color rendering index Ri(i=1~15)7) Color renderingindex CRI (Ra); AvgR8) Color rendering index (spatial diagram)9) Color coordinate diagram CIE1976 CIE1960 CIE193110) Color Tolerance Diagram SDCM (McAdam Ellipse, Rectangular Frame and CIEu'v' Circle National Standard, ANSI Standard, EU ERP Standard)11) Dominant wavelength, peak wavelength, center wavelength, centroid wavelength, half width12) Ratio of light and dark vision to S/P
BulletPoint7 : Digital Spectral illuminance meter Main specifications:1 . TCD1304 DG CCD detector, band response range 380-780 nm 2 . Enhanced coated grating : number of lines : 1200 linesWavelength range 380nm～780nm Spectroscopic mode Telephoto cross asymmetric CT spectroscopy system Sensor High-precision CCD Spectral Bandwidth(FWHM)2nm Spectral resolution 0.1nm x,y coordinate values x,y accuracy ±0.0015 ; x, y repeatability ± 0.0005
BulletPoint8 : Light Spectrum Analyzer Spectral Irradiance meter Overview Illumi nance accuracy Level 1 ( ±4% reading ± 1 reading) intelligent spectrum power meter is a new generation of handheld wireless intelligent spectrum illumi nance meter, which integrates advanced micro-spectrometer, embedded operating system and microcomputer technology, 3.5-inch high-definition capacitive touch screen, Bluetooth mobile phone APP, applet, PC software. On-site test application is more convenient and simple, one-click sharing, more in line with the parameter test analysis
BulletPoint9 : Light Spectrum Meter It can sample and measure light source parameters anytime and anywhere, and can also be connected to PC software test in the laboratory to efficiently analyze and process the test data saved by on-site test, with extremely high measurement linearity and accuracy.
Color : silver
IncludedComponents : Handheld spectrometer

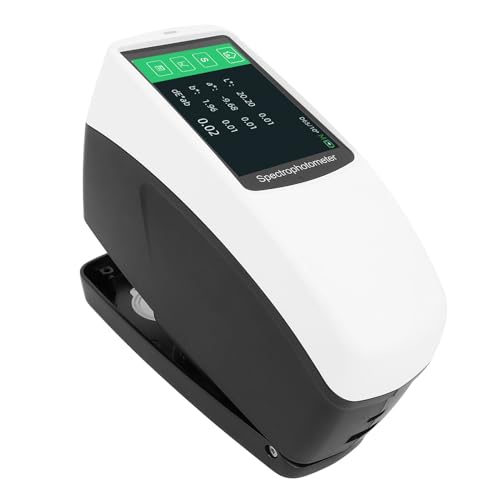

ItemName : Portable Spectrophotometer, UV/Visible 400-700nm Digital Spectrophotometer, Ultra High Repeatability, Spectral Data and Delta E Functionality, Laboratory Analytical Equipment
ItemPackageDimensions_Height : 18 centimeters
ItemPackageDimensions_Length : 30 centimeters
ItemPackageDimensions_Width : 30 centimeters
ItemTypeKeyword : science-lab-spectrophotometers
Manufacturer : Asixxsix
MeasurementAccuracy : 1um to 50um
MeasurementType : Ohmmeter, Voltmeter, Multimeter, Ammeter, LCR Meter
ModelName : Asixxsix9eq8gvdw1k
ModelNumber : Asixxsix9eq8gvdw1k
NumberOfItems : 1
PartNumber : Asixxsix9eq8gvdw1k
PowerSourceType : Battery Powered
ProductDescription : Spec:
Item Type: Spectrophotometer
Model: DS62
Measurement Geometry: D/8, SCI+SCE
Combined Measurement of SCI+SCE: Supported
Integrated Physical Positioning Hole: Supported
Measurement Reproducibility: dExab≤0.02
Display Accuracy: 0.01
Illumination Source: Full Band Balanced LED Light Source
Light Source: Supported
Aperture: Diameter Approx. 11mm / 0.43in, 6mm / 0.24in, 3mm / 0.12in
Measured Indices: Spectrum Reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE-Luv, XYZ, Yxy, RGB Color Difference (ΔExab, ΔExcmc, ΔEx94, ΔE*00), Whiteness (ASTME313-00, ASTME313-73, CIE, ISO2470, R457, AATCC), Yellowness (ASTM D1925, ASTM E313-00, ASTM E313-73), Blackness (My, dM), Color Fastness, Color Change Fastness, Tint (ASTM E313-00), Color Density CMYK (A, T, E, M), Metamerism Index Milm, Munsell, Hiding Power, Strength (Dye Strength, Coloring Power)
Light Sources: A, B, C, D50, D55, D65, D75F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12CWF, U30, U35, DLF, NBF, TL83, TL84, ID50, ID65, LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2
Software Support: for Andriod, for iOS
ccuracy Assurance: Measurement Guarantee
Viewing Angle: 2°10°
Integration Sphere Diameter: Approx. 40mm / 1.57in
Compliance with Standards: CIENo.15, GB/T3978, GB2893, GB/T18833, ISO7724-1, ASTME1164, DIN5033T7
Spectroscopic Mode: Nano Spectrophotometer
Sensor: Double 16 Group Silicon Photodiode Array
Wavelength Interval: 10nm
Wavelength Range: 400-700nm
Reflectance Measurement Range: 0-200%
Reflectance Resolution: 0.01%
Measurement Time: Approx. 1 Second
Battery Capacity: 7.2V Rechargeable Li Battery 3000mAh x 1 (Included)
Data: Instrument: 10000 Data, APP: Massive Storage

packing list:
1 x Spectrophotometer
1 x Base
1 x USB cable
2 x Measuring
ProductSiteLaunchDate : 2024-12-18T15:40:13.608Z
Style : Compact
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 53120000
