Specification
Brand : HOJILA
BulletPoint1 : LS176 Spectrophotometer uses a full spectrum balanced LED light source to avoid the problem of white LEDs missing the spectrum in specific wavelengths, making measurements more accurate
BulletPoint2 : The colorimeter uses the D/8 international universal illumination method, including specular reflected light (SCI), for a wide range of applications
BulletPoint3 : Quick matching of color cards: It includes multiple electronic color cards to quickly match the nearest color card number, with matching accuracy of over 90%
BulletPoint4 : QC function: QC function allows users to quickly assess color accuracy against existing standards and realize rapid batch inspection
BulletPoint5 : Rich color index: Supports a wide range of color measurement index to meet the needs of various CIE certifications including CIE XYZ, CIE Yxy, CIE LAB, Hunter LAB, CIE LCH, CME, CIE94, whiteness and yellowness
BulletPoint6 : Spectral reflectance curves: Provides professional spectral reflectance curves from which the user can obtain information on the hue, saturation and shade of the sample color
BulletPoint7 : It is widely used in the industries of automotive paint, hardware processing, stone, decorative materials, and plastic.
ExternallyAssignedProductIdentifier : 7648244102659
IncludedComponents : Spectrophotometer
ItemName : LS176 Spectrophotometer, Handheld Colorimeter for Color Matching, 3.5-inch Touch Screen, QC Testing Function, Date Output
ItemTypeKeyword : science-lab-spectrophotometers
Manufacturer : HOJILA
ModelNumber : LS176
NumberOfItems : 1
PartNumber : LS176

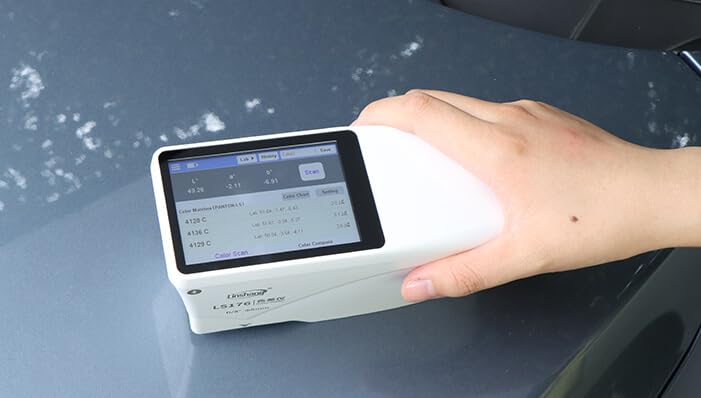

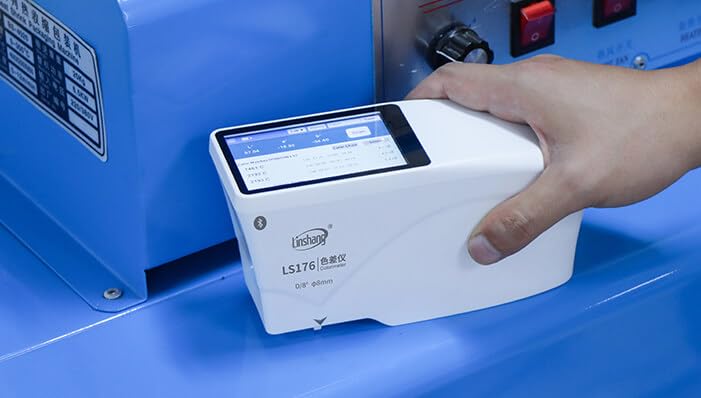

ProductDescription : LS176 is a handheld multifunctional colorimeter with a 3.5 inch IPS color capacitive touch screen for an excellent experience. The instrument integrates many color cards, which can be matched to the nearest color card number for the sample color. It also has a color comparison function, a variety of color difference formulas to choose from, allowing for quick QC testing. The instrument meets the requirements about Grade 1 colorimeter in the JJG 595-2002 "Verification Regulation of Colorimeters and Color Difference Meters" in all directions.

Specifications:
Illumination geometry: D/8, specular component include (SCI)
Illumination light source: Full spectrum LED light source
Spectral Range: 400-700nm
Spectral Interval: 10nm
Measuring aperture: 8mm
Measurement conditions: Light source D65, field of view 10°
Measuring time: About 1s
Color space: CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex, WI-98, WI-Gauz, WI-Hunter, YI-98, Reflectance
Color difference formula: ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00
Repeatability: Standard deviation ΔE*ab is within 0.03 (Measurement condition: the average value of 30 measurements on the whiteboard at an interval of 3s after calibration)
Inter-Instrument Agreement: △E*ab<=0.4, based on avg. of 12 BCRA series II tiles
Dimension: 179mm*64.5mm*93mm
Weight: About 325g
Power supply: Rechargeable lithium battery 3.7V@4000mAh, can measure 10,000 times continuously under full charge
Display: 480 * 320 dot matrix IPS color screen
Language: Simplified Chinese, English
Charging port: USB (Type-C)
Operating temperature range: 0~45℃, 0~85%RH (no condensation)
Storage temperature range: -25~55℃, 0~85%RH (no condensation)

Packing List:
1 x Colorimeter
1 x USB cable
1 x Cleaning cloth
1 x Locating plate
1 x User manual
1 x Certificate / Warranty card
1 x Calibration Report
