Product Information
Editorial Review
Power Rating Watts 450W Music Program 900W Resonance 33Hz Usable Frequency Range 52Hz-2.3kHz Sensitivity 100.5 Magnet Weight 80 ounce Gap Height 0.375", 9.53mm Voice Coil Diameter 3", 76.2mm THIELE and SMALL PARAMETERS Resonant Frequency (FS) 33Hz DC Resistance (Re) 5.22 Coil Inductance (Le) 1.05mH Mechanical Q (QMS) 8.90 Electromagnetic Q (QES) 0.33 Total Q (QTS) 0.32 Compliance Equivalent Volume (Vas) 321.3 liters / 11.35 cu.ft. Peak Diaphragm Displacement Volume (VD) 343cc Mechanical Compliance of Suspension (CMS) 0.31mm/N BL Product (BL) 15.7 T-M Diaphragm Mass Inc. Air load (Mms) 76 grams Efficiency Bandwidth Product (EBP) 98 Maximum Linear Excursion (XMAX) 4.0mm Surface Area of Cone (SD) 856.3 cm2 Maximum Mechanical Limit (XLIM) 11.6mm MOUNTING INFORMATION Recommended Enclosure Sealed Vented 45-113 liters/1.6-4 cu.ft. Overall Diameter 15.16", 384.9mm Baffle Hole Diameter 13.77", 349.6mm Front Sealing Gasket fitted as standard Rear Sealing Gasket fitted as standard Mounting Holes Diameter 0.25", 6.4mm Mounting Holes B.C. D. 14.56", 369.9mm Depth 6.13", 156mm Net Weight 17.6 lbs., 8 kg Shipping Weight 19.8 lbs., 9 kg MATERIALS OF CONSTRUCTION Coil Construction Copper voice coil Former Polyimide former Magnet Composition Ferrite magnet Core Details Vented core Basket Materials Pressed steel basket Cone Composition Paper Cone Edge Composition Cloth cone edge Dust cap Composition Solid composition paper dust cap
Features
1) Composition Solid composition paper dust cap
2) Nominal Basket Diameter 15", 381mm
3) Nominal Impedance 8 ohms
Specification
Binding : Wireless Phone Accessory
Brand : Eminence
EAN : 0876358000296
HardwarePlatform : CONSUMER_ELECTRONICS
Label : DJ Tech Pro USA, LLC
LegalDisclaimer : Warranty does not cover misuse of product.
Manufacturer : DJ Tech Pro USA, LLC
Model : KAPPA15A
PackageDimensions_Weight : 1940.00 hundredths pounds
PackageDimensions : L:18.40 X W:17.00 X H:7.50
ProductGroup : Musical Instruments
ProductTypeName : SOUND_AND_RECORDING_EQUIPMENT
Publisher : DJ Tech Pro USA, LLC
Size : 15 Inch
Studio : DJ Tech Pro USA, LLC

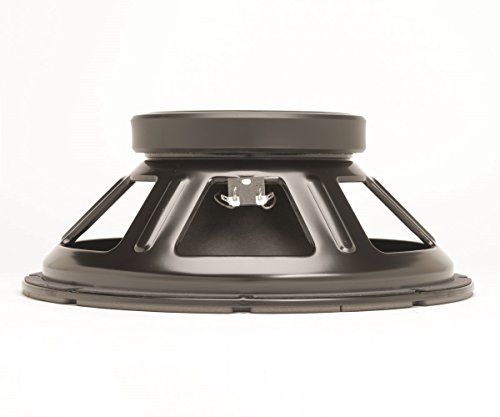

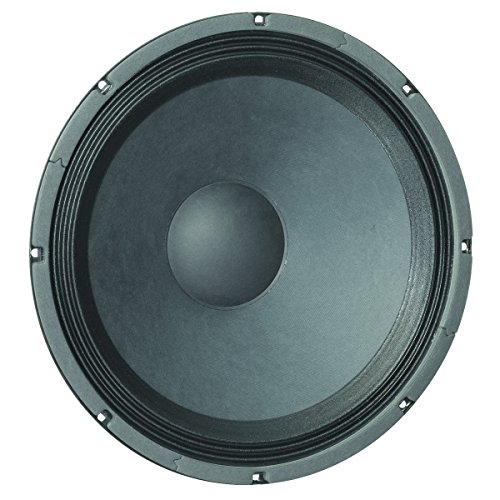

Title : Eminence American Standard Kappa 15A 15" Replacement Speaker, 450 Watts at 8 Ohms
Power Rating Watts 450W Music Program 900W Resonance 33Hz Usable Frequency Range 52Hz-2.3kHz Sensitivity 100.5 Magnet Weight 80 ounce Gap Height 0.375", 9.53mm Voice Coil Diameter 3", 76.2mm THIELE and SMALL PARAMETERS Resonant Frequency (FS) 33Hz DC Resistance (Re) 5.22 Coil Inductance (Le) 1.05mH Mechanical Q (QMS) 8.90 Electromagnetic Q (QES) 0.33 Total Q (QTS) 0.32 Compliance Equivalent Volume (Vas) 321.3 liters / 11.35 cu.ft. Peak Diaphragm Displacement Volume (VD) 343cc Mechanical Compliance of Suspension (CMS) 0.31mm/N BL Product (BL) 15.7 T-M Diaphragm Mass Inc. Air load (Mms) 76 grams Efficiency Bandwidth Product (EBP) 98 Maximum Linear Excursion (XMAX) 4.0mm Surface Area of Cone (SD) 856.3 cm2 Maximum Mechanical Limit (XLIM) 11.6mm MOUNTING INFORMATION Recommended Enclosure Sealed Vented 45-113 liters/1.6-4 cu.ft. Overall Diameter 15.16", 384.9mm Baffle Hole Diameter 13.77", 349.6mm Front Sealing Gasket fitted as standard Rear Sealing Gasket fitted as standard Mounting Holes Diameter 0.25", 6.4mm Mounting Holes B.C. D. 14.56", 369.9mm Depth 6.13", 156mm Net Weight 17.6 lbs., 8 kg Shipping Weight 19.8 lbs., 9 kg MATERIALS OF CONSTRUCTION Coil Construction Copper voice coil Former Polyimide former Magnet Composition Ferrite magnet Core Details Vented core Basket Materials Pressed steel basket Cone Composition Paper Cone Edge Composition Cloth cone edge Dust cap Composition Solid composition paper dust cap
Features
1) Composition Solid composition paper dust cap
2) Nominal Basket Diameter 15", 381mm
3) Nominal Impedance 8 ohms
