Specification
Brand : Stove Parts 4 Less
BulletPoint1 : Guaranteed to fit your Harman Pellet Stove,306W Harman Pellet Stove Ignitre
BulletPoint2 : Note: This igniter was 11 fins prior to 2008, 13 fins in stoves 2008-2010, 15 fins from 2011-2018 and is currently 16 fins. This igniter will replace all prior versions. View our detailed installation instructions.
BulletPoint3 : Note: When using this igniter to replace an old style Harman igniter, it may be necessary to also upgrade to the new igniter cradle 1-00-777907. Please visually compare your cradles, the old cradles are no longer supported or made.
BulletPoint4 : Replacement For Part Numbers: 3-20-677200, 1-10-06620, and 3-20-06783
BulletPoint5 : Instructions for replacing the igniter are in the Product Description further down this page.
BulletPoint6 : Technical Specs: Watts:306 Length: 3.25" Width:3/8" Rod With 16 - 1" Fins Connectors: Male Spades
Color : Metal
ExternallyAssignedProductIdentifier : 3481064182890
ExternallyAssignedProductIdentifier1 : 0746622411465
ExternallyAssignedProductIdentifier2 : 746622411465
HeatingCoverage : 75000 btu
HeatingElementType : Radiant
HeatingMethod : Forced Air
HeatOutput : 75000 btus
IncludedComponents : 80472A Replacement part for Distribution Blower

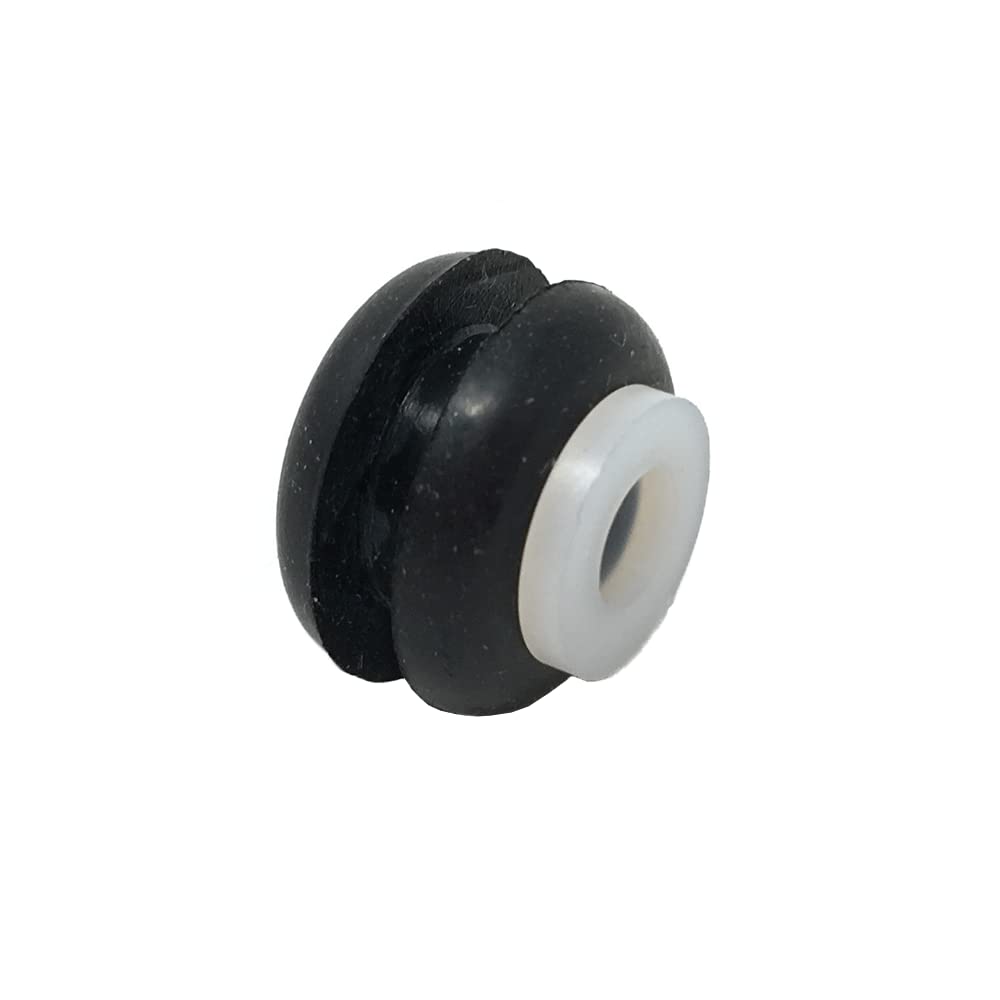

ItemName : Replacement Auger Motor Grommet & Spacer for certain Harman Pellet Stoves, 1-00-960026
ItemPackageDimensions_Height : 6 inches
ItemPackageDimensions_Length : 4 inches
ItemPackageDimensions_Width : 4 inches
ItemTypeKeyword : space-heater-replacement-parts
ItemTypeName : Pellet Stove Igniter
Manufacturer : Stove Parts 4 Less
Material : Rubber and Nylon
ModelName : Harman Pellet Stoves
ModelNumber : 3-20-677200
MountingType : Freestanding
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : 3-20-677200-SP4L
ProductDescription :

Instructions Assembly Instructions

For Harman Pellet Stove Igniter For All Models 306W, 3-20-677200

1. The igniter is located in the burnpot and is accessible from the front through the clean-out door that is secured by the wing nuts. Loosen the wing nuts to remove the cover and access this area.
2. The igniter is accessed and changed through the front of the stove but some access will be needed to the rear of the stove to loosen the wiring
3. From the rear, locate the yellow and light blue wires for the igniter at the point where they pass through the stove, it is directly under the auger. There is an extra length of these wires looped together and secured to the stove that needs to be freed up so that the igniter wire disconnects can be pulled forward removed from the front of the stove. When you have enough wire free, push about 12" of length of the yellow and light blue wires into the cavity of the the stove where they enter to run towards the igniter.
4. From the front of the stove again, remove the two 5/16" or 8mm screws that hold the igniter cradle inside the burnpot. Do not loose these screws as you will need them again.
5. Drop the igniter assembly down and pull it forward until you can see the wire disconnects, then disconnect the wires from the harness and remove the whole assembly.
6. To remove the igniter from the cradle, twist the the two tabs that secure the cradle and the igniter. Your igniter will now be able to be removed. Replace the igniter with your new one, making sure the wires go to the right. Reattach the cradle plate to secure the new igniter, twist the tabs and reinstall the cradle using the two 5/16" or 8mm mounting screws.
7. Pull your wire length back through the stove until the disconnects rear the passthrough. Secure your extra length of wire with a zip tie.
8. Replace the clean-out cover on the burnpot and start up your stove with the new igniter.

ProductDescription1 : The Distribution Convection Room Blower 80472A Pellet Stove Replacement part by B&C Ecom LLC serves two purposes circulating the room air through the stove's heat exchanger, the pellet stove provides heat to the room, and this process also keeps the stove from overheating. It is suggested to replace the high-limit safety snap disc switch when replacing a room blower.
ProductDescription2 : Best Suited for Replacement of Major Brands Pellet Stove Parts: 80472A, 80453, AP130, APC1406, APCI1406, 5600, 5700, 5500M, 5500XLT, 5502M, 5510, 5700, KP130, 5520, 6033 , 035, 6037 , 6039 , 6041
ProductSiteLaunchDate : 2022-12-02T01:08:48.208Z
RoomType1 : Home Office
RoomType2 : Living Room
RoomType3 : Bedroom
SupplierDeclaredDgHzRegulation : unknown
Voltage : 115 volts
Wattage : 360 watts
