Specification
Brand : LeTkingok
BulletPoint1 : Power supply voltage: DC5V, DC12V, DC24V optional
BulletPoint2 : Power Consumption: Standby 12V 30ma
BulletPoint3 : Relay contact parameters: maximum AC250V/10A DC30V/10A
BulletPoint4 : Measurement signal: audio raw signal (computer, cell phone headphone hole and other output signals)
BulletPoint5 : Digital display switch function: support! Long press K2 key for 2 seconds to open and close the digital tube display
ConnectorType : Other
CurrentRating : 10 amps
IncludedComponents : 1 x Detect Sound Sensor
InputVoltage : 110 volts

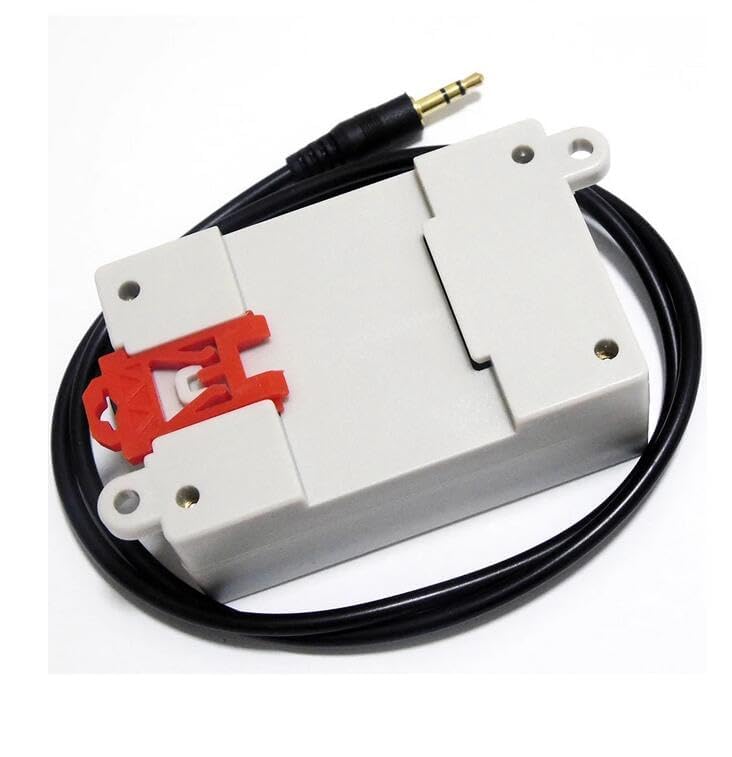

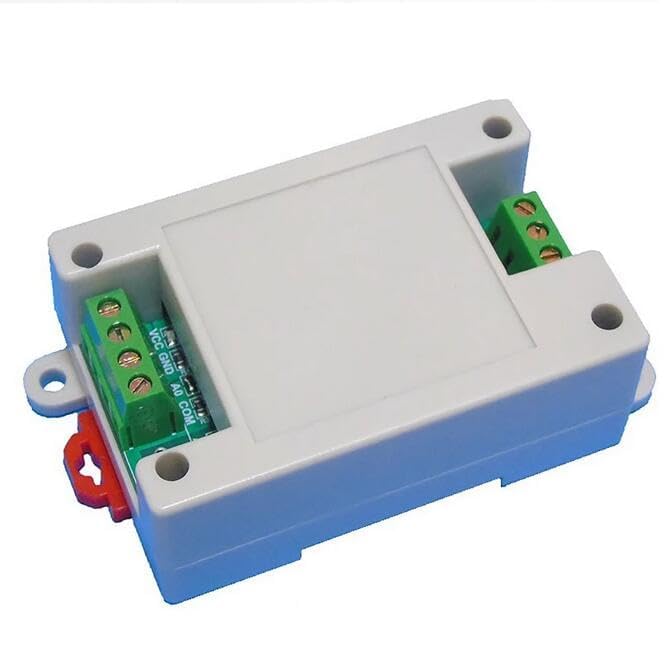

ItemName : Detect Sound Sensor, Audio/Headphone Input Control Relay Switch Module 5/12/24V with Shell (DC 12V)
ItemTypeKeyword : sound-and-noise-meters
Manufacturer : LeTkingok
MeasurementSystem : Inch
ModelNumber : DC 12V
MountingType : other
NumberOfItems : 1
PartNumber : T-140-1
ProductDescription : Detect Sound Sensor, Audio/Headphone Input Control Relay Switch Module 5/12/24V with Shell

Specification:
Product Size: 82*54*32MM
Power supply voltage: DC5V, DC12V, DC24V optional
Power Consumption: Standby 12V 30ma
Relay contact parameters: maximum AC250V/10A DC30V/10A
Measurement signal: audio raw signal (computer, cell phone headphone hole and other output signals)
Sensitivity adjustable range: 1-99 adjustable
Time adjustable range: 0.1-99.9 seconds adjustable
Power indicator: Yes!
Relay suction indicator: Yes!
Power failure memory function: support!
Digital display switch function: support! Long press K2 key for 2 seconds to open and close the digital tube display

Function:
Insert the audio header into the headphone port of the computer or cell phone light, detect the audio signal, start the relay;
The audio disappears more than the set delay time, the relay is disconnected; delay range: 0.1 seconds to 99.9 seconds adjustable

Adjustment instructions:
Press the first K1, the digital tube blinks -15, the sensitivity parameter is adjusted to the 10th digit, press K2, K3 to adjust.
Press the second K1, the digital tube blinks -15, the sensitivity parameter is adjusted to the first digit, press K2, K3 to adjust.
Press the third K1, the digital tube blinks 12.5, ten blinks to adjust the delay time ten bits, press K2, K3 for adjustment.
Press the fourth K1, the digital tube blinks 12.5, the digit blinks to adjust the delay time to the first digit, press K2 and K3 to adjust.
Press the fifth K1, the digital tube flashes 12.5, the decimal point after a blinking adjustment delay time after a decimal point, according to K2, K3 for adjustment
Press the sixth K1, the adjustment is completed, the digital tube real-time display of the measured audio data

Package included:
1x Detect Sound Sensor
