Specification
Brand : CNYST
BulletPoint1 : Meets Class 2 sound level meter standards
BulletPoint2 : Modular design, on-demand selection, cost-effective
BulletPoint3 : Adopted digital signal processing technology, good stability
BulletPoint4 : Single range, large measuring range, no need to switch, simple and convenient operation
BulletPoint5 : Measurement range: 30 dB(A) ~ 130 dB(A), frequency range: 20 Hz ~ 12.5 kHz, the main measurement index: Lp, Leqt, Lpeak, Leq, T, Lmax, Lmin, SEL, Lex8h, LAVG, TWA, DOSE, Ln (n = 5, 10, 50, 90, 95), SD, E
Color : Black
IncludedComponents : According to detailed description

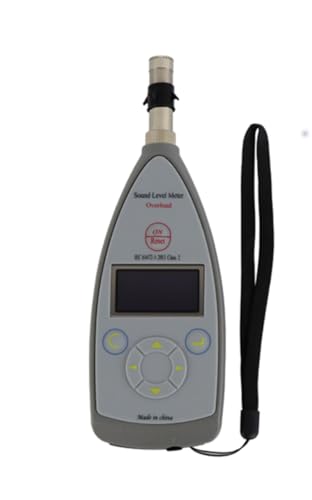

ItemName : CNYST Class 2 Sound Level Meter Integrating Noise Level Meter with Frequency Range 20Hz~12.5kHz Meas.Range 30 dB(A)~130dB(A) Outputs AC,DC,RS232 Integrating and Statistical Analysis Function
ItemPackageDimensions_Height : 10 centimeters
ItemPackageDimensions_Length : 30 centimeters
ItemPackageDimensions_Width : 20 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : sound-and-noise-meters
Manufacturer : CNYST
Material : VTSYIQI202404101547214VTSYIQI
MeasurementAccuracy : According to detailed description
ModelNumber : 2024041001
NumberOfItems : 1
PartNumber : 2024041001
ProductDescription : Introduction：
Sound level meter is digital and multifunction sound level meter with modular design. Its performance complies with standard IEC 61672-1:2002 Class 2.
It can be widely used in industrial noise measurement of various machines, vehicles, ships, electrical appliances, etc. It can also be used in the measurement of environmental noise, labor protection and industrial hygiene.

Key Features
■ Compact pocket sound level meter
■ 128 × 64 OLED
■ Auto range
■ Complies with IEC61672-2002 Class 2

Technical Specifications
Microphone：AWA14421
Frequency Weighting：A,C,Z
Time Weighting ：F,S,I
Frequency Range： 20Hz ~ 12.5kHz
Meas. Range： 30 dB(A) ~ 130dB(A)
Self-generated Noise： <25dBA
Display ：128×64 OLED
Outputs ：AC,DC,RS232
A/D Bits ：32kHz
Integrating Function： YES
Measure Parameters ：
LFp,LSp,Lip,Leqt,Lpeak,Leq,T,LFmax,LFmin,LSmax,LSmin,LImax,LImin,SEL,Lex8h,LAVG,TWA, DOSE,L5,L10,L50,L90,L95,SD,Ts,Tm,Volt,Date,Time,E.
Statistical Analysis Function： YES
Integral Time： 1s~24h
Data Storage ：YES,8000 Groups
Recoding & Data logging Function ：Optional(software authorized）
Overrun instructions ：YES, Limits can be setted

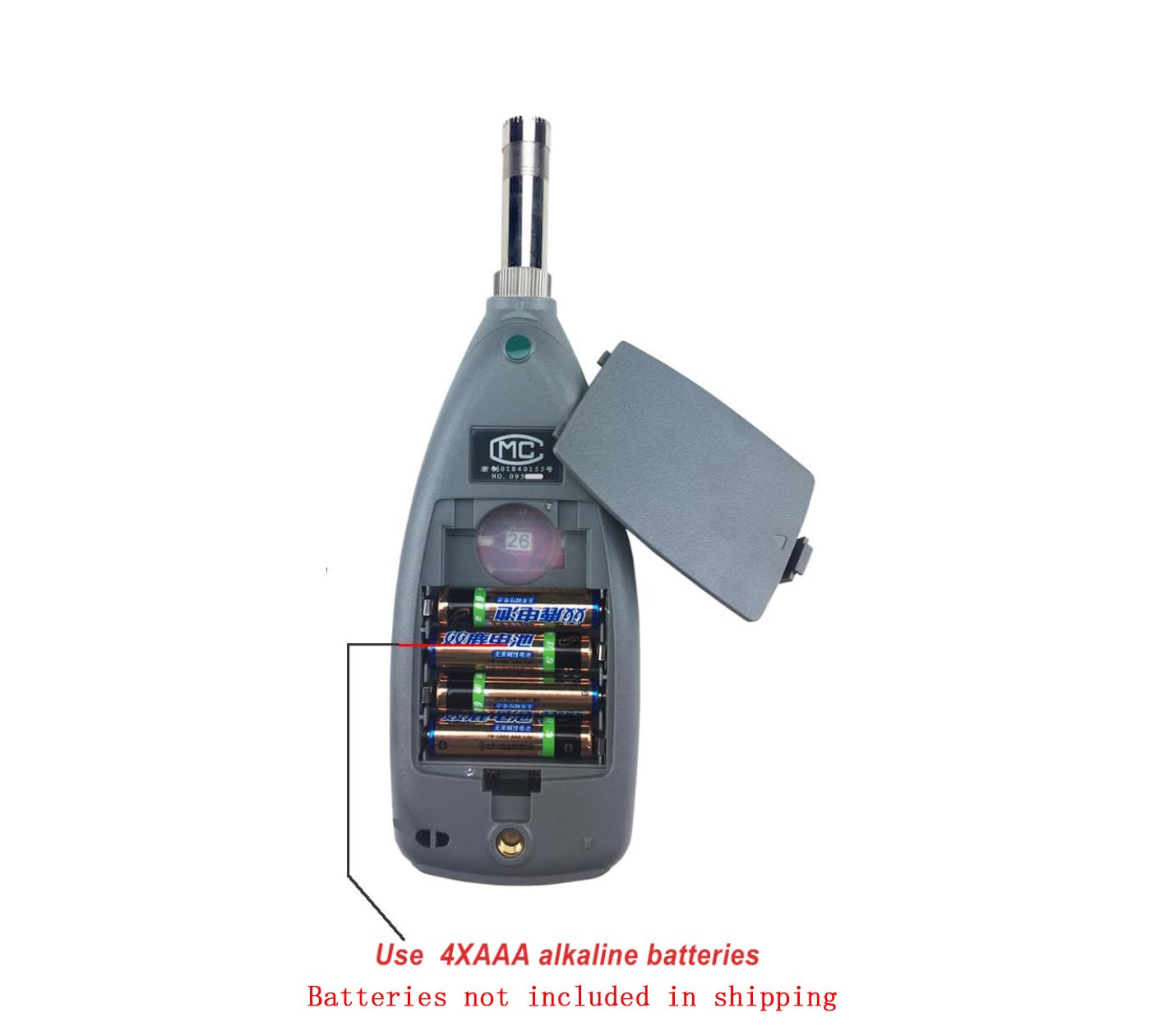

Power Supply:battery 4×LR 6
Dimension:210×48×27 mm
Weight:0.3kg
Working Temperature:-10℃～50℃
