Specification
Brand : Respicefinem
BulletPoint1 : High-Quality Amplification: The MAX4466 Microphone Amplifier Module is designed to provide high-quality sound amplification with a gain range of 25x to 125x, making it ideal for various audio applications
BulletPoint2 : Excellent Noise Rejection: With a power supply rejection ratio (PSRR) of 112dB and a common mode rejection ratio (CMRR) of 126dB, this amplifier ensures clear audio, even in noisy environments
BulletPoint3 : Wide Power Supply Range: The module operates on a wide power supply range of 2.4V to 5.5V, making it compatible with a variety of development boards, including STM, and other microcontroller platforms
BulletPoint4 : Compact and Versatile: Measuring approximately 20.8 x 13.8 x 7.5mm (0.8 x 0.5 x 0.3in), this compact module is easy to integrate into your projects. The rail-to-rail output ensures that the audio signal can reach up to 5Vpp
BulletPoint5 : Easy to Use: Simply connect GND to ground and VCC to 2.4-5VDC. The output will have a DC bias of VCC/2, ensuring a steady voltage when there is no sound. For AC coupled audio, a 100uF capacitor can be added between the output pin and the input of your devices
Color : As Shown
IncludedComponents : Voice Sensor Switch

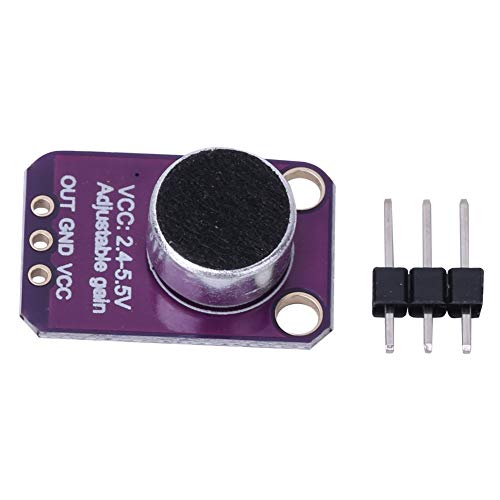

ItemName : Respicefinem MAX4466 Microphone Amplifier Module Sound Sensor with 2.4V to 5.5V Power Supply High Gain (25x to 125x) 112dB PSRR 126dB CMRR
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 8 centimeters
ItemPackageDimensions_Width : 5 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : sound-modules
Manufacturer : Respicefinem
Material : electric components
ModelName : Respicefinemznf18xsiq2
ModelNumber : Respicefinemznf18xsiq2
NumberOfItems : 1
NumberOfLithiumMetalCells : 1
PartNumber : Respicefinemznf18xsiq2
ProductDescription : Spec:
Item Type: Microphone Amplifier Module
Power Supply Voltage: + 2.4V to + 5.5V (can be directly connected for STM /for and other development board)
Power Supply Rejection Ratio: 112dB
Common Mode Rejection Ratio: 126dB
AVOL: 125dB (RL = 100kΩ) Rail-To-Rail Output
Static Supply Current: Gain Bandwidth: 600kHz
Size: Approx. 20.8 x 13.8 x 7.5mm / 0.8 x 0.5 x 0.3in

Package List：
1 x Module
1 x Pin Header






ProductSiteLaunchDate : 2024-10-24T05:48:43.512Z
Size : 3.40X1.60X1.00CM
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 52161547
