Specification
AudioInput : XLR
Brand : Generic
BulletPoint : DY-HV8F 12V/24V Power Supply 10W/20W Voice Playback Module Supporting Micro SD Card MP3 Music Player
BulletPoint1 : Electronically-balanced 4-channel line output
BulletPoint2 : Designed for use with the D-901 Digital Mixer
BulletPoint3 : 24 bits Digital-Analog converter processor
BulletPoint4 : XLR-3-32 type connector
BulletPoint5 : 48 khz sampling frequency
Color : default
ExternallyAssignedProductIdentifier : 5205166953329
ExternallyAssignedProductIdentifier1 : 0761373842580
ExternallyAssignedProductIdentifier2 : 761373842580
Frequency : 48 KHz

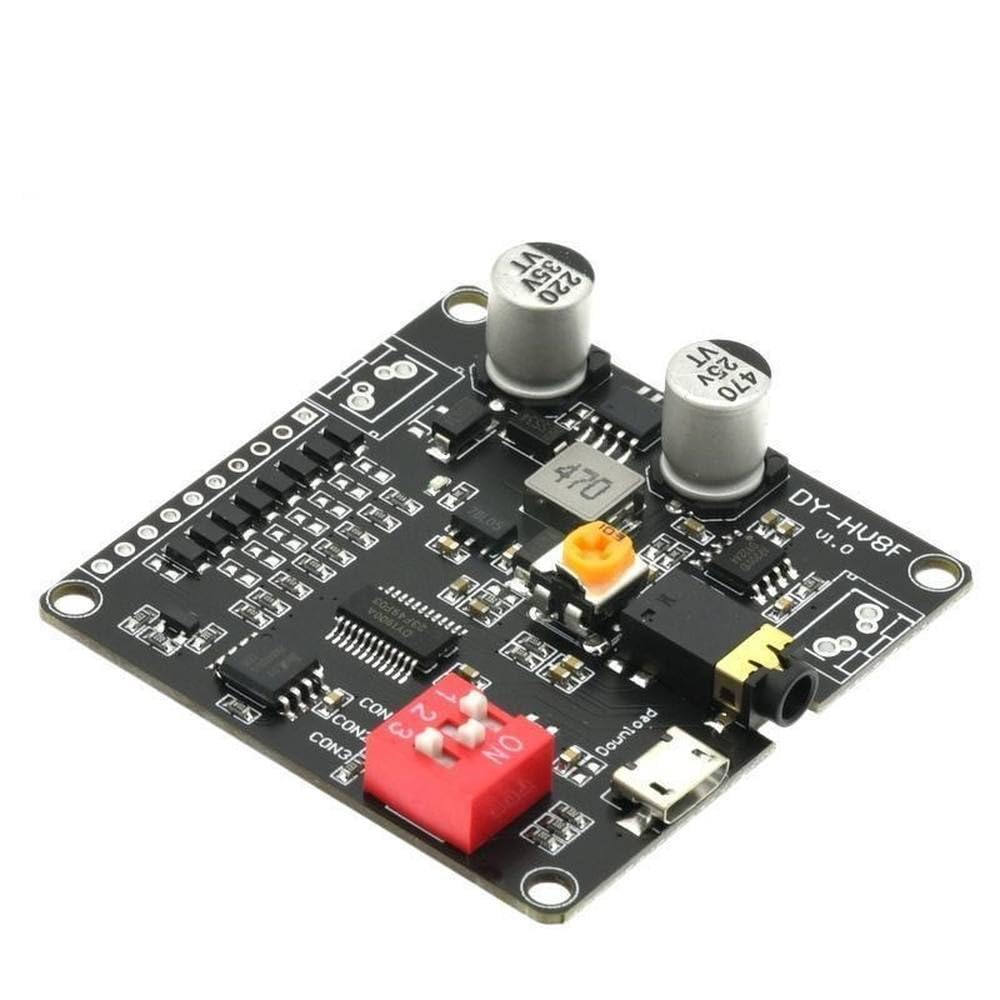

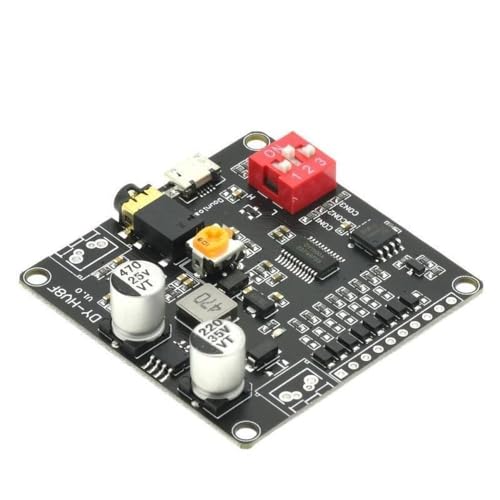

ItemName : DY-HV8F 12V/24V Power Supply 10W/20W Voice Playback Module Supporting Micro SD Card MP3 Music Player
ItemPackageQuantity : 1
ItemTypeKeyword : sound-modules
Manufacturer : Generic
Material : Copper
ModelNumber : 5205166953329
NoiseLevel : 100 decibels
NumberOfChannels : 4
OutputConnectorType : XLR
PartNumber : Lile_HFN_2274
PowerSourceType : Corded Electric
ProductDescription : Product Overview:

DY-HV8F is an intelligent voice playback module, integrated IO segment trigger, UART serial port control, ONE_line single bus serial port control, standard MP3 and other 7 working modes, simple dip switch Settings; Onboard 20W Class D power amplifier; Support MP3,WAV decoding format, on-board 64Mbit (8M bytes) Flash storage, can be connected to the computer through the USB data cable Flash storage audio files.


Product features:

1, support MP3, WAV decoding format.

2, support the sampling rate (KHz) : 8/11.025/12/16/22 05/24/32/44.1/48.

3. 24-bit DAC output, dynamic range supports 90dB, signal-to-noise ratio supports 85dB.

4, DC 6~35V ultra-wide working voltage.

5, Integrated 64Mbit (8M bytes) FLASH memory, no memory card.

6, integrated high-power amplifier output, driving 4Ω horn maximum output 20W, driving 8Ω horn maximum output 10W.

7, UART serial port control voice broadcast function, can control play, pause, music selection, volume increase or decrease and other functions, the maximum selection of 65535 tracks, baud rate 9600 bit/s.

8. Supports one-to-one IO trigger playback function. 8 IO ports independently trigger 8 tracks or 8 IO ports combined trigger 255 tracks.

9, Support One_line single bus serial port control, can control play, pause, song selection, volume increase or decrease and other functions.

10, Support 3 configuration IO for up to 7 working mode selection, dip switch Settings, simple operation.

11, 8 way IO design ESD protection


Module interface and function definition:|Pin definition:

Negative power supply: negative power supply (GND)

Power supply positive: Connect to the positive terminal of the 6-35 V DC power supply

TXD/IO0: Input pin in IO trigger mode. TX pin in control mode. Connect RX of control terminal (MCU)

RXD/IO1: Input pin IO1 in
ProductSiteLaunchDate : 2023-11-30T05:20:30.224Z
UnspscCode : 52161500
