Specification
Brand : DMWD
BulletPoint1 : Model: SSR-60DA, single phase Solid State Relay 60A DC to AC control, CE Compliant to EN60950-1
BulletPoint2 : Input voltage 3-32V DC, Load voltage 24-380V AC, Max load current 60 Amp
BulletPoint3 : Rugged epoxy encapsulation construction, high isolation over than 50MΩ(500VDC), high dielectric over than 2.5KV, output snubber circuit protection
BulletPoint4 : No EMI/EFI & Low surge by Zero Cross Trigger method, specially suited to control sensitive, capacitive and Non-saturated inductive loads
BulletPoint5 : SSR switches use semiconductor component acts as a switch for the relay, no moving parts inside, no mechanical wear, no action noise, no mechanical failure, and high reliability
BulletPoint6 : Module size: 50x45x10mm(LWH), hole diameter 3mm, hole center distance 35x25mm(LW).
BulletPoint7 : Please download the user manual from the "User Manual" link on this page or contact us.
BulletPoint8 : User Manual https://1drv.ms/b/s!AlzQUCOyZQhKgXU0PzDptISGtyfu?e=Ak6lUE
ConnectorType : Screw
CurrentRating : 25 amps
ExternallyAssignedProductIdentifier1 : 738584819502
ExternallyAssignedProductIdentifier2 : 0738584819502

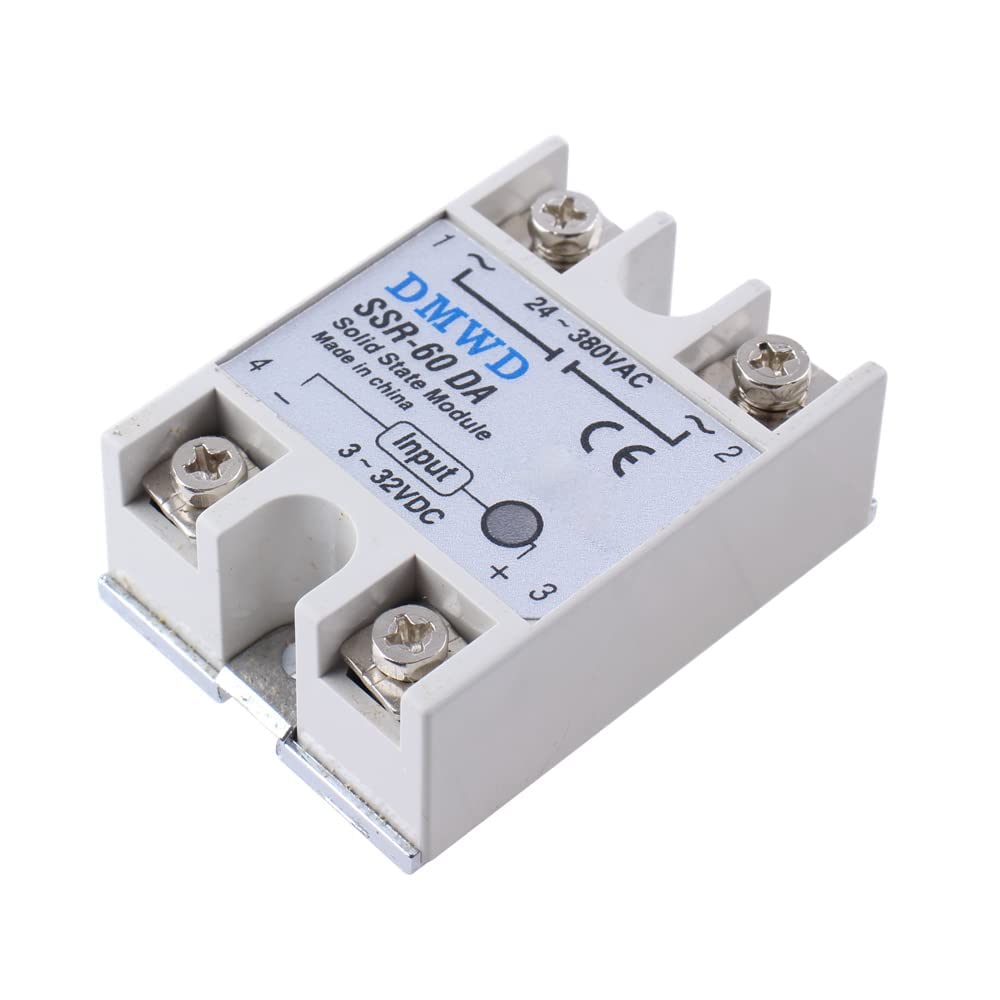

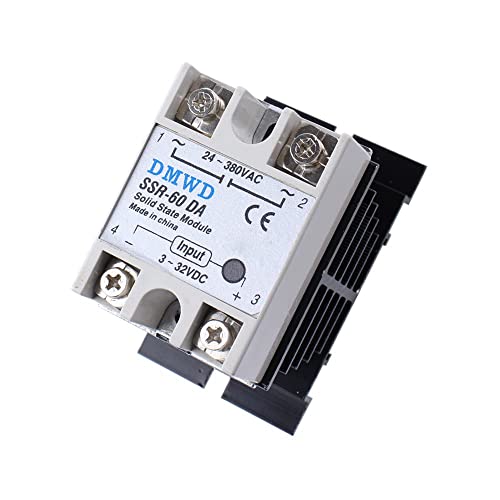

ItemName : SSR-60DA Solid State Relay DC to AC (Input 3-32V DC Output 24-380V AC) with Heat Sink, 60A
ItemPackageDimensions_Height : 9.4996 centimeters
ItemPackageDimensions_Length : 5.4102 centimeters
ItemPackageDimensions_Width : 8.6106 centimeters
ItemPackageQuantity : 1
ItemShape : Rectangle
ItemTypeKeyword : solid-state-relays
Manufacturer : DMWD
Material : Metal
MaximumSwitchingCurrent : 25 amps
MaximumSwitchingVoltage : 250 volts
MeasurementSystem : Metric
MeasurementSystem1 : Imperial
MeasurementSystem2 : Metric
MinimumSwitchingVoltage : 80 volts_of_alternating_current
ModelNumber : SSR-60DA+SanRePian
MountingType : Panel Mount
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfTerminals : 3
OperationMode : Automatic
PartNumber : SSR-60DA+SanRePian
ProductDescription :

DMWD Low cost single phase solid state relay SSR-60DA

Input voltage 3-32V DC

Load voltage 24-380V AC

Load current 60Amp

60A 3-32V DC to AC solid state relay (SSR) features high structural strength, good impact resistance, and strong shock resistance. The SSR offers a reliable switching the commercial and industrial loads, such as computer peripheral interface device, printing machine, molding machine, food machine, packaging machine, and so on.

• Built in RC absorption
• Photoelectric isolation
• SCR output
• LED indicator for operation status
• Panel mount
• Zero-crossing switch type
• UL Approved, CE Compliant to EN60950-1

Note:

* When the load current is higher than 10A, a heat sink must be installed to the solid state relay, or the SSR relay should be mounted on a metal base plate with heat dissipation effect, and the thermal grease is applied between them.

* When the load current is 40A or more, a fan cooling radiator or water cooling radiator must be equipped.

* Heat sink is included.

Package Content:

1 x Solid State Relay

1 x All Aluminium Heat Sink

Size/Weight:

SSR(58x45x28mm/85g)

Heat Sink(78*50*50mm/80g)

Warranty:

Free new replacement in 5 years, Have faith in quality

ProductSiteLaunchDate : 2022-01-20T08:40:14.926Z
ShipsGlobally : 1
Size : 60A
SpecificationMet : General Safety & Performance Standards
Style : DC to AC
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 39120000
UpperTemperatureRating : 75 degrees_celsius
Voltage : 1 volts
Wattage : 25 milliwatts
