Specification
Brand : JIUWU
BulletPoint : Relays
BulletPoint1 : High-Quality Relay Board: Enjoy strong driving ability and stable performance with this solid state relay board. It is designed to support high or low level triggers.
BulletPoint2 : Easy Terminal Connection: Can set high or low level trigger through jumper wire. The direct connection through terminal out interfaces allows for quick and hassle-free setup.
BulletPoint3 : Fault-Tolerant Design: With a fault-tolerant design, this relay board ensures reliable performance even in challenging conditions.
BulletPoint4 : Versatile Applications: Work well suitable for Arduino, for ARM, for PIC, for AVR, for MCU, for Raspberry, for CNC machine, for PS4, etc. Its waterproof design makes it suitable for both indoor and outdoor use.
BulletPoint5 : Compact and Efficient: It uses SMT optocoupler to isolation,all interfaces can be directly connected through the terminal out.
Color : One Color
CurrentRating : 10 amps
ExternallyAssignedProductIdentifier : 7614565439811

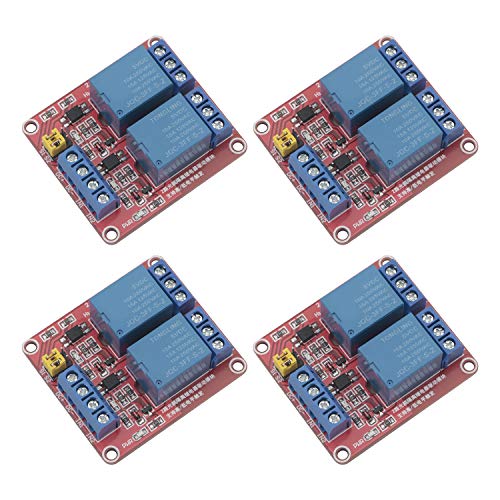

ItemName : Solid State Relays, 4PCS 5V 2-Channel Optical Coupling Isolation Relay Module Development Board with High and Low Level Trigger Support
ItemPackageDimensions_Height : 13.4 centimeters
ItemPackageDimensions_Length : 3.7 centimeters
ItemPackageDimensions_Width : 9.8 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : solid-state-relays
Manufacturer : JIUWU
Material : tile
MaximumSwitchingCurrent : 10 amps
MeasurementSystem : Metric
ModelName : BMEDPUOQ
ModelNumber : BMEDPUOQ
NumberOfItems : 1
OperationMode : Automatic
PartNumber : 040
ProductDescription : Specifications:

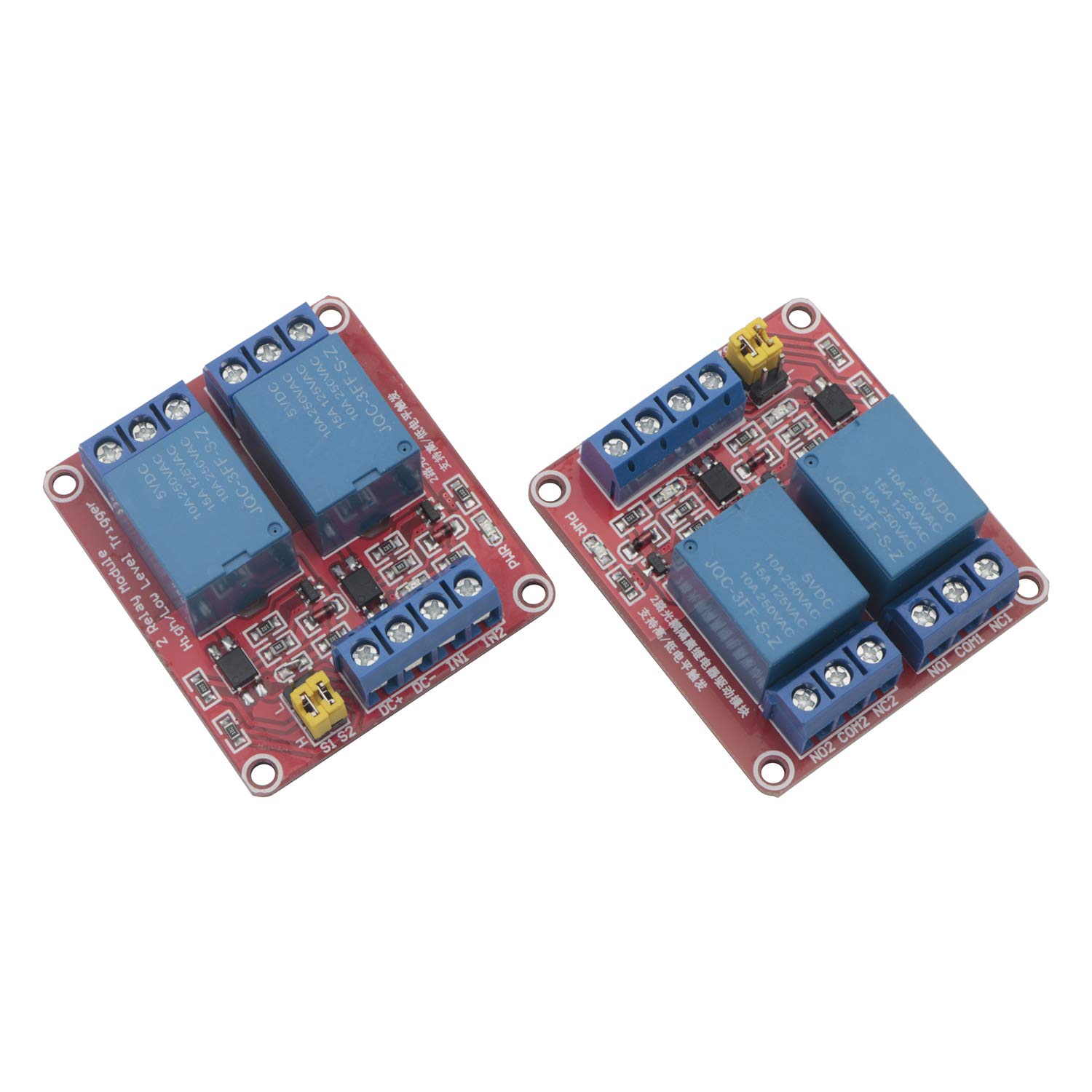

Item Name:5V 2-Channel Relay Module
Module Size:50mm x 26 x 18.5 mm
Quiescent Current:5mA
Maximum Current:190mA
Rated Load: AC125~250V/10A, DC28~30V/10A
Trigger Voltage: 0-1.5V (Low); 2.5-5V (High)
Trigger Current:2-4mA
Power Indicator: Green
Status Indicator: Red
Provided with 4 fixed bolt holes,hole diameter:3.1mm,hole pitch:44.5 x 20.5 mm

Input Connection:
DC +: Connect the positive pole (VCC)
DC-: Connect the negative pole (GND)
IN: Control the relay-operating by low or high level

Output Connection:
NO:Normally open interface,is suspended before relay-operating and short-circuit with COM after
COM:Common interface for relay
NC:Normally closed interface,is short-circuit with COM before relay-operating and suspended after
High and low levels trigger selection:
S1-Channel 1;S2-Channel 2
ProductSiteLaunchDate : 2022-07-13T02:29:35.832Z
Size : 24V
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 39122300
