Specification
AgeRangeDescription : adult
Brand : Srliya
BulletPoint : ..
BulletPoint1 : Solid state relay module come with long life and high reliability, you can use with confidence
BulletPoint2 : Possess high sensitivity, low control power, and good electromagnetic compatibility
BulletPoint3 : SSR module support fast switching, switching speed up to a few milliseconds, very efficient
BulletPoint4 : Come with small electromagnetic interference, there is no ignition arc and bounce
BulletPoint5 : 4 channel solid state relay module with high level trigger, module life can reach 10 million times
Color : #711
CurrentRating : 25 amps
CurrentRating1 : 10 amps
CurrentRating2 : 40 amps
CurrentRating3 : 25 amps
ExternallyAssignedProductIdentifier : 3002980936895
ExternallyAssignedProductIdentifier1 : 0765491944928
ExternallyAssignedProductIdentifier2 : 765491944928
IncludedComponents : No

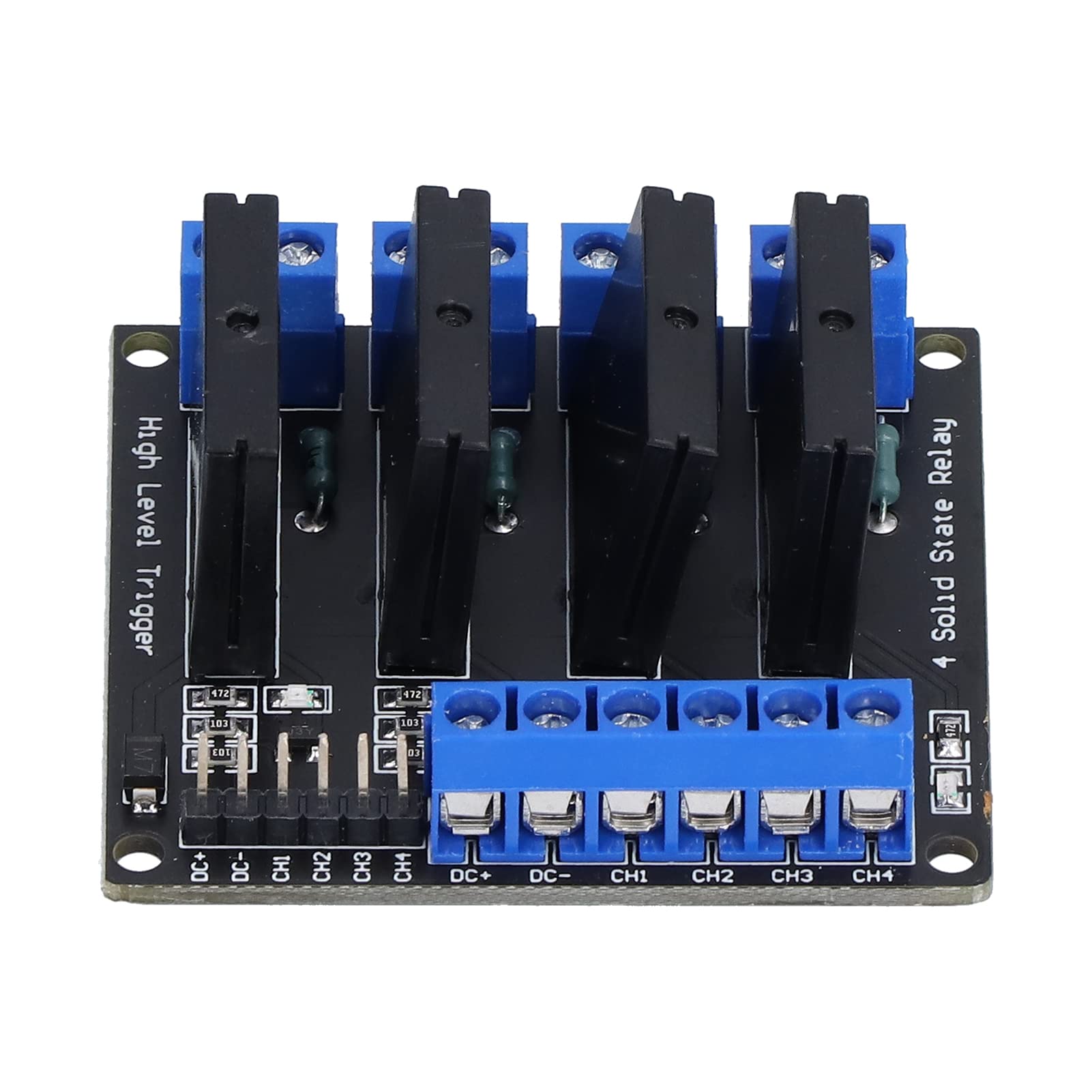

ItemName : Solid State Relay Module 4 Channel High Level Trigger SSR DC Control AC with 3 24V HY M283
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 10 centimeters
ItemPackageDimensions_Width : 6 centimeters
ItemPackageQuantity : 1
ItemShape : Rectangular
ItemTypeKeyword : solid-state-relays
Manufacturer : Srliya
Material : Copper
MaximumSwitchingCurrent : 25 amps
MaximumSwitchingVoltage : 60 volts
ModelName : HBWLKJ01
ModelNumber : Srliyaucgnf3twp8
MountingType : din_rail
NumberOfBoxes : 1
NumberOfItems : 1
OperationMode : Automatic
PartNumber : Srliyaucgnf3twp8
ProductDescription : Specification:
Item Type: Solid State Relay Module
Trigger Mode: High level trigger
Load Current: 2A
Maximum Working Current: 79.6mA
Module Life: 10 Million times

How to Use:
1. DC+ and DC‑ are used to connect to the power supply of the module, the voltage is 3‑24V
2. The CH terminal is the trigger terminal of the module. When there is a trigger signal, the output switch (A, B) of the solid state relay will be closed and the load will be electrically conductive.
3. The Meaning of High‑level Trigger and Low‑level Trigger: High‑Level Trigger: Called PNP trigger in industrial control, positive trigger, that is, when the voltage between the trigger terminal and the negative pole of the power supply reaches the voltage of the trigger condition, the relay is closed
CH1: When the CH terminal has 3.3‑5V, the solid state relay can be triggered to turn on
DC‑: When the CH terminal has 0‑2.5V, the solid state relay is disconnected
DC+: For the specific voltage range, please refer to the trigger voltage in the electrical parameters

Package List:
1 x Solid State Relay Module
ProductSiteLaunchDate : 2024-12-27T03:45:39.439Z
Size : 200A 220V
SpecificationMet1 : Din
SpecificationMet2 : Ma
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 39121600
