Specification
Brand : NOYITO
BulletPoint1 : 4-Channel High Low Level Trigger With Optocoupler Isolation Relay Module, relay NO interface maximum load: AC 250V/10A, DC 30V/10A
BulletPoint2 : With optocoupler isolation, strong drive capability, stable performance; trigger current 5mA;
BulletPoint3 : Module working voltage: DC 5V, 12V, 24V three voltage versions.
BulletPoint4 : Each channel of the module can be triggered by a jumper to set a high level or a low level;
BulletPoint5 : NOYITO 4-Channel Relay Module User manual https://1drv.ms/b/s!AlzQUCOyZQhKgTVvkxLedOQPx_4d?e=dgoiHI
Color : Red
ConnectorType : Screw
CurrentRating : 10 amps
ExternallyAssignedProductIdentifier1 : 680613661456
ExternallyAssignedProductIdentifier2 : 0680613661456
ItemName : NOYITO 4-Channel Relay Module 5V 12V 24V High Low Level Trigger with Optocoupler Isolation Relay Load AC 250V 10A DC 30V 10A (DC 5V, Red)
ItemPackageDimensions_Height : 12.954 centimeters
ItemPackageDimensions_Length : 2.032 centimeters
ItemPackageDimensions_Width : 6.604 centimeters
ItemTypeKeyword : solid-state-relays
Manufacturer : NOYITO
Material : Metal
MaximumSwitchingCurrent : 10 amps
MaximumSwitchingVoltage : 250 volts_of_alternating_current
MeasurementSystem : Metric
MeasurementSystem1 : Imperial
MeasurementSystem2 : Metric
MountingType : Panel Mount
NumberOfItems : 1
OperationMode : Automatic
PartNumber : MK-SSR-Ym-60A-DD-2pcs

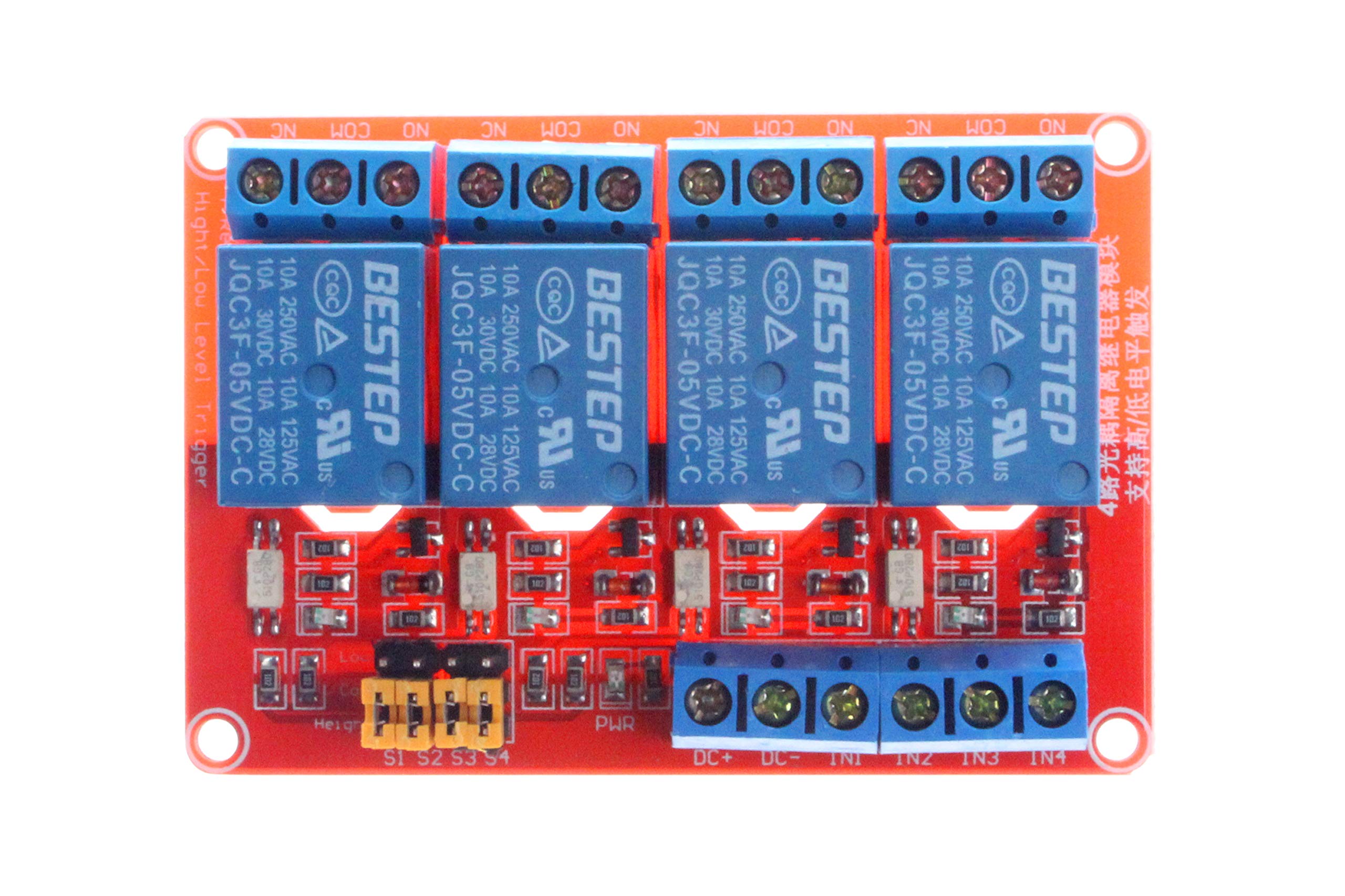

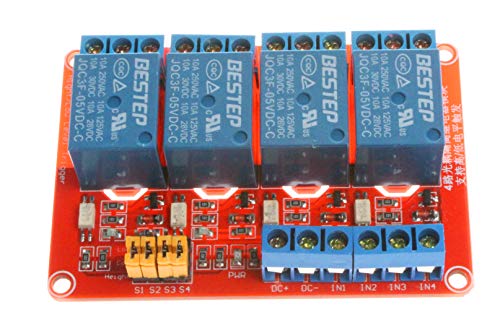

ProductDescription : Module description:
1, The relay normally open interface maximum load: AC 250V/10A, DC 30V/10A;
2, With optocoupler isolation, strong drive capability, stable performance; trigger current 5mA;
3, Module working voltage: DC 5V, 12V, 24V three voltage versions.;
4. Each channel of the module can be triggered by a jumper to set a high level or a low level;
5, Fault-tolerant design, even if the control line is disconnected, the relay will not move;
6. With status indicator: power (green), 4-channel relay status indicator (red)
7. All module size interfaces can be directly connected through the terminal block, which is convenient and practical.
8, module size: 108mm * 50mm * 18.6mm (length * width * height)
9, with 4 fixing bolt holes, hole 3.1mm, spacing 6.8cm*4.4cm

Module interface:
1. DC+: Connect to the positive of the power supply.
2. DC-: Connect the negative of the power supply.
3. IN1-IN4: According to the setting of each channel, the corresponding relay can be controlled by high or low level.

Relay output:
1, NO1--NO4: Relay normally open interface.
2, COM1--COM4 relay common interface
3. NC1--NC4: Relay normally closed interface.

High and low trigger selection:
1.S1-S4 are the high and low level trigger selections of relays 1 to 4 in sequence;
2. When COM and LOW connected, the corresponding relay is triggered by low level, and when COM and HIGH connected, it is triggered by high level.

Package Included:
1pcs NOYITO 4-Channel Relay Module

ProductSiteLaunchDate : 2018-09-30T07:00:00.000Z
Size : DC 5V
SpecificationMet : Ma
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 3.5274
UnspscCode : 39122300
Wattage : 12000 watts
