Brand : MECCANIXITY
BulletPoint1 : Widely used for DSP(digital signal processing), MCU(Microcontroller Unit) control, programmable logic controller, smart home control etc.
BulletPoint2 : Relay module, is in size of: 16 channel, 24V voltage, 10A AC250V/DC30V maximum load current and voltage, 0-4V trigger voltage, 3mA trigger current, 180mm x 90mm/7.09-inch x 3.54-inch(L*W)
BulletPoint3 : Photo coupler isolation strong driving ability, stable performance; It can be connected directly through the terminal block, which is convenient for connection; Fixing screw hole position for easy installation
BulletPoint4 : Module interface:1. VCC: connected to the positive pole of 24V power supply; 2. GND: connected to negative pole of 24V power supply; 3. In1-In16: signal trigger terminal, active at low level.
BulletPoint5 : Please pay attention to selecting the appropriate relay module, especially the voltage and current
ConnectorType : Screw
CurrentRating : 10 amps
ExternallyAssignedProductIdentifier : 5055818141983
ExternallyAssignedProductIdentifier1 : 0704415192342
ExternallyAssignedProductIdentifier2 : 704415192342
IncludedComponents : SSR-120DD
ItemName : MECCANIXITY Relay Module 16 Channel 24V Low Level Trigger Module Blue Relay Module Board for DSP
ItemPackageDimensions_Height : 23.8 centimeters
ItemPackageDimensions_Length : 4.7 centimeters
ItemPackageDimensions_Width : 12.3 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : solid-state-relays
Manufacturer : MECCANIXITY
Material : Copper
MaximumSwitchingCurrent : 10 amps
MaximumSwitchingVoltage : 24 volts
MeasurementSystem : Metric
MeasurementSystem1 : Imperial
MeasurementSystem2 : Metric
MinimumSwitchingVoltage : 3 volts_of_direct_current
ModelNumber : mea220429ee1267
MountingType : Panel Mount
NationalStockNumber : 5945-01-062-5072
NumberOfBoxes : 1
NumberOfItems : 1
OperationMode : Automatic
PartNumber : mea220429ee1267
ProductDescription : What is this?
Widely used for DSP(digital signal processing), MCU(Microcontroller Unit) control, programmable logic controller, smart home control etc.

What will I get?

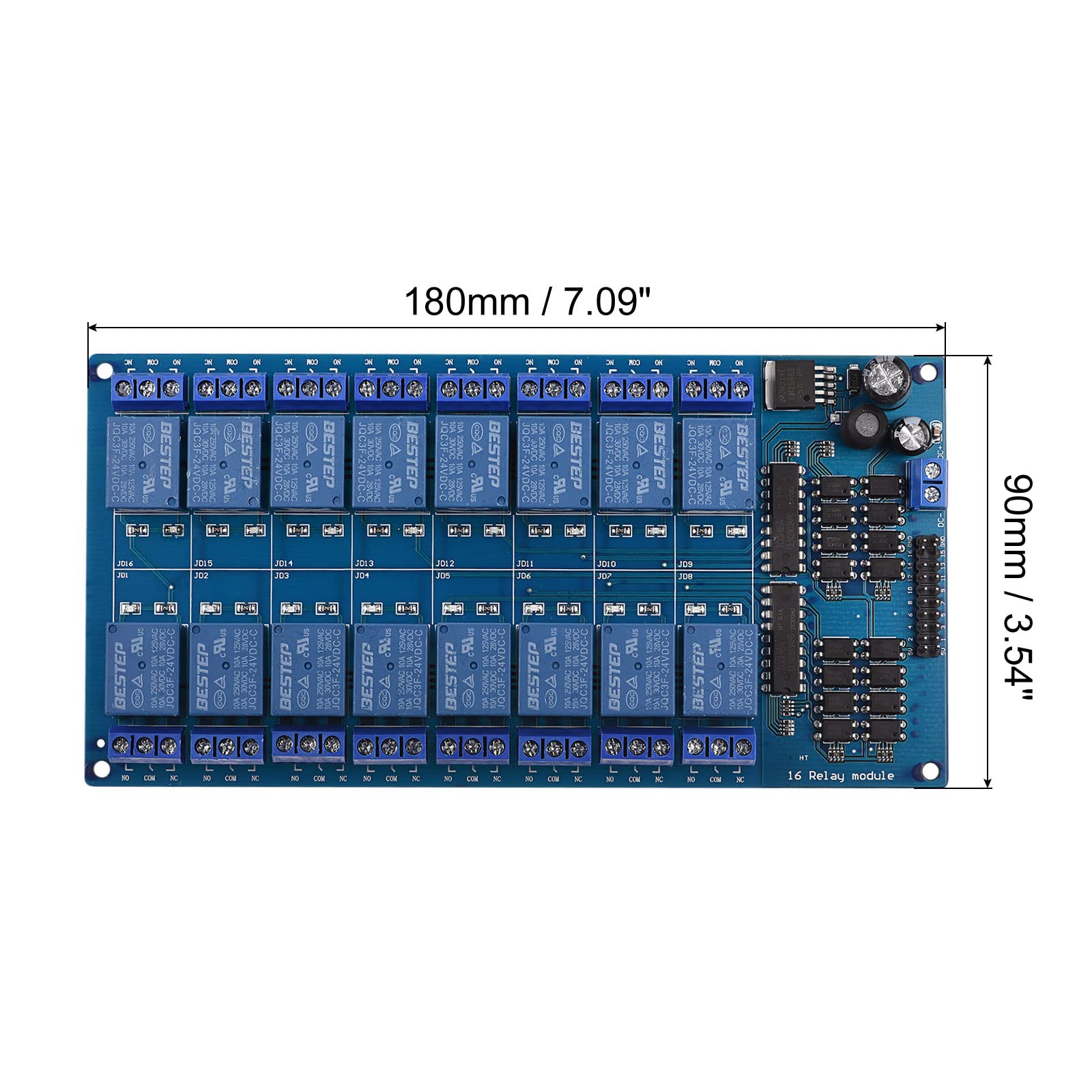

Relay module, is in size of: 16 channel, 24V voltage, 10A AC250V/DC30V maximum load current and voltage, 0-4V trigger voltage, 3mA trigger current, 180mm x 90mm/7.09-inch x 3.54-inch(L*W)
In the package of: 1pcs x Relay module

Is there any advantages of the product?
Photo coupler isolation strong driving ability, stable performance; It can be connected directly through the terminal block, which is convenient for connection; Fixing screw hole position for easy installation

How to use it?
Module interface:
1. VCC: connected to the positive pole of 24V power supply
2. GND: connected to negative pole of 24V power supply
3. In1-In16: signal trigger terminal, active at low level

Relay output terminal:
1. NO1--NO16: normally open interface of relay, the relay is suspended before closing, and is short circuited with COM after closing
2. COM1--COM16: common interface of relay
3. NC1--NC16: normally closed interface of relay. The relay is short circuited with COM before closing and suspended after closing

What should I notice?
Please pay attention to selecting the appropriate relay module, especially the voltage and current



ProductSiteLaunchDate : 2022-07-28T12:03:57.676Z
SpecificationMet : RoHS
Style : 24V
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 39122300
Wattage : 12 watts
