Specification
Brand : KNACRO
BulletPoint : Relays
BulletPoint1 : Using patch optocoupler isolation, drive ability, stable performance; trigger current 5mA;
BulletPoint2 : Normally open interface Maximum load: AC 250V / 10A, DC 30V / 10A;
BulletPoint3 : Module operating voltage 5V, 12V, 24V to choose from;
BulletPoint4 : Module can be set by Jump cap high or low level trigger;
BulletPoint5 : Fault-tolerant design, even if the control line off, the relay will not work;
Color : One Color
CurrentRating : 10 amps
ExternallyAssignedProductIdentifier : 7614565527686
ExternallyAssignedProductIdentifier1 : 713653013654
ExternallyAssignedProductIdentifier2 : 0713653013654

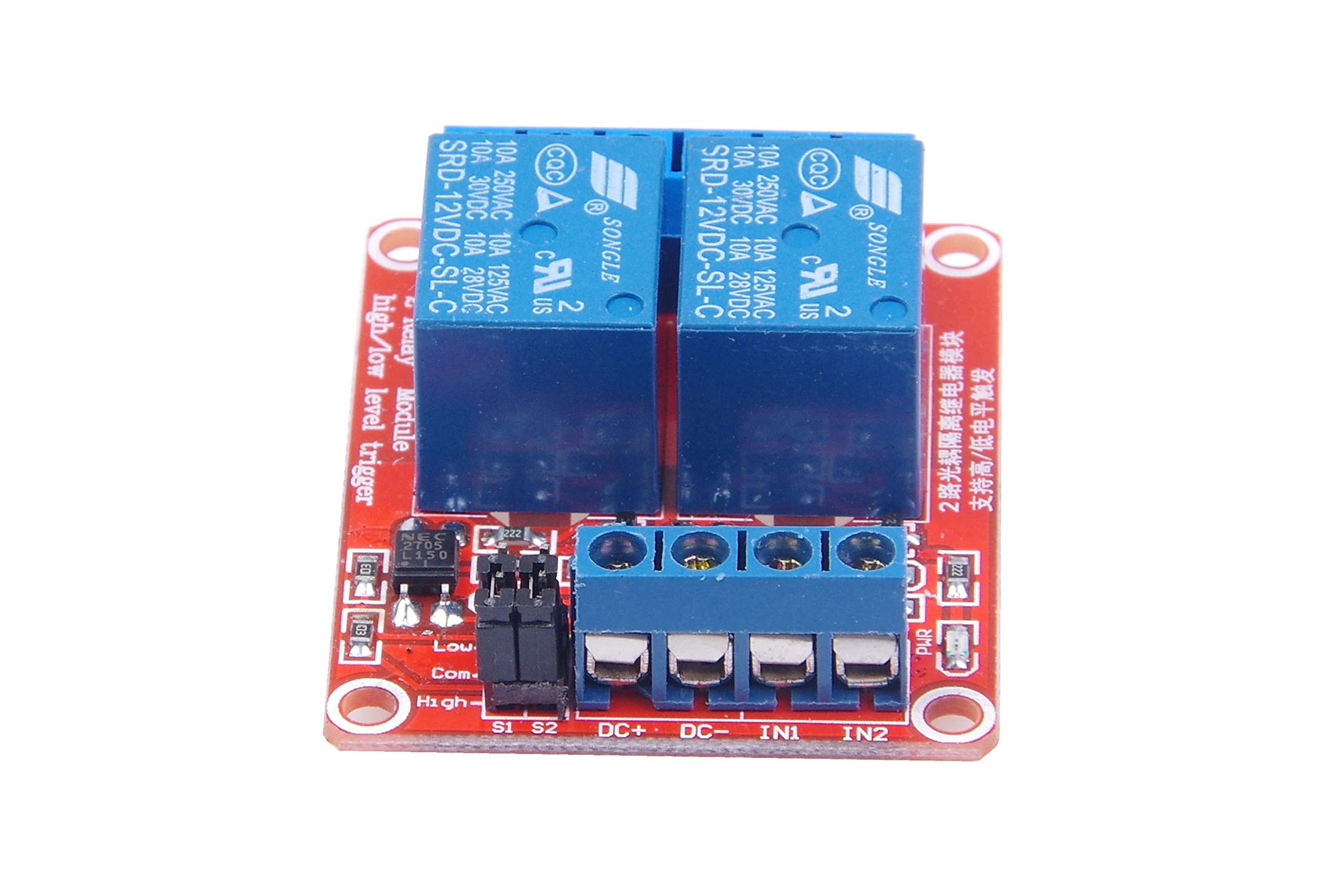

ItemName : KNACRO 12V 2-Channel Relay Module with Optocoupler Relay Relay Board High Low Trigger with LED Load 10A DC 30V AC 250V for PLC Automation Control, Industrial System Control
ItemPackageDimensions_Height : 13 centimeters
ItemPackageDimensions_Length : 1.8 centimeters
ItemPackageDimensions_Width : 12.7 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : solid-state-relays
Manufacturer : KNACRO
Material : lead
MaximumSwitchingCurrent : 10 amps
MaximumSwitchingVoltage : 80 volts
MeasurementSystem : Metric
ModelName : BMEDPUOQ
ModelNumber : SSR-60DD
MountingType : din_rail
NumberOfItems : 1
OperationMode : Off
PartNumber : SSR-60DD
ProductDescription : Using patch optocoupler isolation, drive ability, stable performance; trigger current 5mA;
Normally open interface Maximum load: AC 250V / 10A, DC 30V / 10A;
Module operating voltage 5V, 12V, 24V to choose from;
Module can be set by Jump cap high or low level trigger;
Fault-tolerant design, even if the control line off, the relay will not move;
Power indicator (green), relay status indicator (red);
All interfaces can be directly connected through the terminal lead;
Module size: 50 * 41 * 18.5mm (L * W * H);
With 4 fixed bolt holes, spacing 44.5mm * 35.5mm;

Module Interface:
1, DC +: then the power supply positive (voltage according to the relay requirements, with 5V.12V and 24V choice);
2, DC-: connected to the power supply negative;
3, IN1: 1 signal trigger side, you can set the high or low level control relay pull;
4, IN2: 2-way signal trigger side, you can set the high or low level control relay pull;
Relay output:
1, NO1: 1 relay normally open interface;
2, COM1: 1 relay common interface;
3, NC1: 1 relay normally closed interface;
4, NO2: 2 relay normally open interface;
5, COM2: 2 relay common interface;
6, NC2: 2 relay normally closed interface;

Technical Parameters:
Relay version: 24V;
Quiescent current: 5mA;
Maximum current: 50mA;
Trigger current: 2-4mA;
Trigger voltage (low level): 0-8V;
Trigger voltage (high level): 8.5-24V;
High and low trigger select side:
1.S1 for 1-Channel relay high and low trigger selection;
2.S2 for 2-Channel relay high and low trigger selection;
3.COM and LOW connection, the corresponding relay is low-level trigger, COM and HIGH-side connection is high when the trigger.

Package Included:
1*DC24V 2-Channel Relay Moudle

ProductSiteLaunchDate : 2017-03-30T07:00:00.000Z
Size : SSR-10 DA
SpecificationMet : Ma
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 39122300
