Specification
Brand : ElectronicMaker
BulletPoint : High Level Trigger 1 Channel Solid State Relay Module SSR DC-DC 3-32V to 5-220V 5A For Arduino
BulletPoint1 : Relays
BulletPoint2 : Intermediate relay LY2N-J DC12 | LY2 5433D
BulletPoint3 : [ Design] Flame‑retardant engineering plastic shell with resin potting, threaded terminal wiring, and transparent protective cover. Provides additional and ensures high impact and vibration resistance.
BulletPoint4 : [Multiple Environment Usage] Suitable for harsh environments with , wetness, dust‑proof, and explosion‑proof requirements. Can replace AC contactors for frequent switching .
BulletPoint5 : [Versatile Applications] Suitable for petrochemical equipment, food machinery, packaging machinery, textile machinery, CNC machine tools, plastic machinery, fitness equipment, entertainment facilities, and other automation control fields.
Color : One Color
ConnectorType : Screw
CurrentRating : 40 amps
CurrentRating1 : 10 amps
CurrentRating2 : 25 amps
ExternallyAssignedProductIdentifier : 5202036900162
ExternallyAssignedProductIdentifier1 : 0759245400167
ExternallyAssignedProductIdentifier2 : 759245400167
IncludedComponents : Solid State Relay

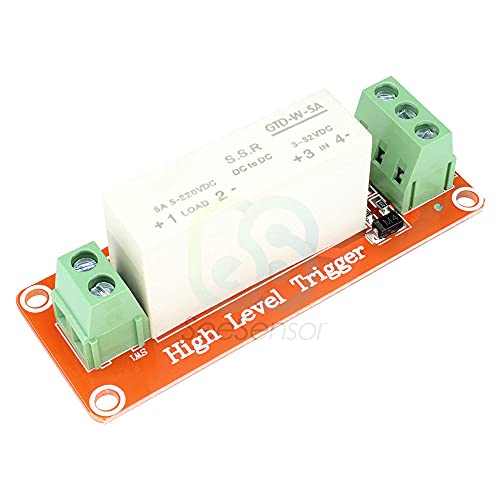

ItemName : High Level Trigger 1 Channel Solid State Relay Module SSR DC-DC 3-32V to 5-220V 5A for Arduino
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : solid-state-relays
Manufacturer : ElectronicMaker
Material : Plastic
MaximumSwitchingCurrent : 40 amps
MaximumSwitchingVoltage : 32 volts
MeasurementSystem : Metric
MeasurementSystem1 : Imperial
MeasurementSystem2 : Metric
ModelName : PUVDEVXK
ModelNumber : A2440
MountingType : Panel Mount
NumberOfItems : 1
OperationMode : Automatic
PartNumber : HYSYMo-10685
ProductDescription :
Descriptions:



100% brand new and high quality





Using FR-4 double-sided circuit boards;





Using high-quality solid-state relays 5A;





The input and output are using KF128-3.81 Terminal Block, wiring more convenient;





Use SS8050 1.5A high current transistor for switching transistor, quality is more stable;





The board has four screw holes.





Size:(L*W*H)6.89*7.10*2.28cm/2.71"*2.80"0.90"











Performance parameters:





Power supply: 3-32VDC (wide voltage power supply)





Trigger: high level trigger, 3-32VDC relay switches on (ON), 0-0.5V relay is switched off (OFF) 0.5-2.5 volts unknown state





Load current: 5-220VDC 5A (DC only)








Wiring Port
Descriptions:





DC +: positive power supply (3-32VDC)





DC-: negative





CH1: trigger terminal (3-32VDC high level trigger active)









Notes:





Size for manual measurement, there may be a 0 to 2 cm error, belongs to the normal phenomenon.





And due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!












Package Included:





1 x SSR Solid State Relay







ProductSiteLaunchDate : 2021-04-24T17:58:06.227Z
Size : LY2N-J DC12
SpecificationMet : RoHS
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 32000000
UpperTemperatureRating : 80 degrees_celsius
