Specification
Brand : Generic
BulletPoint1 : High voltage , DC control current, with , voltage optional 5V/12V/24/3-24V
BulletPoint2 : Easy to install, the module has strong anti-interference ability and stable performance
BulletPoint3 : Made of high‑quality materials, strong and , has a long service life. With great workmanship, this product can replacement for the old one
BulletPoint4 : Long life, high reliability, high sensitivity, low control power, good electromagnetic compatibility
BulletPoint5 : Fast switching, switching speed up to a few milliseconds, low electromagnetic interference, no ignition arc and
Color : #412
IncludedComponents : No

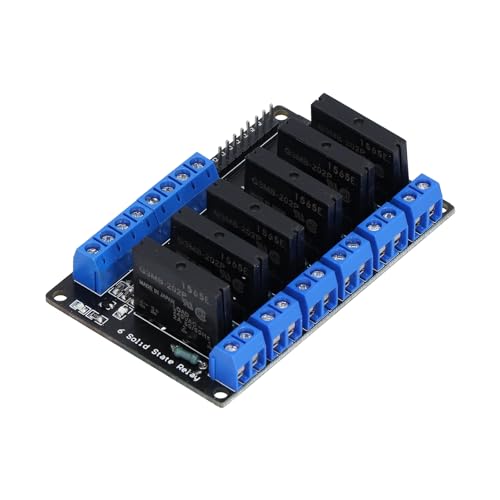

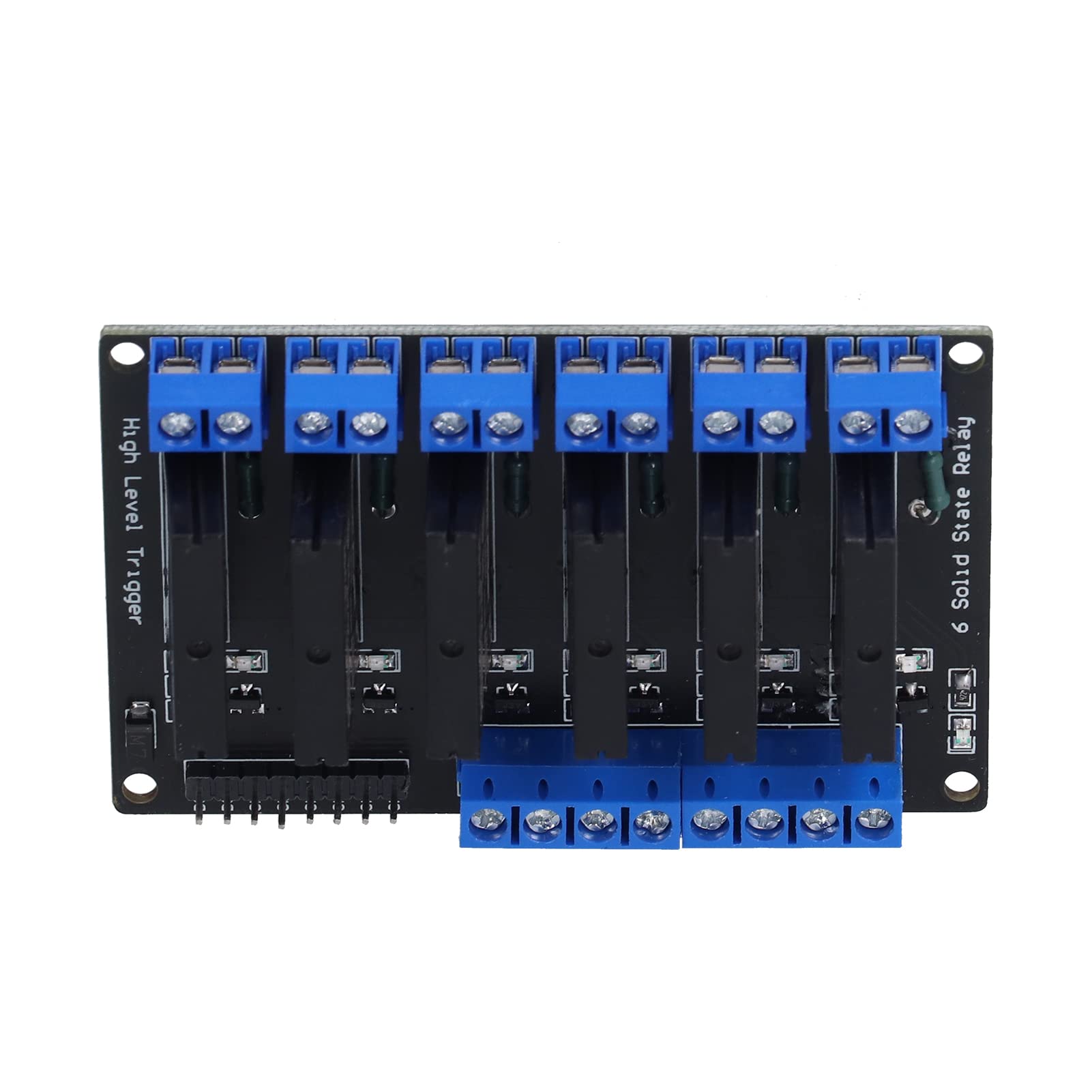

ItemName : Generic Solid State Relay Module, 6 Channel DC Control Electrical Equipment for Electrical Equipment (12V), Genericemw815gkg3-12
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 10 centimeters
ItemPackageDimensions_Width : 6 centimeters
ItemTypeKeyword : solid-state-relays
Manufacturer : Generic
Material : Copper
MaximumCurrent : 2 amps
ModelNumber : Genericemw815gkg3-12
NumberOfItems : 1
PartNumber : Genericemw815gkg3-12
ProductDescription : 1. Long life, high reliability, high sensitivity, low control power, good electromagnetic compatibility
2. Fast switching, switching speed up to a few milliseconds, low electromagnetic interference, no ignition arc and
3. Easy to install, the module has strong anti-interference ability and stable performance
4. High voltage , DC control current, with , voltage optional 5V/12V/24/3-24V
5. Made of high‑quality materials, strong and , has a long service life. With great workmanship, this product can replacement for the old one

Specification:
Item Type: Solid State Relay Module
Power Supply Voltage: 5V, 12V, 24V, 3-24V
Mode: High Level
Static Voltage: 0mA
Load Voltage: 240VAC, 50VDC (3-24V)
Load Current: 2A
Maximum Working Current: 79.6mA
Module Life: 10 Million Times

How to Use:
1. DC+ and DC‑ are used to connect to the power supply of the module, the voltage can be 5V/12V/24/3‑24V (subject to the module)
2. The CH terminal is the terminal of the module. When there is a , the output switch (A, B) of the solid state relay will be closed and the load will be electrically connected.
3. The meaning of high‑level and low‑level : high‑level : called PNP in industrial control, positive , that is, when the voltage between the terminal and the negative pole of the power supply reaches the voltage of the condition, the relay is closed
CH1: When the CH terminal has 3.3‑5V, the solid state relay can be triggered to turn on
DC‑: When the CH terminal has 0‑2.5V, the solid state relay is disconnected
DC+: (For the specific voltage range, please refer to the voltage in the electrical parameters

PackageList:
1 x Solid State Relay Module

ProductSiteLaunchDate : 2024-06-19T11:52:58.136Z
Style : 12V
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 39121600
Voltage1 : 24 volts
Voltage2 : 12 volts
