Specification
Brand : Fankerba
BulletPoint1 : Suitable for household appliances, industrial equipment, agriculture and forestry water, medical equipment, etc.
BulletPoint2 : Water inlet diameter:(3/4" Outside thread,Ø26mm).
BulletPoint3 : Water outlet diameter:4 ports ,each port is Ø12mm / Ø0.47 inch.
BulletPoint4 : Regular flow is 5L/min for this inlet water solenid valve.
BulletPoint5 : Normally Closed solenid valve:it will be open the valve when energized
Color : Black
ExteriorFinish : Plastic
ExternallyAssignedProductIdentifier : 9586500825325
ExternallyAssignedProductIdentifier1 : 0765951609817
ExternallyAssignedProductIdentifier2 : 765951609817
IncludedComponents : inc
ItemDisplayWeight : 1.16 pounds

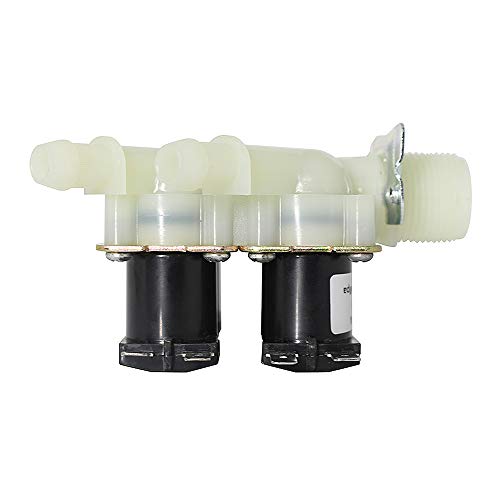

ItemName : Fankerba -3/4" DC 12V Four Way Inlet Water Solenoid Valve for Washing Machine,Drinking Fountain,etc,Nomally Closed,Plastic (DC 12V)
ItemPackageDimensions_Height : 3.14 inches
ItemPackageDimensions_Length : 3.74 inches
ItemPackageDimensions_Width : 3.5 inches
ItemPackageQuantity : 1
ItemShape : Rectangle
ItemTypeKeyword : industrial-solenoid-valves
Manufacturer : Fankerba
Material : Aluminum
Material1 : Plastic
Material2 : Metal
ModelName : We offer a wide range of air control solutions, including various types of valves and fittings to meet your needs. Our product line includes solenoid valve, air valve, idle air control valve, and air admittance valve, ensuring you can find the right component for any application. Our solenoids and solenoid actuator provide reliable performance, while pneumatic actuator and pneumatic products are suitable for various industrial uses. Additionally, our misting nozzles 1/4 and irritrol solenoid are ideal for gardening and irrigation systems. For high-performance vehicles, we offer a boost controller kit, and an auto drain valve for air compressor for compressors. Our air switch and air release valve are designed for various pneumatic systems, while the air horn valve is suitable for applications requiring strong airflow. We also provide air foot pedal and air control valve, catering to various operational needs. Particularly, the air admittance valve 2 inch and ac compressor control valve play crucial roles in specific applications. Our 12v air solenoid valve is suitable for low voltage systems, and the 1/4 push to connect fittings and 1/2 air line ensure simple and reliable connections. Choose our products, and you will receive high-quality, high-performance pneumatic and solenoid valve solutions to meet your diverse needs.
ModelNumber : 1175375
NumberOfItems : 1
NumberOfPorts : 4
PartNumber : 19990224
ProductDescription : Main technical indicators and matters needing attention:

1. Environmental conditions for use of water inlet valve of low pressure solenoid valve

1.1 the altitude shall not exceed 2500 meters

1.2 ambient temperature is 0 to 40 ℃ / 32-104℉

1.3 the air relative humidity below 95% (25 ℃/77℉ temperature)

2. Type and rated technical parameters

2.1 Type: guided (one-way) solenoid valve (also known as no-packing type guide valve action or solenoid valve)

2.2 rated voltage: DC 12V -300mA

2.3 working mode: short-time quota system (i.e. intermittent duty cycle system)

2.4 insulation grade: class E insulation

2.5 the use of fluid (0-85 ℃) water

2.6 water pressure: 0.02-0.8mpa

2.8 water flow characteristics:

The water pressure (Mpa) 0.02/0.1/0.3/0.8

Flow rate (L/min) : >5> 11>18>32

3. Product transportation and storage

3.1 in the process of storage, it shall not fall down, rain or snow will fall on it, and the outer carton will be damaged

3.2 without opening the outer packing cartons, the products shall be kept in well-ventilated indoor warehouses, and there shall be no corrosive gas in the surrounding air

3.3 water flow can be controlled at 4 liters 2.5 liters 1 liter and 0.5 liter per minute

4.Flow characteristics:( L/min )

4.1When the water inlet pressure is 0.02Mpa, flow is ≧5L/min

4.2When the water inlet pressure is 0.25Mpa,flow is ≧15L/min

4.2When the water inlet pressure is 0.8Mpa, flow is ≧25L/min

Product size:

117mm x 111mm x 57mm /4.6inch x 4.4inch x 2.2inch

Installation size:

Mounting hole distance: 45 mm /1.77inch
ProductSiteLaunchDate : 2018-08-12T07:00:00.000Z
Size : HV-03 4 holes and 2 positions
Style : DC 12V
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 40141600
ValveType : solenoid valve
Voltage : 1 volts
