Specification
Brand : INTSUPERMAI
BulletPoint1 : Intelligent Control -- Equipped with a microcomputer system, the T937 Reflow Oven offers seamless automation of the soldering process. It efficiently stores and executes 8 distinct soldering profiles, ensuring precision and consistency across multiple applications. It has temperature correction and compensation function.
BulletPoint2 : Accurate Temperature Control -- Cycle time: 2-16 min; Temp range: Room temp-350℃, it can ensure optimal welding conditions for various materials. Its 8 pre programmed temperature curves (also supporting self setting curves), as well as dedicated heating and forced cooling functions, are more precise and efficient.
BulletPoint3 : Efficient Cooling System -- This reflow soldering furnace adopts a unique ventilation design and a built-in smoke exhaust port (compatible with a diameter of 110mm exhaust pipe), which helps with rapid and uniform cooling, minimizes thermal stress on precision components, and improves the integrity of solder joints.
BulletPoint4 : More Humanized Details -- The Precision Mini Reflow Ovene adopts a drawer design with a visible window, making it easy to monitor the welding process; an intuitive LCD display, a lightweight yet robust stainless steel construction and heat-insulating stainless steel handle further enhances its overall functionality and usability, making operation more convenient.

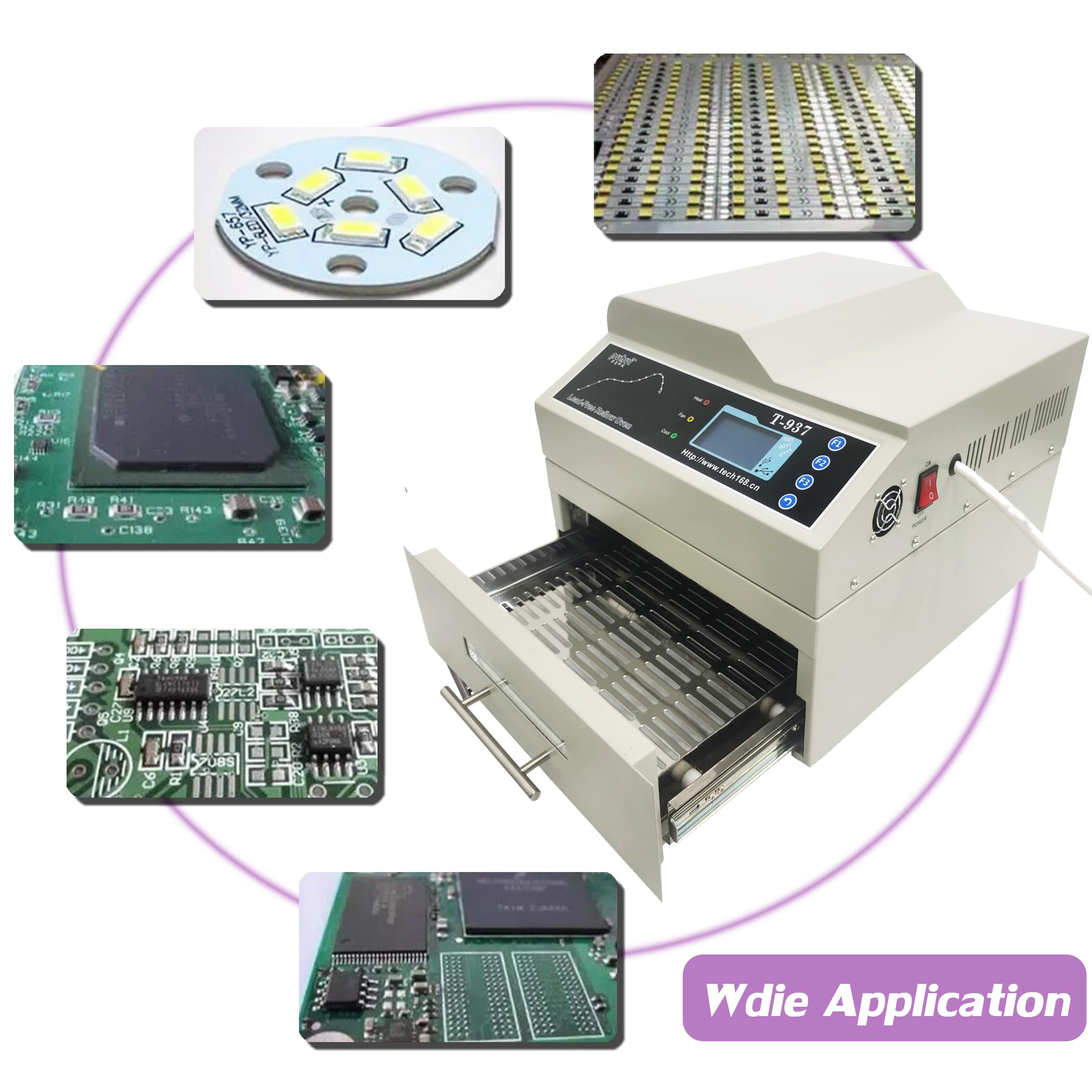

BulletPoint5 : Wide Application -- This micro-computer control reflow soldering machine has the functions of reflow, drying, heat preservation, shaping, rapid cooling, etc. It can complete the welding of single and double sided PCB boards in CHIP, SOP, PLCC, QFP, BGA and other packaging forms; It can be used for product glue curing, circuit board thermal aging, PCB board maintenance and other work. It is widely used in R & D and small batch production of various enterprises, companies and institutes.
Color : White
ExternallyAssignedProductIdentifier : 4861170714960
ExternallyAssignedProductIdentifier1 : 0840403739110
ExternallyAssignedProductIdentifier2 : 840403739110
IncludedComponents : Hose
IncludedComponents1 : 1* Soldering Hot Plate
IncludedComponents2 : 1* Power Cord
IncludedComponents3 : 1* Chinese Manual
IncludedComponents4 : 1* Ironing Head
IncludedComponents5 : 1* Ironing Spatula
ItemName : INTSUPERMAI Reflow Oven T-937 Micro-computer Control Reflow Soldering Machine Automatic Infrared & Hot Air Reflow Oven 306 mm×322mm Drawer Size Lead Free Reflow Soldering Machine 110V 2300W
ItemPackageDimensions_Height : 15.16 inches
ItemPackageDimensions_Length : 20.08 inches
ItemPackageDimensions_Width : 18.5 inches
ItemPackageQuantity : 1
ItemTypeKeyword : soldering-stations
Manufacturer : INTSUPERMAI
Material : stainless_steel
Material1 : fabric
Material2 : metal
ModelName : SY022755
ModelNumber : SY022755
NumberOfChannels : 1
NumberOfItems : 1
PartNumber : SY022755
PowerSourceType : ac
ProductDescription :
Notice:
The Reflow Oven does not include a plug, you need to wire it yourself.
The machine should be connected to the exhaust passage within the outdoor ventilation or exhaust recovery, prevent solder paste volatiles poisoning.
The machine must be connected with Earth wire.

Parameters:
Drawer area: 306 mm×322mm/12.05×12.68in
Soldering area:
Lead-Free Welding: 260mm×260mm/10.24×10.24in
Lead Welding: 300mm×310mm/11.81×12.2in
Voltage: 110V
Power rating: 2300W
Cycle time: 2-16 min
Temp range: Room temp-350℃

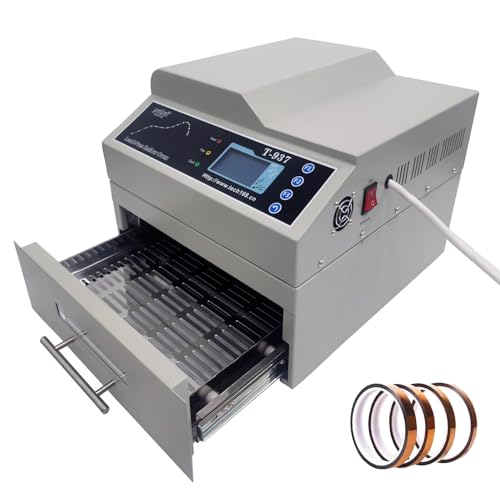

Item included:
1 set of Reflow Oven T937 Micro-computer Control Reflow Soldering Machine
4 rolls 10mm×30m Heat Resistant Tape

Operations:
1)Enter the software interface
Press F1, will come to the independent operation interface
2)Select the wave
Under the independent operation interface, press F2 to select wave, press F1 and F3 to select the wave you need, then press "return key" to independent operation interface.
3)Run the wave
Under the independent operation interface, press F1, it will run the wave you selected.
4)Thermostatic timer function
Under the independent operation interface, press F3, start the thermostatic timer function.
Thermostatic timer function means the machine can keep thermostatic temp if you set time, once time over, the machine stop heating.
Press F3 change "set temp"/"set time", press F1/F2 to adjust the numerical value, the time is--:-- is untimed model, means the machine is keeping thermostatic heating, not stop automatically.
5)Change language
Under the main interface, press F3 to change the language.

ProductSiteLaunchDate : 2024-06-20T02:18:24.882Z
RegulatoryComplianceCertification : RSHSS.0635GD-004
Size : Large
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
TemperatureStability : 350 degrees_celsius
UnitCount : 1
UnspscCode : 23271800
UpperTemperatureRating : 350 degrees_celsius
Voltage : 110 volts
Wattage : 2300 watts
