SpecificationBrand : Hiwin
BulletPoint1 : Dimensions: L - 150 mm / 5.91 in x W - 24 mm / 0.94 in x H - 8.5 mm / 0.33 in
BulletPoint2 : Pitch (P): 40 mm / 1.57 in
BulletPoint3 : Mounting Holes (n): 4
BulletPoint4 : "E" Dimension: 15 mm / 0.59 in (distance from the edge of the rail to the first mounting hole on center)
BulletPoint5 : Only use HIWIN Blocks with HIWIN Rail
Color : #711
Department : Unisex Adult
ExternallyAssignedProductIdentifier : 9463745666091
ExternallyAssignedProductIdentifier1 : 0702940147684
ExternallyAssignedProductIdentifier2 : 702940147684
IncludedComponents : No
IncludedComponents1 : Genuine HIWIN MGWR-12-R0150-H-M Linear Slide Guide Rail
IncludedComponents2 : Green Plastic Rail Mounting Hole Caps

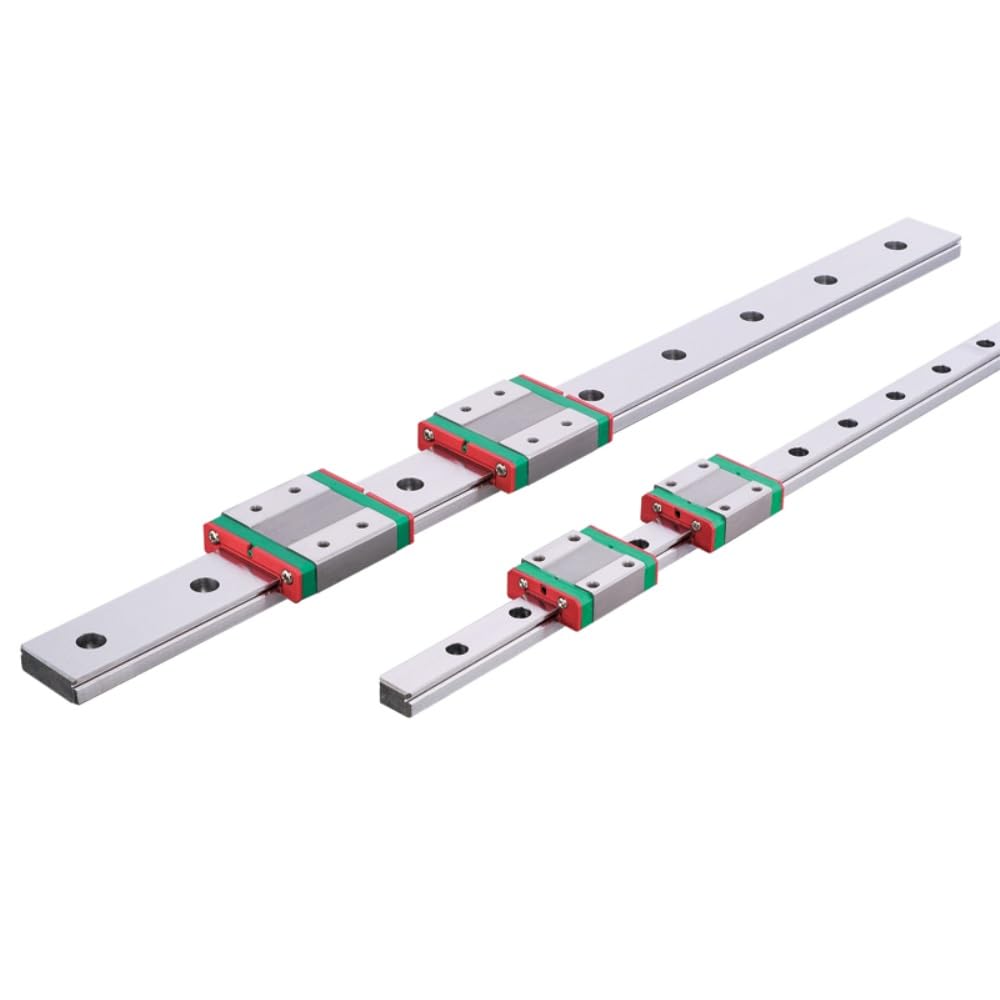

ItemName : Genuine HIWIN MGWR-12-R0150-H-M - 150 mm Linear Slide Guide Rail
ItemPackageDimensions_Height : 2 centimeters
ItemPackageDimensions_Length : 12 centimeters
ItemPackageDimensions_Width : 4 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : slide-rails
Manufacturer : HIWIN
Material : Stainless Steel
ModelName : Genericyfd5ir2m6p
ModelNumber : MGWR-12-R0150-H-M
MountingType : Side Mount
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : MGWR-12-R0150-H-M
ProductDescription :
Rail Details:
- All HIWIN-branded Block and Rail is genuine and made in Taiwan
- Each cut is made within ± 0.5 mm
- Each rail includes green mounting hole caps
- The edges of each end are ground / deburred for easy block installation
MG Series – Miniature Linear Guideway
Features of MGW Series
Design features of wide type miniature guideways- MGN:
- The enlarged width design increases the capacity of moment loading.
- Gothic arch contact design has high rigidity characteristics in all directions.
- Specification with ball retainers would avoid ball falling when the blocks are removed from rails.
- Interchangeable types are available in certain sizes and precision grades.
MGW Series Application Examples:
- Printer
- Robotics
- Precision Measuring Equipment
- Semiconductor Equipment
ProductSiteLaunchDate : 2024-04-11T07:00:00.000Z
Size : 150 mm
StreetDate : 2024-04-11T07:00:00.000Z
Style : Wide
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 0.4921
