Specification
Brand : UeeKKoo
BulletPoint1 : This is PCIe To M.2 Adapter With PoE Function compatible with Raspberry Pi 5. It combines Power over Ethernet (PoE) and PCIE to M.2 functions. Supports IEEE 802.3af/at network standards
BulletPoint2 : Power Over Ethernet---Providing both network connection and power supply for your Raspberry Pi in one cable
BulletPoint3 : Support NVMe Drive Protocol --- Compatible With 2230/2242 Size M.2 Solid State Drive. Supports Gen2 and Gen3 Modes, Supports Booting PI5 From Solid State Drive
BulletPoint4 : Connecting to PI5 via 16PIN Cable---Based on 16PIN PCIe Interface of Raspberry Pi 5. Standard RPi 40PIN GPIO stackable header, allows connecting other HATs
BulletPoint5 : With Active Cooling fan---Accelerate Cooling Effect, More Stable Performance. Onboard Dual LED Indicators--- Easy to monitor the Working Status
BulletPoint6 : Onboard 5V & 12V header outputs---5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power). Be able to power extra devices while providing stable power to Raspberry Pi
Color : Black
CompatibleDevices : Raspberry Pi 5
ConnectivityTechnology : USB
ConnectivityTechnology1 : USB
ConnectivityTechnology2 : Wi-Fi
ControlMethod : application
CoolingMethod : Air
ExternallyAssignedProductIdentifier1 : 614591448198
ExternallyAssignedProductIdentifier2 : 700646946136
ExternallyAssignedProductIdentifier3 : 714491097226
ExternallyAssignedProductIdentifier4 : 0700646946136
ExternallyAssignedProductIdentifier5 : 0714491097226
ExternallyAssignedProductIdentifier6 : 0614591448198
GraphicsCardInterface : pci_e
GraphicsDescription : Dedicated
HardwareInterface : ethernet
HumanInterfaceInput : buttons
IncludedComponents : USB AVRISP XPII, Cable, 6-pin cable (spare), to 10-pin ISP cable, 6-wire multicolour custom connector
ItemName : PCIe to M.2 Adapter with PoE Function Compatible with Raspberry Pi 5, Pi 5 POE HAT M.2-M-Key HAT+ Supports NVMe Protocol M.2 SSD 2230/2242, IEEE 802.3af/at Network Standard with Metal Heatsink
ItemPackageDimensions_Height : 10.6934 centimeters
ItemPackageDimensions_Length : 2.8956 centimeters
ItemPackageDimensions_Width : 8.1026 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : single-board-computers
KeyboardLayout : qwerty
Manufacturer : UeeKKoo
MemoryClockSpeed : 8 MHz
MemorySpeed : 8 MHz
MemoryStorageCapacity : 8 GB
ModelName : USB AVRISP XPII
ModelNumber : PCIe To M.2 With PoE HAT
ModelYear : 2016
ModemType : digital
NumberOfItems : 1
OperatingSystem : Linux (Raspberry Pi OS)
PartNumber : PCIe To M.2 With PoE HAT
PowerPlugType : type_cee716_europlug
ProcessorCount : 1
ProductDescription : PCIe To M.2 Adapter With PoE Function For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Supports 802.3af/at network standard, Pi 5 PoE HAT

Features

1. This is PCIe To M.2 Adapter With PoE Function compatible with Raspberry Pi 5.
It combines Power over Ethernet (PoE) and PCIE to M.2 functions. Supports IEEE 802.3af/at network standards.
It supports M.2 NVME hard drives of 2230 and 2242 sizes, and supports SSD booting of Raspberry Pi.

2. Power Over Ethernet---Providing both network connection and power supply for your Raspberry Pi in one cable

3. Support NVMe Drive Protocol --- Compatible With 2230/2242 Size M.2 Solid State Drive.
Supports Gen2 and Gen3 Modes, Supports Booting PI5 From Solid State Drive

4. Connecting to PI5 via 16PIN Cable---Based on 16PIN PCIe Interface of Raspberry Pi 5.
Standard RPi 40PIN GPIO stackable header, allows connecting other HATs

5. With Active Cooling fan---Accelerate Cooling Effect, More Stable Performance.
Onboard Dual LED Indicators--- Easy to monitor the Working Status

6. Onboard 5V & 12V header outputs---5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power).
Be able to power extra devices while providing stable power to Raspberry Pi

Specifications

Network Standard: IEEE 802.3af/at PoE
PoE Power Input: 37V ~ 57V DC in
Power Output:

GPIO Header: 5V 4.5A (MAX)
2P Header: 12V 2A (MAX)
Dimensions : 56.5 × 70.0mm

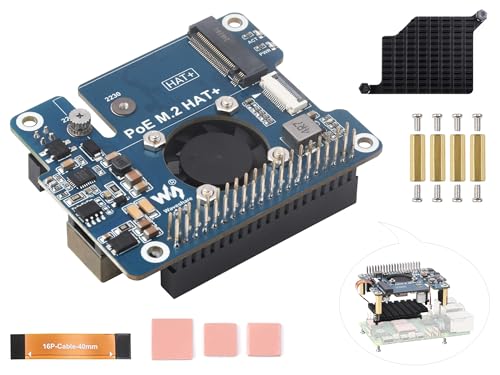

Package Content
PoE M.2 HAT+ x1
Metal heatsink x1
16P-Cable-40mm x1
Thermal tape (3PCS) x1
Screws pack x1

ProductSiteLaunchDate : 2024-09-02T14:21:11.416Z
Size : Small
SpecificUsesForProduct : programming
Style : Classic
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
SystemRamType : eeprom
TotalUsbPorts : 1
UnspscCode : 43201400
Voltage : 5 volts
WarrantyDescription : Technical Support is provided
WirelessCommStandard : 802_11_B
WirelessNetworkTechnology : wifi
