Specification
Brand : Orange Pi
BulletPoint1 : Orange Pi 5 uses Rockchip RK3588S new generation 8-core 64-bit processor, quad-core A76+quad-core A55, with 8nm process design, up to 2.4GHz main frequency, integrated ARM Mali-G610 GPU, embedded high-performance 3D/2D image acceleration module, built-in NPU with 6Tops computing power, with 16GB (LPDDR4/4x), and up to 8K display processing capability.
BulletPoint2 : Orange Pi 5 Single Board Computer provides abundant interfaces, including HDMI output, GPIO interface, M.2 PCIe2.0, Type-C, Gigabit LAN port, 2*USB2.0, 1*USB3.0, etc.
BulletPoint3 : Orange Pi 5 microcontroller open source board mini computer can be widely used in tablets, edge computing, artificial intelligence, cloud computing, AR/VR, intelligent security, smart home and other fields, covering AIoT various industries.
BulletPoint4 : Orange Pi 5 Mini PC supports Orange Pi OS, the official operating system developed by Orange Pi, as well as Android12 and Debian11.
BulletPoint5 : Orange Pi Single Board Computers can builed a computer, a wireless server, Games, music and sounds, HD video, a speaker, Android, Scratch.Pretty much anything else, because Orange Pi is open source.
BulletPoint6 : Orange Pi 5 onboard M.2 PCIe 2.0 interface, supporting access to NVMe SSD hard drives, increasing massive data storage space, and meeting the needs of fast read/write and mass storage At the same time, it supports HDMI 2.1 8K video output, USB-C (DP1.4), and dual MIPI D-PHY video output, which can achieve multi-screen display and support three MIPI interface camera inputs.
Color : Pi 5 16GB
CompatibleDevices : MIPI Cameras, Wi-Fi Devices, Bluetooth Devices, USB Devices (Keyboards, Mice, Storage), Displays/TVs, Audio Devices (Headphones, Speakers), Ethernet Devices
ConnectivityTechnology1 : Ethernet
ConnectivityTechnology2 : USB
ConnectivityTechnology3 : HDMI
IncludedComponents : Orange Pi 5 16GB Single Board Computer
ItemName : Orange Pi 5 16GB Rockchip RK3588S 8 Core 64 Bit Single Board Computer, 2.4GHz Frequency 8K Video Decoding Open Source Board Mini PC Desktop Run Orange Pi OS, Android12, Debian11 (Pi 5 16GB)
ItemPackageDimensions_Height : 13.589 centimeters
ItemPackageDimensions_Length : 2.6924 centimeters
ItemPackageDimensions_Width : 8.001 centimeters
ItemTypeKeyword : single-board-computers
Manufacturer : Shenzhen Xunlong Software CO.,Limited
MemoryStorageCapacity : 16 GB
ModelName : Orange Pi 5
NumberOfItems : 1
OperatingSystem1 : Orange Pi OS
OperatingSystem2 : Debian 11
OperatingSystem3 : Android 12
ProcessorCount : 4

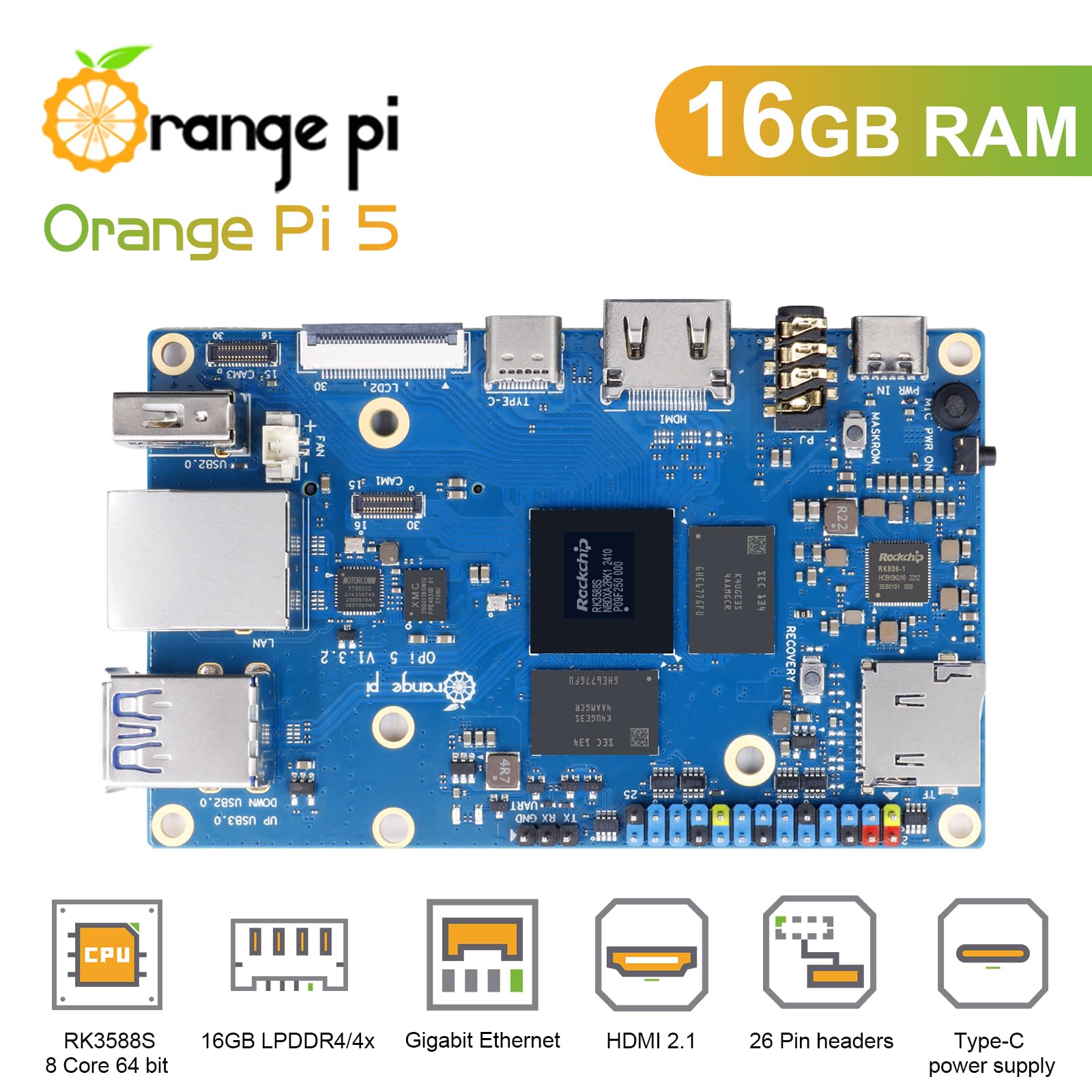

ProductDescription : Product Introduction
Main control chip Rockchip RK3588S (8nm LP process)
CPU: 8-core 64-bit processor; Typical large and small core architecture of 4-core Cortex-A76 and 4-core Cortex-A55, the main frequency of the large core is 2.4GHz, and the main frequency of the small core is 1.8GHz
GPU:Integrated ARM Mali-G610; Built-in 3D GPU; Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2
NPU: Built-in AI accelerator NPU with up to 6 Tops computing power, supports INT4/INT8/INT16 mixed operation
PMU: RK806-1
RAM: 4GB/8GB/16GB/32GB (LPDDR4/4x)
Storage: QSPI Nor FLASH 16MB; MicroSD (TF) Card Slot; PCIe M.2 M-KEY (SSD) Socket
USB: USB3.0*1; USB2.0*2; Type-C (USB3.1)*1
Video output: HDMI2.1, up to 8K @60Hz; DP1.4 (DisplayPort), DP1.4 is multiplexed with USB3.1 port, and shared port with Type-C; 2 * MIPI D-PHY TX 4Lane, configurable up to 4K @60Hz
Camera: MIPI CSI 4Lane; 2 * MIPI D-PHY RX 4Lane
Audio: CODEC- ES8388; 3.5mm headphone jack audio input/output; Input: Onboard MIC; HDMI 2.1 eARC
Ethernet: 10/100/1000Mbps Ethernet (YT8531B )
Expansion port: 26Pin double row of pins, supports up to: 2 * UART; 3 * PWM; 2 * IIC; 1 * SPI; 1 * CAN; 1 * PWR_ON; 15 *GPIO, these functions are multiplexed and cannot be supported at the same time
PCIe M.2 M-KEY Socket: supports PCIe WIFI6+BT 5.0; Support SSD
Keys: 1* MaskROM key, 1*RECOVERY, 1*Reset key
Power supply: Support DC power supply 5V @ 4A;
LED: Power Indicator: Red; Status Indicator: Green
Debug: 3Pin debug serial port (UART)
Supported operating systems: Orange Pi OS, Android12, Debian11

Appearance specification introduction
Product Size: 100mm*62mm
Weight: 46g
ProductSiteLaunchDate : 2022-11-10T08:00:00.000Z
SupplierDeclaredDgHzRegulation : not_applicable
TotalUsbPorts : 3
UnspscCode : 43211516
WarrantyDescription : No
WirelessCommStandard : 802_11_B
