Brand : Lufasa
BulletPoint : Electronic DIY Kit Mobile Phone Signal Flash Light DIY Kit 3-12V Radiation Power Do-it-yourself
BulletPoint1 : Product Features: The Sure Call Fusion4Home Yagi/Panel boosts weak signal in areas up to 5, 000 sq. ft. This results in fewer dropped calls, improved battery life, higher audio quality, and faster data and streaming. Sure call cell phone signal boosters are compatible with all North American carriers including: AT&T, T-Mobile, Verizon, Sprint, Straight Talk, U. S. Cellular and many more. FCC approved.
BulletPoint2 : Best For: The Sure Call Fusion4Home Yagi/Panel is the most powerful cell phone signal booster for large homes in rural and suburban areas. Indoor coverage area will vary based on available outdoor signal strength: 1-2 bars ~2, 000 sq. Ft, 3-4 bars ~3, 000 sq. Ft, 5 bars ~5, 000 sq. Ft.
BulletPoint3 : Future Proof: The SureCall Fusion4Home Yagi/Panel is compatible with all 5G phones. It will boost voice and 4G LTE data signals on 5G phones and devices.
BulletPoint4 : Installation: Simply set up the outdoor yagi-directional antenna, run the coax cable into your home, and place the cellular amplifier (base unit) where you want. Next, mount the indoor panel-antenna on a wall or inside of a closet. Then simply connect it to the amplifier using the remaining piece of coax cable.
BulletPoint5 : Adjustable outdoor antenna mounting pole
BulletPoint6 : 1” diameter, 20” length
BulletPoint7 : Aluminum construction
BulletPoint8 : Part number: SC-MOUNT-JBAR
Color : Fusion4Home Yagi/Panel
CompatibleDevices : Smartphone
ExternallyAssignedProductIdentifier : 4852343715372
FrequencyBandsSupported : 700 MHz, 850 MHz, 1700/2100 MHz, 1900 MHz
Impedance : 50 ohm
IncludedComponents : Instruction manual
ItemName : Electronic DIY Kit Mobile Phone Signal Flash Light DIY Kit 3-12V Radiation Power Do-it-Yourself
ItemPackageQuantity : 1
ItemTypeKeyword : cell-phone-antenna-boosters
Manufacturer : Lufasa
Material : ceramic
MountingType : Wall Mount
PartNumber : ZGL-module-10395
PowerSourceType : Corded Electric
ProductDescription :

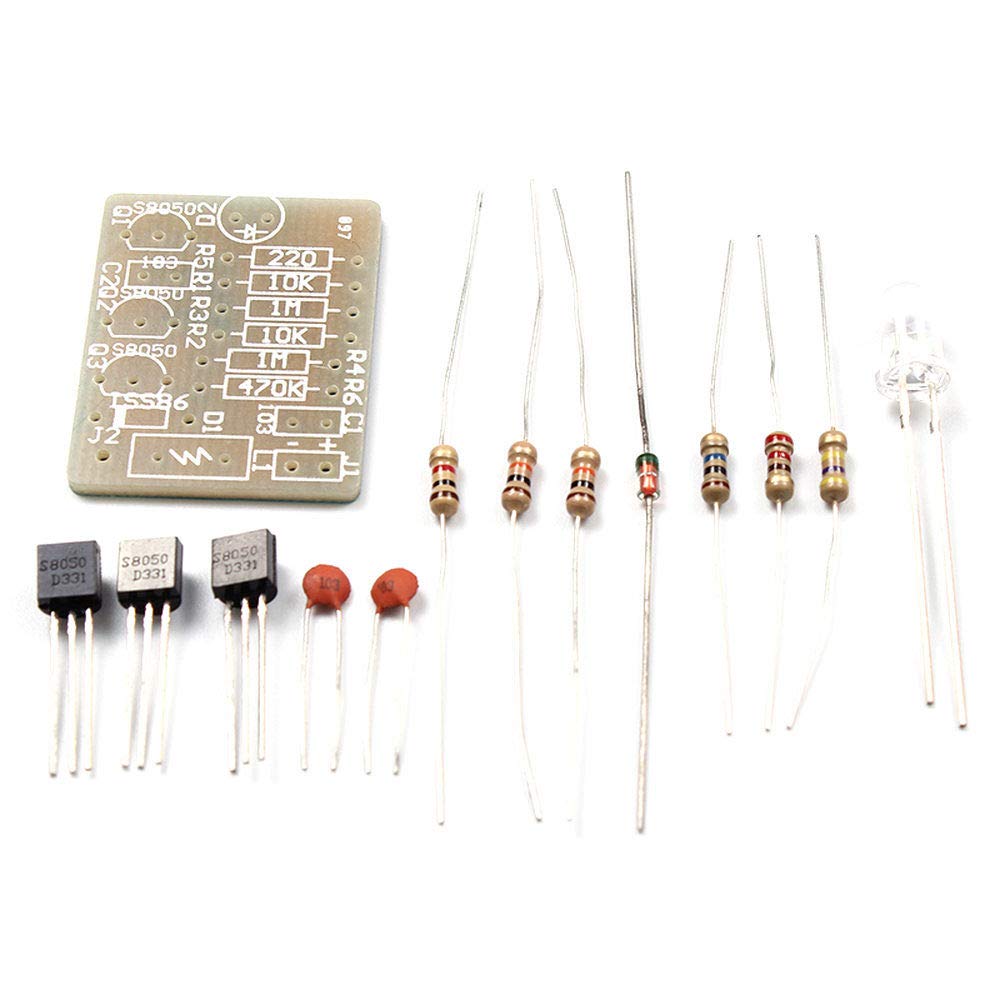

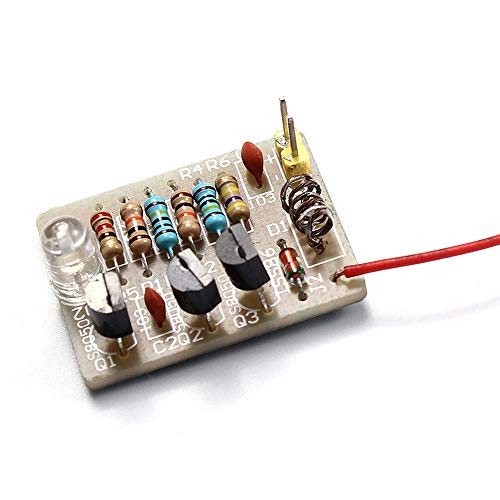

ICSK053A Precise DIY Kit Mobile Phone Signal Flash Light 3-12V Radiation Power

Phone call lights kit can be used to sense the GSM signal display, sensing distance up to 1 m, it is a very interesting DIY kit.

1. Electrical Characteristics

1). Supply voltage: 3 to 12V;
2). Sensing distance: about 1 m;
3). PCB board size: 2.2 cm * 2.8 cm;
4). Scope: GSM mobile phone signal, not available for CDMA mobile;

2. Circuit theory:

The main circuit is amplified antenna sensor signal circuit and circuit. Sensing signal through the antenna 3 to S8050 transistor amplifier to drive the LED, so that light up. When no signal is detected, no calls or no GSM phones, LED circuit is not only detects the signal to light up LED.
3. Assembly consideration:

Inductance of production:
Inductance 0.25 to 0.5 MM enameled available in pen core above can be around 5-10 laps. After a good round with a blade to scrape paint inductor 2, so we go soldered to the board.
4. Component list




Component




Label




Footprint




Value




Number






Ceramic capacitors




C1, C2




RAD-0.1




103




2






ISS86




D1




DO-35




　




2






5MM while LED




D2




LED_5mm




　
