Specification
AgeRangeDescription : adult
Brand : LHXEQJAM
BulletPoint : Signal Amplifiers
Color : One Color
ExternallyAssignedProductIdentifier : 7540071943644

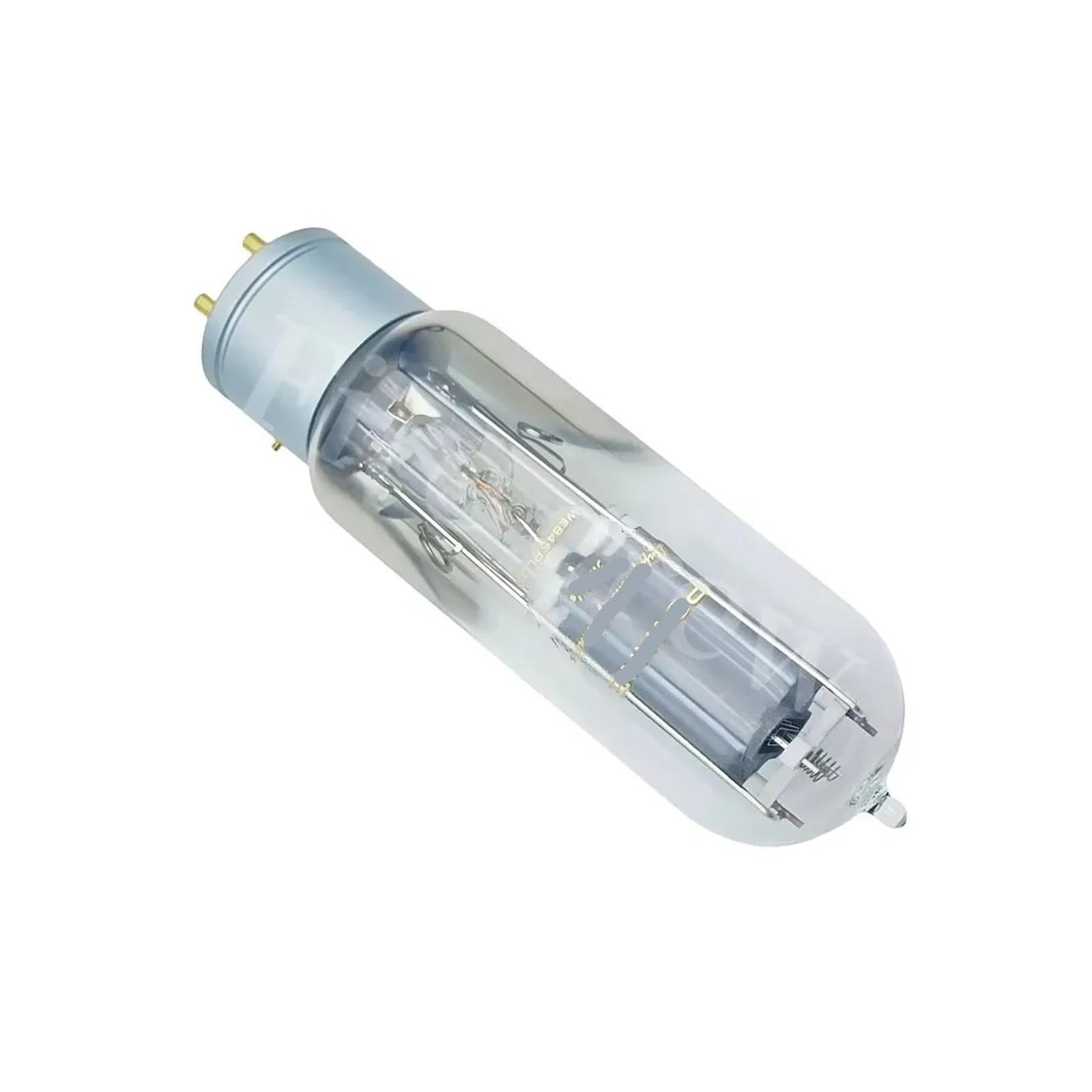

ItemName : WE845 Plus Tube 1:1 Copy Upgraded Version WE 845 845B 845T 845C(2pcs Matched Pair)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 1 centimeters
ItemPackageDimensions_Width : 1 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : satellite-tv-signal-amplifiers
Manufacturer : LHXEQJAM
ModelName : LHXEQJAM
ModelNumber : LHXEQJAM
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : LHXEQJAM
ProductDescription : Signal Amplifiers
Filament Heating
Voltage frequency-------------------------------------------10V
If ----------------------------------------3.25 A
Extreme Rating
Anode voltage----------------------------------1250V
Anode power dissipation-----------------------------75 W
Maximum signal output power --------------------------- 150 W
Maximum anode current------------------------------120 mA;
Interelectrode capacitance
Input capacitance ----------------------------------6 PF
Output Capacitor ----------------------------------4.5 PF
Cross-circuit capacitance---------------------------------14.5 PF
Static parameters
Ua----------------------------------------1250V
-Ug------------------------------------------------200V
Ia------------------------------------------------80 mA
Gm--------------------------------------3 mA/V
Li----------------------------------------------------1.7 K
You----------------------------------------------------------------5
RL---------------------------------------------3.4 K
Ug(pk)--------------------------------69 V
Pout-------------------------------------15 W
Recommended working status (reference value)
Monocular A1 zoom:
Voltage source ———— 1000 1000 1250 volts
-Ug--- 145 155 209 V
RL-----6 9 16 K
Current------90 65 52 mA
Transconductance -----3.1 - - mA/V
Peak voltage --- 110 148 V
Mileage------1.7 1.9 2.1 K
Pout----24 21 24 W
Push-pull AB1-level zoom:
Ua----------------- 800 1000 1000 1250 V
-Ug---------------- 125 170 175 225 volts
RL------------------ 4.5 4.6 4.6 6.6 K
Ia--------------------------------80 70 40 40 mA
Ug(pk)----------------177 240 - - V
Ia (mAx.sig)---------170 230 230 240 mA
Pout----------------40 75 75 115 W

Channels: 1
Model: WE845 PLUS
Maximum power per channel: No power supply
ProductSiteLaunchDate : 2025-06-25T06:05:22.554Z
Size : 2pcs Matched Pair
UnitCount : 1
