Specification
Brand : Generic
BulletPoint : 45W SSB Linear Power CW FM HF Radio Transceiver Shortwave DIY Kit
BulletPoint1 : With built‑in speaker.
BulletPoint2 : AM/FM high‑performance receiver.
BulletPoint3 : Telescopic antenna.
BulletPoint4 : With standard earphones jack.
BulletPoint5 : Light weight and portable size makes it easy to carry with you.
Color : Green
CompatibleDevices : Microphone
ExternallyAssignedProductIdentifier : 7083957439959
Frequency : 108 MHz
FrequencyRange : 3 MHz to 30 MHz
Hazmat1 : LITHIUM ION BATTERIES CONTAINED IN EQUIPMENT
Hazmat10 : DE_SmallLithiumIonBatteryInEquipment
Hazmat11 : EG_SmallLithiumIonBatteryInEquipment
Hazmat12 : ES_SmallLithiumIonBatteryInEquipment
Hazmat13 : FR_SmallLithiumIonBatteryInEquipment
Hazmat14 : GB_SmallLithiumIonBatteryInEquipment
Hazmat15 : IE_SmallLithiumIonBatteryInEquipment
Hazmat16 : IN_SmallLithiumIonBatteryInEquipment
Hazmat17 : IT_SmallLithiumIonBatteryInEquipment
Hazmat18 : JP_SmallLithiumIonBatteryInEquipment
Hazmat19 : MX_SmallLithiumIonBatteryInEquipment
Hazmat2 : UN3481
Hazmat20 : NL_SmallLithiumIonBatteryInEquipment
Hazmat21 : PL_SmallLithiumIonBatteryInEquipment
Hazmat22 : SA_SmallLithiumIonBatteryInEquipment
Hazmat23 : SE_SmallLithiumIonBatteryInEquipment
Hazmat24 : SG_SmallLithiumIonBatteryInEquipment
Hazmat25 : TR_SmallLithiumIonBatteryInEquipment
Hazmat26 : US_SmallLithiumIonBatteryInEquipment
Hazmat27 : ZA_SmallLithiumIonBatteryInEquipment
Hazmat28 : 9
Hazmat3 : II
Hazmat4 : AE_SmallLithiumIonBatteryInEquipment
Hazmat5 : AU_SmallLithiumIonBatteryInEquipment
Hazmat6 : BE_SmallLithiumIonBatteryInEquipment
Hazmat7 : BR_SmallLithiumIonBatteryInEquipment
Hazmat8 : CA_SmallLithiumIonBatteryInEquipment
Hazmat9 : CN_SmallLithiumIonBatteryInEquipment
Impedance : 50 ohm
IncludedComponents : [Parts for assembly, no heat radiator]
ItemName : Generic 45W SSB Linear Power CW FM HF Radio Transceiver Shortwave DIY Kit
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 11 centimeters
ItemPackageDimensions_Width : 6 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : shortwave-and-all-hazard-radios
Manufacturer : Generic
ModelName : Airshirofbn1wepc
ModelNumber : 37a80e17-74db-4458-8790-df8a360f60b3
NumberOfChannels : 10
NumberOfItems : 1
PartNumber : YGQ_MODULE_10951
PowerSourceType : Battery Powered
ProductDescription : | |
Features:
Common used in SSB, AM linear power , the CW, FM, power , and the most basic signal amplification.
Easy installation and operation.
Low noise, high cost performance, very suitable for DIY enthusiasts.

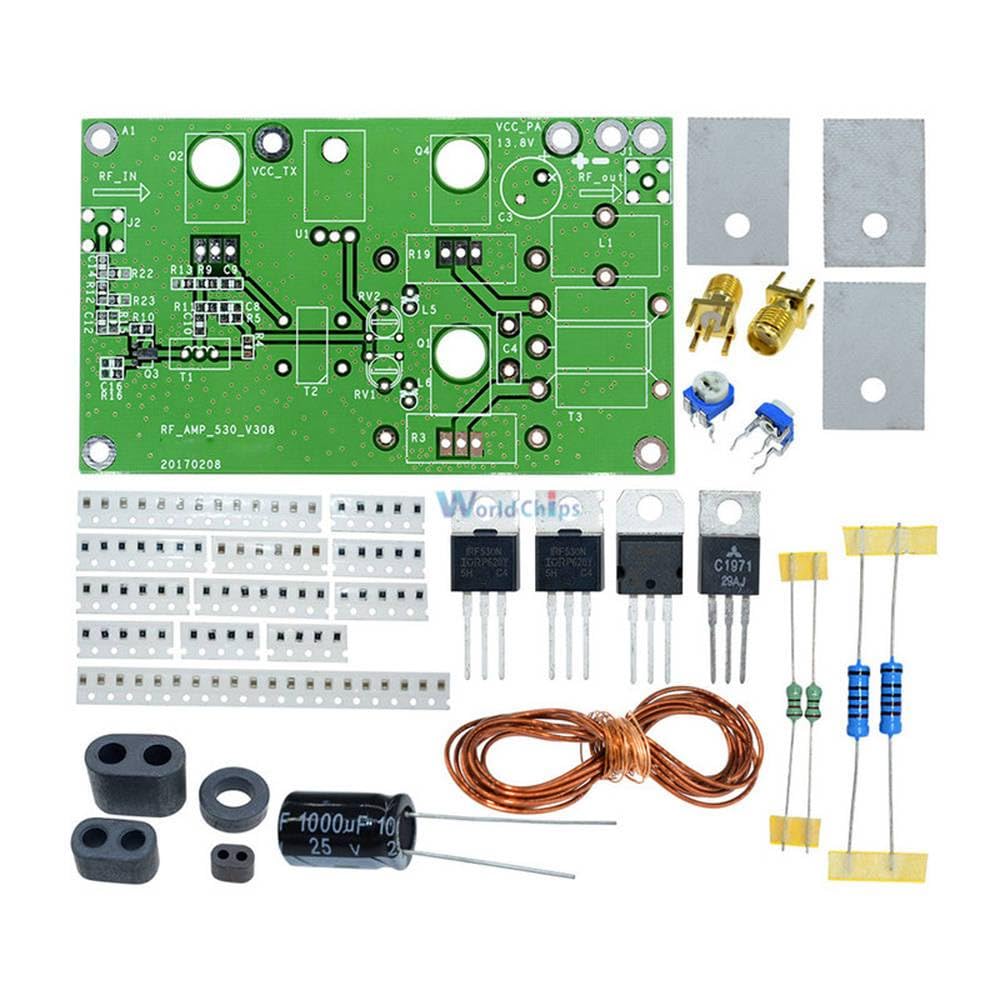

Our product is sent by parts, which not include heat radiator, please help yourself to assemble.
The overall gain more than 40db, which is 10000 times, 10W input 1mW output.
Specifications:
Input Power: 1-5mW
Output Power: 45W (Max.)
Input Voltage: DC 13.8V 10A or higher
Max. Output Power: 57W (not with cooling fin)
Output Impedance: 50 ohm, can according to need to adjust between 10-200 ohm
Input Frequency Range: 3M-30MHz(HF channel)
Input/Output Interface: Standard SMA interface, external thread hole
PCB Size: 60 * 100 mm
Diameter of Located Hole: 3mm
Color: Green
Package Size: 13 * 8 * 1.5cm
Package Weight: 58g / 2.07oz
Notes:
-The following data to test in person, these data sheet is in a large heat sink can withstand 200W above measured, there is not enough cooling capacity, please do not limit, it's not safe.
-The upgrade board test data,so it can be used for all HF Channel,
-In 3 to 5 MHz this period, because of the low frequency, small inductance, lead to the gain has a certain loss, the output power is lower than 7 MHz this point.
3.500MHz 54W
7.050MHz 56W
10.000MHz 57W
14.270MHz 55W
21.400MHz 41W
24.000MHz 37W
28.100MHz 25W
29.600MHz 20W
Package List:
1 * SSB Linear Power
ProductSiteLaunchDate : 2024-05-15T13:09:08.511Z
RadioBandsSupported1 : FM
RadioBandsSupported2 : AM
Size : US Plug
SupplierDeclaredDgHzRegulation : not_applicable
TunerTechnology : Analog
TunerTechnology1 : UHF
TunerTechnology2 : VHF
UnspscCode : 43191510
Voltage : 13.8 volts_of_direct_current
WaterResistanceLevel : not_water_resistant
