Specification
AgeRangeDescription : Adult
Brand : DIYmall
BulletPoint : ASMG-MTB 360 degree servo robot steering motor
BulletPoint1 : 70kg digital servo, metal gear, high performance brushless motor
BulletPoint2 : Operating voltage: 4.8V~8.4V; Stall torque (8.4V): 71kg/cm; Operating speed (8.4V): 0.1sec / 60°
BulletPoint3 : Controllable angle range from 0 to 180 degrees(at 500→2500μsec), and the dead band width is ≤3 μsec, Excellent linearity, precision control
BulletPoint4 : Waterproof: IP66, splash water resistance, but it cannot work underwater
BulletPoint5 : Application: compatible with 1/5 1/8 1/10 RC Car Crawler, RC Truck, Monster Car, Off-road vehicle, Airplane, RC Boat, DIY Robot
BulletPoint6 : What you will get: 1 x servo +1 x 25T metal horn
Color : 500 kg.
CpsiaCautionaryStatement : no_warning_applicable
EducationalObjective : Develop fine motor skills and understanding of mechanical systems through RC model building and operation
ExternallyAssignedProductIdentifier : 6018621305583
ExternallyAssignedProductIdentifier1 : 0707638064106
ExternallyAssignedProductIdentifier2 : 707638064106
GpsrSafetyAttestation : 1
IncludedComponents : 1 x servo +1 x 25T metal horn

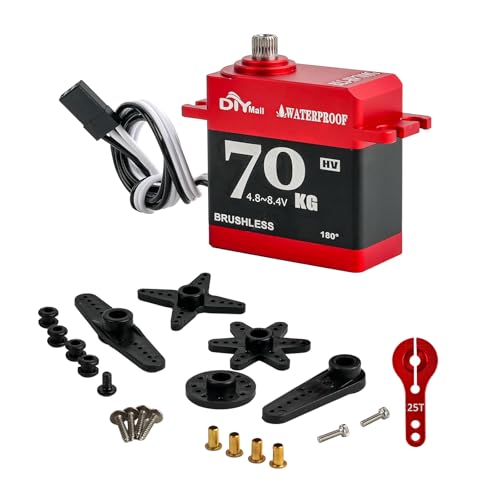

ItemName : DIYmall 70kg Digital Servo Waterproof High Torque Brushless Motor Steel Gear Servo with 25T Metal Horn for 1/8 1/10 RC Car/Robot/Boat/Plane (180 Degree)
ItemPackageDimensions_Height : 10.4 centimeters
ItemPackageDimensions_Length : 3.2 centimeters
ItemPackageDimensions_Width : 10.1 centimeters
ItemTypeKeyword : hobby-rc-vehicle-servos
Manufacturer : DIYmall
ManufacturerMinimumAge : 216
Material : Metal
ModelName : BLS-HV70MG
ModelNumber : 7452
NumberOfBoxes : 1
NumberOfItems : 1
OperationMode : Manual
PartNumber : BLS-HV70MG
Pattern : Solid
PowerSourceType : battery
ProductDescription : 70kg Digital Servo

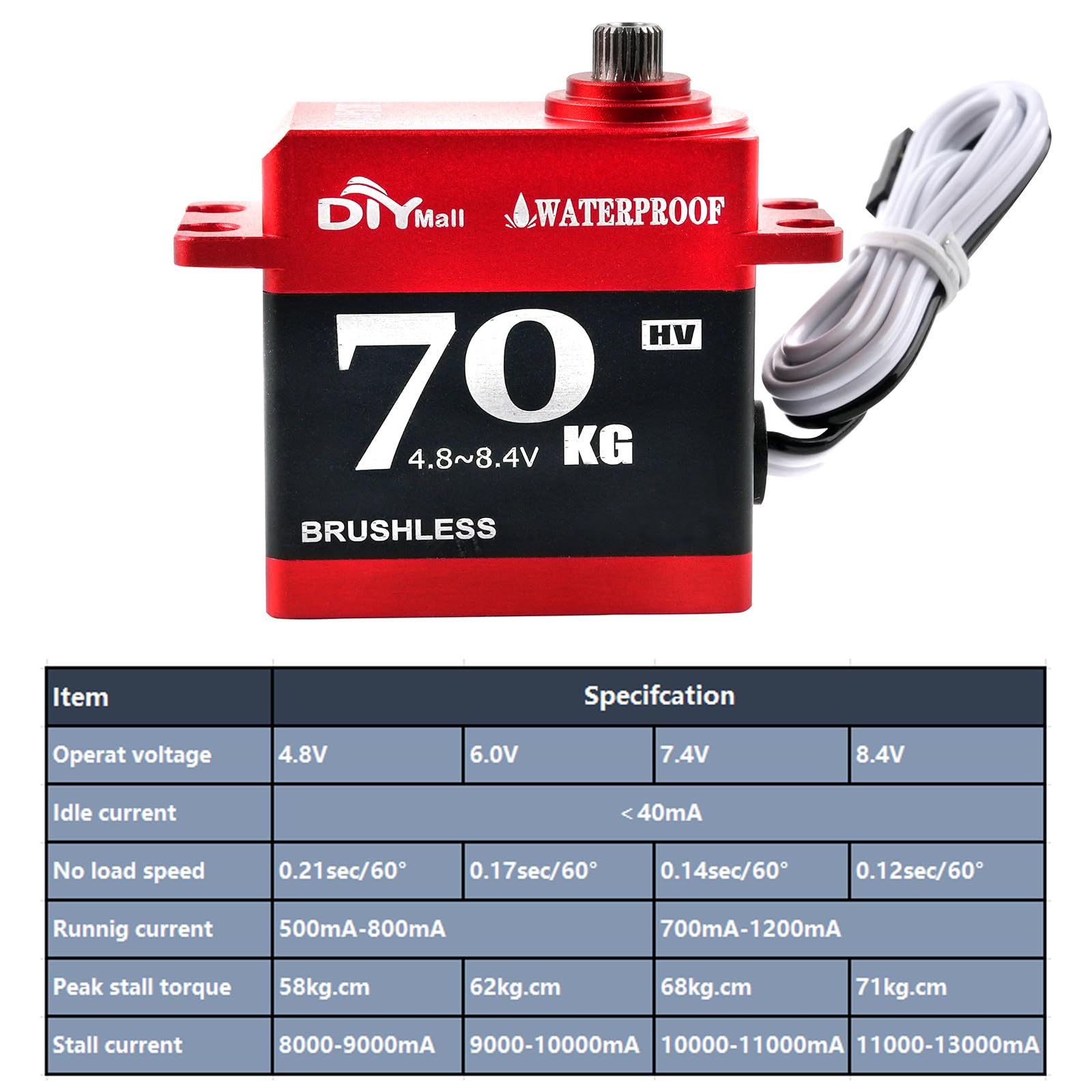

Specification:
Model: BLS-HV70MG
Main Material: Metal, Stainless Steel
Size: 40.0*20.5*39.8mm
Weight: 87 g
Operating Voltage: 4.8V~8.4Volts
Operating Speed (4.8V): 0.15sec / 60° at no load
Operating Speed (6.0V): 0.14sec / 60° at no load
Operating Speed (7.4V): 0.12sec / 60° at no load
Operating Speed (8.4V): 0.1sec / 60° at no load
Stall Torque (4.8V): 58kg/cm
Stall Torque (6.0V): 62kg/cm
Stall Torque (7.4V): 68kg/cm
Stall Torque (8.4V): 71kg/cm

Pulse Width Range: 500~2500μsec
Neutral Position: 1500μs
Operating Degree: 180° (500~2500μsec)
Dead Band Width: 3μs
Rotation Direction: Counterclockwise (500~2500μs)
Bearing: Double Bearing
Connection Cable: 300 mm
Motor: Brushless Motor
Splash water resistance: IP66

Note:
* There could be a few deviations due to manual measurement or slight color difference owing to photographing condition. Thank you for your understanding.

Package list:
1 x 70kg Digital Servo

ProductSiteLaunchDate : 2025-04-23T06:31:09.555Z
SafetyWarning : No
Size : Small
Style : 180 degree
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
TargetAudienceKeyword : Unisex Adult
TargetGender : unisex
Theme : Vehicle
UnspscCode : 60140000
Voltage : 8.4 volts_of_direct_current
