Cart 2 india

Specification
AgeRangeDescription : Adult
AssemblyInstructions : Remove the servo horn from the installed servo, attach the steering link to the new servo horn, slide the servo horn onto the output shaft and secure it with the main center screw.
AutoPartPosition : center
Brand : DIYmall
BulletPoint : LOSI 1/16 Mini-B 2S 2WD RTR Brushed Buggy-LOS01016
BulletPoint1 : 11KG digital servo motor, coreless motor mini servo programmable for Arduino RC Car
BulletPoint2 : All metal servo, the accessories and connecting wires are not all metal
BulletPoint3 : Operating voltage 4.8V-8.4V, signal voltage 3.0-5.0V; Signal Period: 20ms, Pulse Width: 500～2500usec
BulletPoint4 : Peak stall torque: 6.5kg.cm at 4.8V; 8.5kg.cm at 6.0V; 11.5kg.cm at 7.4V; 13.5kg.cm at 8.4V
BulletPoint5 : Running degree: 180°±3° (when 500～2500usec)
BulletPoint6 : What you will get: 1 piece 11kg digital servo
Color : Black
ControllerType : Remote Control
ControlMethod : remote
CpsiaCautionaryStatement : no_warning_applicable
EducationalObjective : 1
ExternallyAssignedProductIdentifier : 4894538350081
ExternallyAssignedProductIdentifier1 : 605482039571
ExternallyAssignedProductIdentifier2 : 0605482039571
FitType : Universal
GpsrSafetyAttestation : 1

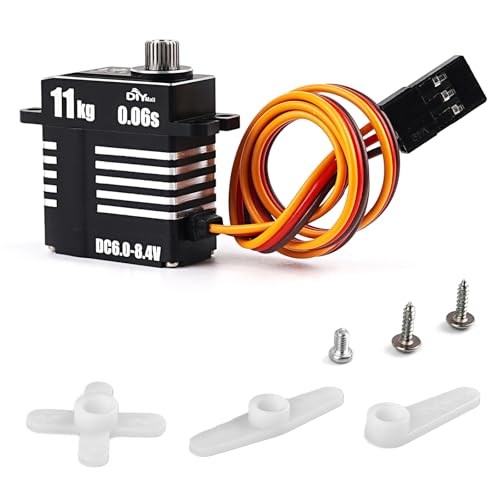

IncludedComponents : 1 piece 11kg digital servo
IncludedComponents1 : Servo Horn - 1pcs ; Stainless Steel Round Head Screw 2.5x10 - 1pcs ;
IncludedComponents2 : Aluminum Collar - 1pcs .
IsAssemblyRequired : 1
ItemDisplayDimensions_Height : 0.5 inches
ItemDisplayDimensions_Length : 4 inches
ItemDisplayDimensions_Width : 4 inches
ItemName : DIYmall High Torque 11KG Mini All-Metal Digital Servo High Pressure Coreless Motor Micro Servo Programmable for RC Car Robot(180 Degree)
ItemPackageDimensions_Height : 10.8 centimeters
ItemPackageDimensions_Length : 1.2 centimeters
ItemPackageDimensions_Width : 10.5 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : hobby-rc-vehicle-servos
Manufacturer : DIYmall
ManufacturerMaximumAge : 110
ManufacturerMinimumAge : 216
Material : Metal
ModelName : H-11
ModelNumber : SPMSP3015
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfPieces : 15
OperationMode : Manual
PackageLevel : unit
PartNumber : H-11
PowerSourceType : Battery Powered
ProductDescription : DIYmall High Torque 11KG Mini All-metal Digital Servo

Apply Environmental Conditon
Storage Temperature Range: -30°C～80°C
Operating Temperature Range: -25°C～70°C

Standard Test Environment
Temperature Range: -25°C～70°C
Humidity Range: 65%±10%

Mechanical Specification
Size: 23.0*26.3*12mm
Weight: 22g±5%
Gear type: 5 Metal
Limit angle: 360°
Bearing: 2BB
Horn gear spline: 25T; Diameter: 5.0mm

Horn type Plastic, POM
Case Aluminum alloy
Connector wire 250mm±5mm
Motor Coreless high speed motor
Splash water resistance IP65

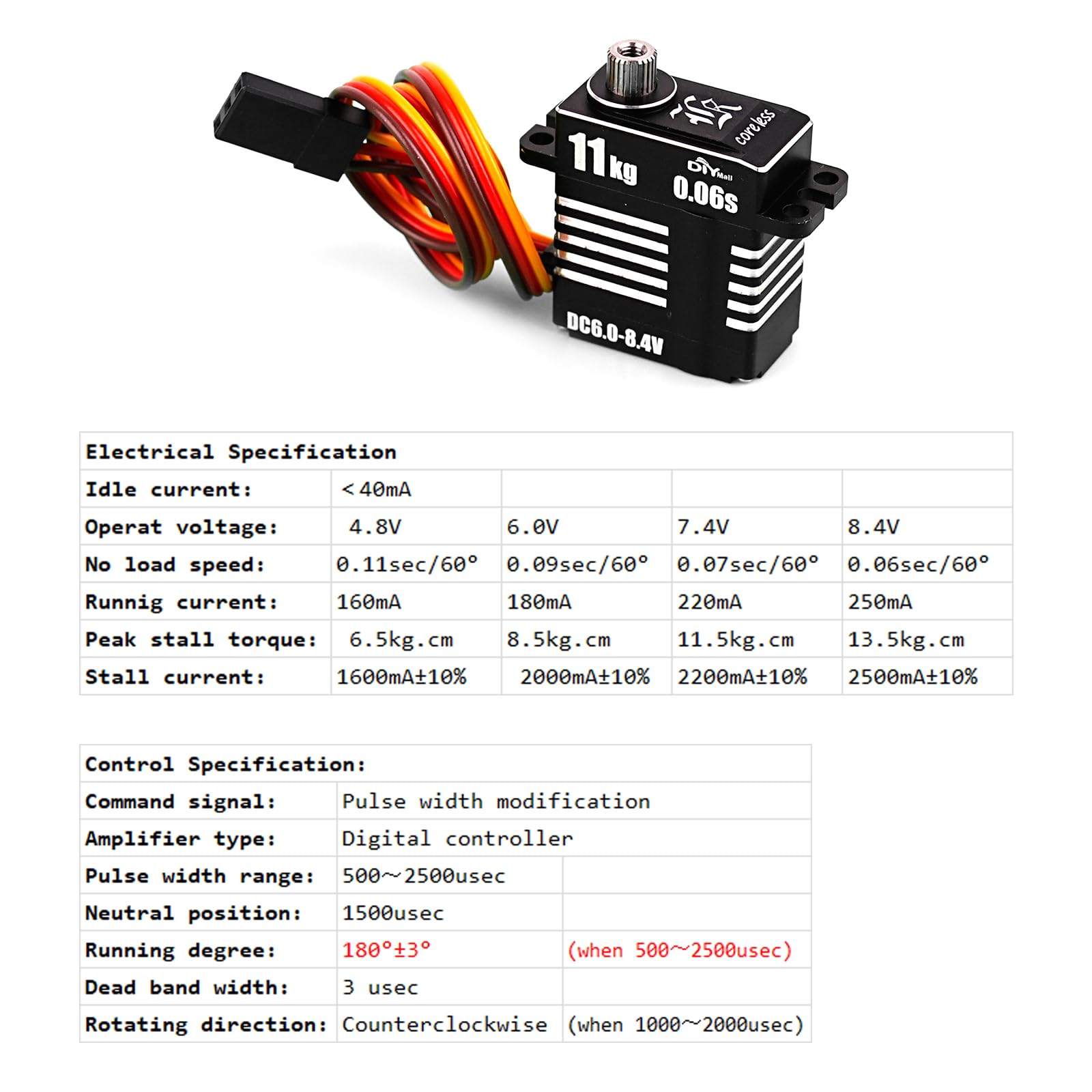

Electrical Specification
Idle current: ＜40mA
Operat voltage: 4.8V 6.0V 7.4V 8.4V
No load speed: 0.11sec/60° 0.09sec/60° 0.07sec/60° 0.06sec/60°
Runnig current: 160mA 180mA 220mA 250mA
Peak stall torque: 6.5kg.cm 8.5kg.cm 11.5kg.cm 13.5kg.cm
Stall current: 1600mA±10% 2000mA±10% 2200mA±10% 2500mA±10%

Control Specification:
Command signal: Pulse width modification
Amplifier type: Digital controller
Pulse width range: 500～2500usec
Neutral position: 1500usec
Running degree: 180°±3°(when 500～2500usec)
Dead band width: 3 usec
Rotating direction: Counterclockwise (when 1000～2000usec)

Package includes:
1 x 11KG All-metal servo
ProductSiteLaunchDate : 2025-02-13T08:15:41.584Z
RequiredProductComplianceCertificate : CPSIA
SafetyWarning : No
ScaleName : 1:10 scale
Size : 6mm / 1/4"
Size1 : Medium
Size2 : Small
SkillLevel : Intermediate
StreetDate : 2022-09-24T00:00:01Z
Style : 180 Degree
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
TargetAudienceKeyword : Unisex Adult
TargetGender : unisex
UnitCount : 1
UnspscCode : 60141000
Voltage : 12 volts
